Please wait a minute...
中国腐蚀与防护学报  2026, Vol. 46 Issue (5): 1613-1618     CSTR: 32134.14.1005.4537.2025.338      DOI: 10.11902/1005.4537.2025.338
  研究报告 本期目录 | 过刊浏览 |
压水堆核电站不锈钢焊缝材料腐蚀疲劳模型
刘夏城1, 邹建荣2, 高良文3, 周龙4,5, 谭季波4, 吴欣强4, 张兹瑜4()
1.三门核电有限公司 台州 317100
2.上海核工程研究设计院股份有限公司 上海 200233
3.国核示范电站有限责任公司 荣成 264300
4.中国科学院金属研究所 中国科学院核用材料与安全评价重点实验室 辽宁省核电材料安全与评价技术重点实验室 沈阳 110016
5.中国科学技术大学材料科学与工程学院 沈阳 110016
Corrosion Fatigue Model for Stainless Steel Weld Seam Used in Pressurized Water Reactor Nuclear Power Plants
LIU Xiacheng1, ZOU Jianrong2, GAO Liangwen3, ZHOU Long4,5, TAN Jibo4, WU Xinqiang4, ZHANG Ziyu4()
1.Sanmen Nuclear Power, Taizhou 317100, China
2.Shanghai Nuclear Engineering Research and Design Institute, Shanghai 200233, China
3.State Nuclear Power Demonstration Plant, Rongcheng 264300, China
4.CAS Key Laboratory of Nuclear Materials and Safety Assessment, Liaoning Key Laboratory for Safety and Assessment Technique of Nuclear Materials, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
5.School of Materials Science and Engineering, University of Science and Technology of China, Shenyang 110016, China
引用本文:

刘夏城, 邹建荣, 高良文, 周龙, 谭季波, 吴欣强, 张兹瑜. 压水堆核电站不锈钢焊缝材料腐蚀疲劳模型[J]. 中国腐蚀与防护学报, 2026, 46(5): 1613-1618.
Xiacheng LIU, Jianrong ZOU, Liangwen GAO, Long ZHOU, Jibo TAN, Xinqiang WU, Ziyu ZHANG. Corrosion Fatigue Model for Stainless Steel Weld Seam Used in Pressurized Water Reactor Nuclear Power Plants[J]. Journal of Chinese Society for Corrosion and protection, 2026, 46(5): 1613-1618.

全文: PDF(1790 KB)   HTML
摘要:

高温高压水环境中的腐蚀疲劳数据是压水堆核电站疲劳设计、运行及寿命评估的重要依据,现有腐蚀疲劳模型主要基于母材数据建立,本文基于不锈钢焊缝材料在空气环境及高温高压水环境中的疲劳寿命数据,建立了基于Langer方程的平均寿命曲线,分析了应变速率及温度对不锈钢焊缝材料腐蚀疲劳寿命的影响规律,将环境促进疲劳效应植入疲劳设计模型中,针对不锈钢焊接材料建立了包含应变速率及温度的腐蚀疲劳模型。

关键词 : 压水堆,  不锈钢焊缝,  高温高压水,  腐蚀疲劳,  模型
Abstract:

Corrosion fatigue data are the basis for fatigue design, operation, and life assessment of nuclear power plants. Based on the corrosion fatigue data of stainless steel weld seam in air and high-temperature pressurized-water, the mean curve of fatigue life in the form of the Langer equation was established. The effect of strain rate and water temperature on the corrosion fatigue life of stainless steel weld seaam was analyzed, whilst, the environmentally assisted fatigue effect was considered in the fatigue model. Then a design fatigue model for stainless steel weld seam that considers strain rate and water temperature was established.

Key words: pressurized water reactor    stainless steel weld seam    high-temperature pressurized water    corrosion fatigue    model
收稿日期: 2025-10-30      32134.14.1005.4537.2025.338
ZTFLH:  TG174
基金资助:中国科学院战略性先导科技专项(XDA0410000);中核集团青年英才项目及中核集团领创科研项目
通讯作者: 张兹瑜,E-mail:zyzhang14b@imr.ac.cn,研究方向为核电材料环境损伤
Corresponding author: ZHANG Ziyu, E-mail: zyzhang14b@imr.ac.cn
作者简介: 刘夏城,男,1985年生,本科,高级工程师

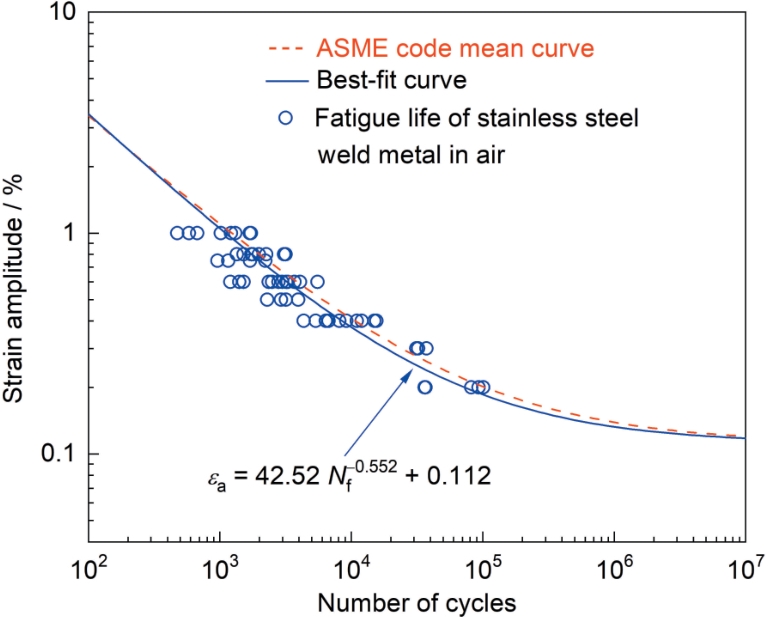

图1  不锈钢焊缝材料空气环境疲劳数据及最佳拟合方程[6,12,21,37,38]

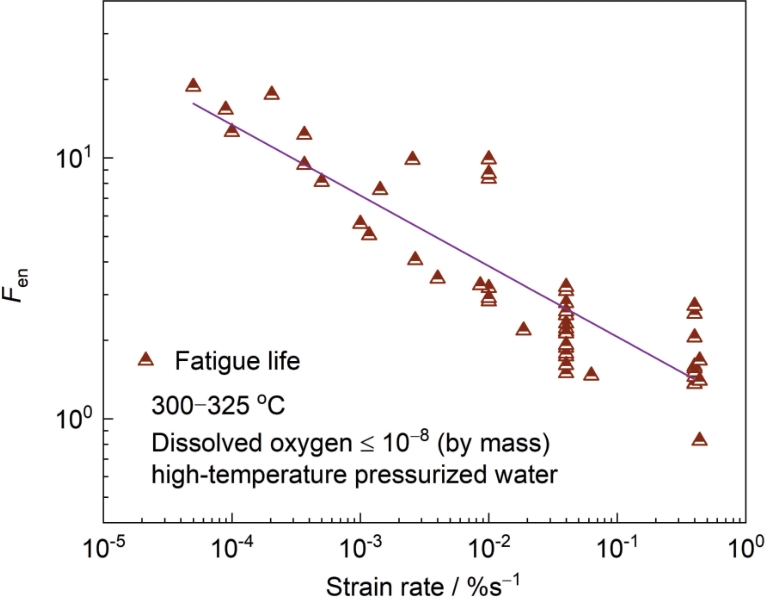

图2  应变速率与Fen的关系[6,12,21]

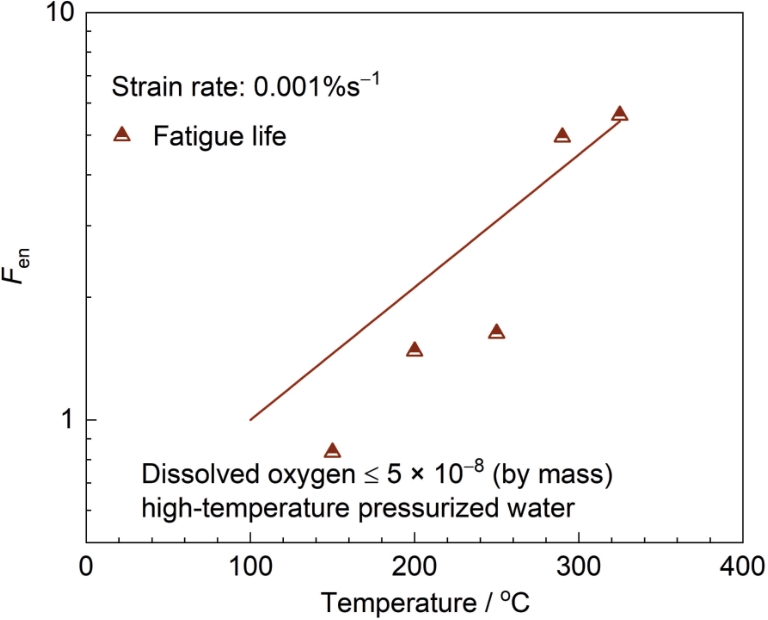

图3  温度与Fen的关系

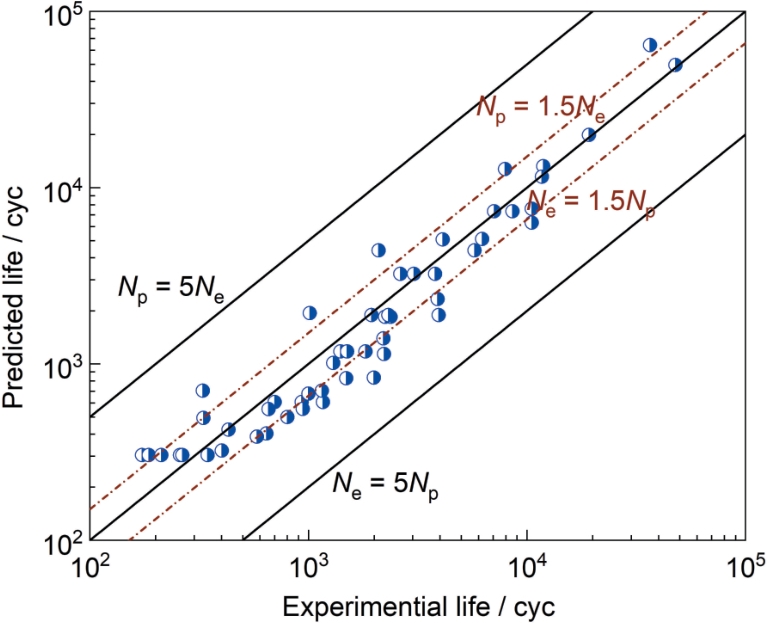

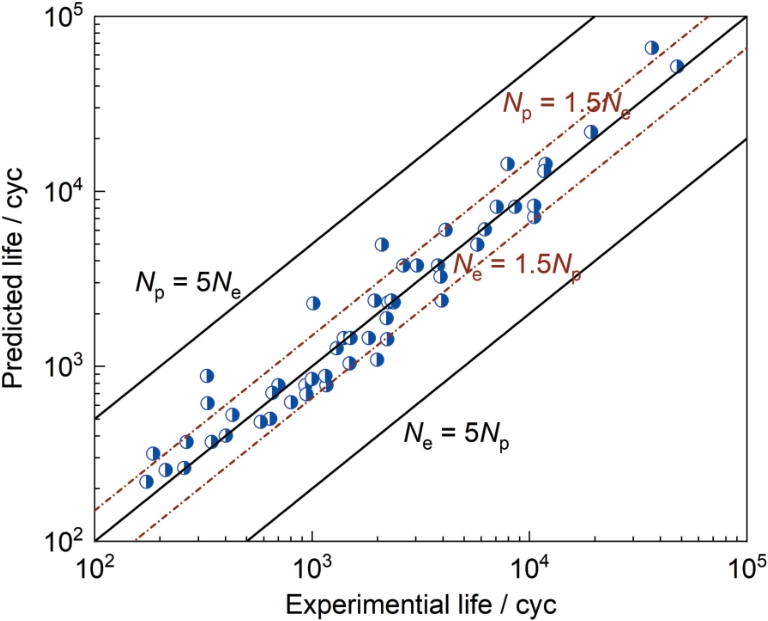

图4  采用本文建立模型获得的预测寿命与实验寿命对比

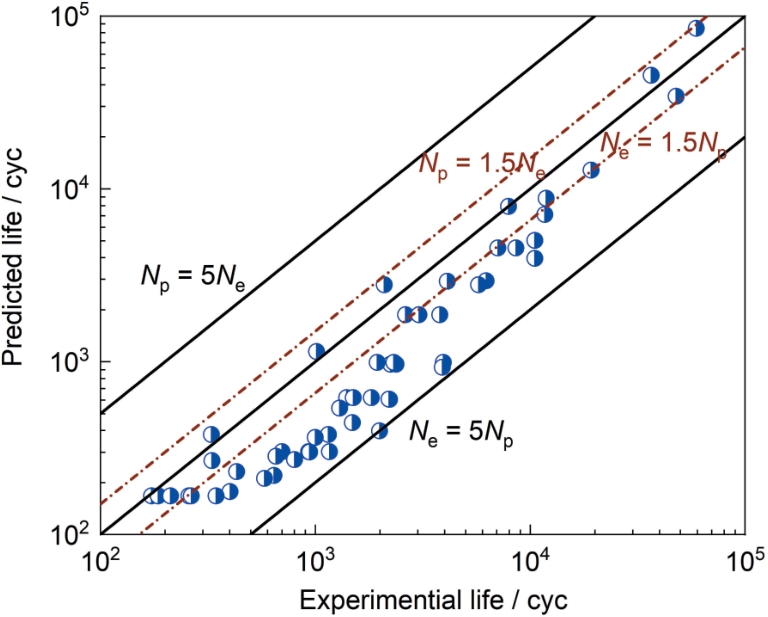

图5  采用ANL模型获得的高温高压水环境预测寿命与实际寿命的对比
图6  采用JSME模型获得的高温高压水环境预测寿命与实际寿命的对比
[1] Tan J B, Wang X, Wu X Q, et al. Corrosion fatigue behavior of 316LN stainless steel hollow specimen in high-temperature pressurized water [J]. Acta Metall. Sin., 2021, 57: 309
doi: 10.11900/0412.1961.2020.00134
[1] 谭季波, 王 翔, 吴欣强 等. 316LN不锈钢管状试样高温高压水的腐蚀疲劳行为 [J]. 金属学报, 2021, 57: 309
doi: 10.11900/0412.1961.2020.00134
[2] Wu X Q, Tan J B, Xu S, et al. Corrosion fatigue mechanism of nuclear-grade low alloy steel in high temperature pressurized water and its environmental fatigue design model [J]. Acta Metall. Sin., 2015, 51: 298
doi: 10.11900/0412.1961.2014.00421
[2] 吴欣强, 谭季波, 徐 松 等. 核级低合金钢高温水腐蚀疲劳机制及环境疲劳设计模型 [J]. 金属学报, 2015, 51: 298
doi: 10.11900/0412.1961.2014.00421
[3] Tan J B. Corrosion fatigue behavior of nuclear-grade austenitic alloys in high temperature and high pressure water [D]. Hefei: University of Science and Technology of China, 2015
[3] 谭季波. 核级奥氏体合金高温高压水腐蚀疲劳行为研究 [D]. 合肥: 中国科学技术大学, 2015
[4] Hou B B, Meng F S. Welding and quality control of main pipelines of HPR1000 [J]. Weld. Technol., 2019, 48(suppl.2) : 126
[4] 侯兵兵, 孟凡森. 华龙一号主管道焊接及质量控制 [J]. 焊接技术, 2019, 48(): 126
[5] Yu M D, Zhang L P, Shao X J, et al. Numerical simulation study on segmented welding deformation of main pipe of pressure vessel [J]. Nucl. Power Eng., 2022, 43(suppl.2) : 165
[5] 庾明达, 张丽屏, 邵雪娇 等. 压力容器主管道分段焊接变形的数值模拟研究 [J]. 核动力工程, 2022, 43(): 165
[6] Wang Y M, Xiao Q S, Xu Z, et al. Study on high temperature and low-cycle fatigue performance of 308l weld metal at safety end joint for nuclear power [J]. Press. Vess. Technol., 2020, 37(5): 1
[6] 王仪美, 肖青山, 徐 柱 等. 核电用接管安全端308L焊缝金属高温低周疲劳性能研究 [J]. 压力容器, 2020, 37(5): 1
[7] Wang Y M, Zhang F, Tang Y, et al. Effect of high temperature and high pressure water environment on fatigue life of 308L dissimilar weld metal [J]. Press. Vess. Technol., 2020, 37(12): 15
[7] 王仪美, 张 飞, 唐 毅 等. 高温高压水环境对核308L异种焊缝金属疲劳寿命影响的研究 [J]. 压力容器, 2020, 37(12): 15
[8] Brooks J A, West A J, Thompson A W. Effect of weld composition and microstructure on hydrogen assisted fracture of austenitic stainless steels [J]. Metall. Trans., 1983, 14A: 75
[9] Luppo M I, Hazarabedian A, Ovejero-García J. Effects of delta ferrite on hydrogen embrittlement of austenitic stainless steel welds [J]. Corros. Sci., 1999, 41: 87
doi: 10.1016/S0010-938X(98)00083-3
[10] Huang J Y, Liu R F, Chiang M F, et al. Corrosion fatigue behavior of dissimilar metal weldments under nominal constant ΔK loading mode in a simulated BWR coolant environment [J]. Corros. Sci., 2011, 53: 2289
doi: 10.1016/j.corsci.2011.03.013
[11] Gao J, Tan J B, Zhang Z Y, et al. Effects of welding columnar grain orientation and strain rate on corrosion fatigue behavior of Alloy 52/52M weld metal in high-temperature water [J]. Corros. Sci., 2021, 180: 109196
doi: 10.1016/j.corsci.2020.109196
[12] Gao J, Zhang Z Y, Tan J B, et al. Environmentally assisted fatigue behavior of 308L weld metal in borated and lithiated high-temperature water [J]. J. Nucl. Mater., 2020, 539: 152365
doi: 10.1016/j.jnucmat.2020.152365
[13] Ming H L, Zhang Z M, Wang J Q, et al. Microstructure of a domestically fabricated dissimilar metal weld joint (SA508-52M-309L-CF8A) in nuclear power plant [J]. Mater. Charact., 2019, 148: 100
doi: 10.1016/j.matchar.2018.12.011
[14] Gao J, Tan J B, Jiao M, et al. Role of welding residual strain and ductility dip cracking on corrosion fatigue behavior of Alloy 52/52M dissimilar metal weld in borated and lithiated high-temperature water [J]. J. Mater. Sci. Technol., 2020, 42: 163
doi: 10.1016/j.jmst.2019.10.012
[15] Dong L J, Peng Q J, Han E H, et al. Stress corrosion cracking in the heat affected zone of a stainless steel 308L-316L weld joint in primary water [J]. Corros. Sci., 2016, 107: 172
doi: 10.1016/j.corsci.2016.02.030
[16] ASME boiler and pressure vessel code section XI [S]. ASME BPVC. XI, 2015
[17] RCC-M design and construction rules for mechanical components of PWR nuclear islands, section I, subsection B class 1 [S]. Paris AFCEN, 2007
[18] Wu X Q, Xu S, Han E-H, et al. Corrosion fatigue of nuclear-grade stainless steel in high temperature water and its environmental fatigue design model [J]. Acta Metall. Sin., 2011, 47: 790
[18] 吴欣强, 徐 松, 韩恩厚 等. 核级不锈钢高温水腐蚀疲劳机制及环境疲劳设计模型 [J]. 金属学报, 2011, 47: 790
doi: 10.3724/SP.J.1037.2011.00162
[19] Tan J B, Zhang Z Y, Zheng H, et al. Corrosion fatigue model of austenitic stainless steels used in pressurized water reactor nuclear power plants [J]. J. Nucl. Mater., 2020, 541: 152407
doi: 10.1016/j.jnucmat.2020.152407
[20] U. S. Nuclear Regulatory Commission (NRC) Regulatory Guide 1, 207, 2007. Guidelines for evaluating fatigue analyses incorporating the reduction of metal components due to the effect of the light-water reactor environme [R]. Washington: U.S. Nuclear Regulatory Commission, 2007
[21] Chopra O K, Shack W J. Effect of LWR coolant environments on the fatigue life of reactor materials [R]. Washington: U.S. Nuclear Regulatory Commission, 2006
[22] Environmental fatigue evaluation method for nuclear power plants [R]. Nuclear Energy System Safety Division, Japan Nuclear Energy Safety Organization, 2011
[23] Gao J, Zhang Z Y, Tan J B, et al. Differences of corrosion fatigue behaviors among 316LN base metal, 316LN heat-affected zone and 308L weld metal in a safe-end weld joint in borated and lithiated high-temperature water [J]. Int. J. Fatigue, 2021, 148: 106223
doi: 10.1016/j.ijfatigue.2021.106223
[24] Ma Y J, Zhang Z Y, Zhang X, et al. Effects of strain rate on low-cycle fatigue crack growth behavior of 316LN weld metal in high-temperature pressurized water [J]. Corros. Sci., 2022, 199: 110169
doi: 10.1016/j.corsci.2022.110169
[25] Dong L J, Han E H, Peng Q J, et al. Environmentally assisted crack growth in 308L stainless steel weld metal in simulated primary water [J]. Corros. Sci., 2017, 117: 1
doi: 10.1016/j.corsci.2016.12.011
[26] Du D H, Wang J M, Chen K, et al. Environmentally assisted cracking of forged 316LN stainless steel and its weld in high temperature water [J]. Corros. Sci., 2019, 147: 69
doi: 10.1016/j.corsci.2018.10.032
[27] Lu Z P, Shoji T, Takeda Y, et al. Effects of loading mode and water chemistry on stress corrosion crack growth behavior of 316L HAZ and weld metal materials in high temperature pure water [J]. Corros. Sci., 2008, 50: 625
doi: 10.1016/j.corsci.2007.08.021
[28] Edwards D J, Thomas L E, Asano K, et al. Microstructure, microchemistry and stress corrosion crack characteristics in a BWR 316L SS core shroud weld [A]. Proceedings of the 13th Conference on Environmental Degradation of Materials in Nuclear Power Systems-Water Reactors [C]. Whistler, 2007
[29] Zhang Z Y, Tan J B, Wu X Q, et al. Corrosion fatigue crack growth behavior of 316LN stainless steel in high-temperature pressurized water [J]. Nucl. Eng. Technol., 2021, 53: 2977
doi: 10.1016/j.net.2021.03.016
[30] Zhang Z Y, Tan J B, Wu X Q, et al. Synergistic effect of mechanical and environmental damages of 316LN stainless steel under different fatigue strain amplitudes in high-temperature pressurized water [J]. Mater. Sci. Eng., 2019, 743A: 243
[31] Li W P, Luo K J, Wang H S, et al. Effect of precipitation on stress corrosion cracking initiation of nickel based 718 alloy in high temperature and high pressure water [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 947
[31] 李维鹏, 罗坤杰, 王惠生 等. 沉淀相对镍基718合金高温高压水环境应力腐蚀裂纹萌生行为影响研究 [J]. 中国腐蚀与防护学报, 2025, 45: 947
doi: 10.11902/1005.4537.2024.319
[32] Li S P, Dang Y, Hong X F, et al. Effect of water chemistry on corrosion behavior of nickel-based alloy 690 in high temperature high pressure water [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 1035
[32] 李顺平, 党 莹, 洪晓峰 等. 水化学对690镍基合金高温高压水腐蚀行为的影响 [J]. 中国腐蚀与防护学报, 2025, 45: 1035
doi: 10.11902/1005.4537.2024.414
[33] Bai Z Q, Nong J, Wei S C, et al. Effect of pre-charging hydrogen on corrosion behavior of Ni-Cr alloy in high temperature and high pressure water [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 338
[33] 白钲清, 农 靖, 韦世宸 等. 预充氢对Ni-Cr合金在高温高压水中腐蚀行为影响 [J]. 中国腐蚀与防护学报, 2025, 45: 338
doi: 10.11902/1005.4537.2024.274
[34] Peng L Y, Wu X Q, Zhang Z Y, et al. Review on relationship between hot functional test water chemistry and corrosion behavior of related component materials in pressurized water reactor nuclear power plants [J]. J. Chin. Soc. Corros. Prot., 2024, 44: 529
[34] 彭立园, 吴欣强, 张兹瑜 等. 压水堆核电厂热态功能试验水化学与设备材料腐蚀关系的研究进展 [J]. 中国腐蚀与防护学报, 2024, 44: 529
doi: 10.11902/1005.4537.2023.180
[35] Li C, Wang Q T, Yang C G, et al. Corrosion behavior of 904L super-austenitic stainless steel in simulated primary water in nuclear power plants [J]. J. Chin. Soc. Corros. Prot., 2024, 44: 716
[35] 李 禅, 王庆田, 杨承刚 等. 904L超级奥氏体不锈钢在模拟核电一回路环境中的腐蚀行为研究 [J]. 中国腐蚀与防护学报, 2024, 44: 716
[36] Zhang Z Y, Tan J B, Wu X Q, et al. Effects of temperature on corrosion fatigue behavior of 316LN stainless steel in high-temperature pressurized water [J]. Corros. Sci., 2019, 146: 80
doi: 10.1016/j.corsci.2018.10.023
[37] Kim D W, Han C H, Ryu W S. Low cycle fatigue properties of 316LN stainless steel welded by GTAW in nitrogen added environment [J]. Key Eng. Mater., 2007, 345-346: 275
doi: 10.4028/www.scientific.net/KEM.345-346
[38] Li Y J, Yuan Y T, Wang D X, et al. Low cycle fatigue behavior of wire arc additive manufactured and solution annealed 308 L stainless steel [J]. Addit. Manuf., 2022, 52: 102688
[1] 雍兴跃, 董晓梅, 高新华, 李卓玄, 陈燕飞, 纪灏天. 电化学阻抗谱在有机涂层研究中的应用[J]. 中国腐蚀与防护学报, 2026, 46(4): 945-961.
[2] 赵梓恒, 李波, 杨臻, 钱旺, 于浩, 张昊, 易盼, 陈俊航, 尹程辉, 肖葵. 海南滨海大气环境热浸镀锌钢室内外试验相关性分析[J]. 中国腐蚀与防护学报, 2026, 46(4): 1129-1138.
[3] 兰博韬, 吴斌, 明洪亮, 王俭秋, 韩恩厚. 选区激光熔化奥氏体不锈钢高温高压水中应力腐蚀开裂行为研究进展[J]. 中国腐蚀与防护学报, 2026, 46(1): 1-14.
[4] 郭玉杰, 李艳辉, 夏大海, 胡文彬. 腐蚀电化学阻抗谱的数据解析与物理模型研究进展[J]. 中国腐蚀与防护学报, 2025, 45(5): 1143-1160.
[5] 史轩铭, 谭季波, 张兹瑜, 吴欣强. 铅冷快堆候选结构材料液态铅铋共晶环境中疲劳行为研究进展[J]. 中国腐蚀与防护学报, 2025, 45(5): 1187-1195.
[6] 夏大海, 潘成成, 郭玉杰, 胡文彬, TRIBOLLET Bernard. EIS研究7050铝合金在NaCl溶液空蚀作用下的界面状态与腐蚀机制[J]. 中国腐蚀与防护学报, 2025, 45(5): 1196-1204.
[7] 李顺平, 党莹, 洪晓峰, 宁方强. 水化学对690镍基合金高温高压水腐蚀行为的影响[J]. 中国腐蚀与防护学报, 2025, 45(4): 1035-1040.
[8] 彭立园, 谢敬礼, 曹胜飞, 谭季波, 吴欣强, 张兹瑜. 日本高放废物处置容器腐蚀厚度设计研究进展[J]. 中国腐蚀与防护学报, 2025, 45(3): 563-576.
[9] 戚鹏, 王鹏, 曾艳, 张盾. 微生物腐蚀的检测方法和预测模型[J]. 中国腐蚀与防护学报, 2025, 45(3): 602-610.
[10] 郭姿含, 樊建春, 杨云朋, 张军, 代四维. 动载作用下高压三通管汇的冲蚀特性研究[J]. 中国腐蚀与防护学报, 2025, 45(3): 698-708.
[11] 肖琦琨, 马军, 郭凯, 熊新, 袁浩然. 基于DDPM-RSM的浆体管道冲蚀磨损数值模拟研究[J]. 中国腐蚀与防护学报, 2025, 45(3): 709-719.
[12] 张鼎纹, 张冀兰, 于义军, 任科, 丁强, 史慧梅, 杨新辉, 王元伟, 张雪峰, 吴多东, 刘锋, 冯兴宇, 刘朋帅, 匡文军. 华龙一号核电机组主泵化学去污工艺研究[J]. 中国腐蚀与防护学报, 2025, 45(3): 739-746.
[13] 白钲清, 农靖, 韦世宸, 徐健. 预充氢对Ni-Cr合金在高温高压水中腐蚀行为影响[J]. 中国腐蚀与防护学报, 2025, 45(2): 338-346.
[14] 崔德春, 熊亮, 于邦廷, 吴浩志, 董绍华, 陈林. 含腐蚀缺陷氢气管道局部氢浓度有限元模拟分析[J]. 中国腐蚀与防护学报, 2025, 45(2): 359-370.
[15] 赵连红, 王英芹, 刘元海, 何卫平, 王浩伟. 四种飞机起落架用钢在模拟海水中的腐蚀行为研究[J]. 中国腐蚀与防护学报, 2024, 44(5): 1263-1273.
