在3.5%NaCl溶液中压力变化对Ti80合金应力腐蚀行为的影响

贾梦瑶¹, 张伟强¹, 王媛², 谭季波²(

), 邱建科², 郝延天¹, 吴欣强²

^1.沈阳理工大学材料科学与工程学院沈阳 110159
^2.中国科学院金属研究所沈阳 110016

Effect of Pressure Variation on Stress Corrosion Behavior of Ti80 Alloy in 3.5%NaCl Solution

JIA Mengyao¹, ZHANG Weiqiang¹, WANG Yuan², TAN Jibo²(

), QIU Jianke², HAO Yantian¹, WU Xinqiang²

^1.School of Materials Science and Engineering, Shenyang Ligong University, Shenyang 110159, China
^2.Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China

引用本文:

贾梦瑶, 张伟强, 王媛, 谭季波, 邱建科, 郝延天, 吴欣强. 在3.5%NaCl溶液中压力变化对Ti80合金应力腐蚀行为的影响[J]. 中国腐蚀与防护学报, 2026, 46(5): 1508-1516.
Mengyao JIA, Weiqiang ZHANG, Yuan WANG, Jibo TAN, Jianke QIU, Yantian HAO, Xinqiang WU. Effect of Pressure Variation on Stress Corrosion Behavior of Ti80 Alloy in 3.5%NaCl Solution[J]. Journal of Chinese Society for Corrosion and protection, 2026, 46(5): 1508-1516.

全文: PDF(21761 KB) HTML

摘要:

采用楔形张开加载(WOL)试样,系统研究了0.1~15 MPa压力下Ti80合金在3.5%NaCl溶液中的应力腐蚀开裂(SCC)行为，重点分析了压力对SCC开裂门槛值(K_ISCC)及断裂机理的影响。结果表明，在0.1~10 MPa压力范围内，Ti80合金在3.5%NaCl溶液中的K_ISCC值介于50.36~53.51 MPa·m^1/2之间；当压力升至15 MPa时，K_ISCC平均值下降至47.79 MPa·m^1/2，SCC敏感性增强。断口主要由疲劳裂纹预制区、SCC开裂区和撕裂区组成，其中SCC开裂区呈现粗糙多孔形貌，表现为准解理开裂与局部溶解特征，且随压力升高脆性增强。EBSD分析进一步表明，裂纹扩展以穿晶断裂为主，伴随局部晶间腐蚀与分枝现象；高压下裂纹尖端塑性区缩小，局部应变集中加剧，表明了氢增强局部塑性(HELP)机制的活化。综上，Ti80合金在3.5%NaCl溶液中的SCC属于“阳极溶解”与“氢致开裂”的复合机制，静水压力通过促进Cl^-渗透及氢在局部富集，提高了材料的SCC敏感性。

关键词 ： Ti80合金, 静水压力, 应力腐蚀开裂, 腐蚀机理

Abstract：

The stress corrosion cracking behavior of Ti80 Ti-alloy in a 3.5%NaCl solution under pressures within a range from 0.1 to 15 MPa was systematically investigated using wedge-opening loading specimens, with emphasis on the influence of pressure on the SCC threshold (K_ISCC) and fracture mechanism. The results indicate that within the pressure range of 0.1-10 MPa, the K_ISCC values of Ti80 Ti-alloy in the 3.5%NaCl solution ranged between 50.36 and 53.51 MPa·m^1/2. When the pressure increased to 15 MPa, the average K_ISCC value decreased to 47.79 MPa·m^1/2, indicating the SCC susceptibility was enhanced. The fracture surfaces primarily consisted of a fatigue pre-cracked zone, SCC propagation zone, and tearing zone. The SCC zone exhibited a rough and porous morphology, characterized by typical quasi-cleavage fracture combined with local dissolution features, and the brittle characteristics intensified with the increasing pressure. Electron backscatter diffraction analysis further revealed that the crack propagation was predominantly transgranular, accompanied by local intergranular corrosion and branching phenomena. Under high pressure, the plastic zone at the crack tip was reduced, and local strain concentration became significant, indicating the activation of the hydrogen-enhanced localized plasticity mechanism. Comprehensively, the SCC of Ti80 Ti-alloy in 3.5%NaCl solution follows a combined mechanism of “anodic dissolution” and “hydrogen-induced cracking.” Hydrostatic pressure significantly increases the SCC susceptibility of the Ti-alloy by promoting Cl^- penetration and accelerating hydrogen accumulation.

Key words： Ti80 alloy hydrostatic pressure stress corrosion cracking (SCC) corrosion mechanism

收稿日期: 2025-11-04 32134.14.1005.4537.2025.346

ZTFLH:

TG174.3

基金资助:中国科学院青年创新促进会项目(2022188);辽宁省优秀青年基金(2024JH3/10200020)

通讯作者: 谭季波，E-mail：jbtan10s@imr.ac.cn，研究方向为三代压水堆及四代铅冷快堆结构材料环境相容性

Corresponding author: TAN Jibo, E-mail: jbtan10s@imr.ac.cn

作者简介: 贾梦瑶，女，2000年生，硕士生

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	贾梦瑶
	张伟强
	王媛
	谭季波
	邱建科
	郝延天
	吴欣强
44.8K

链接本文:

https://www.jcscp.org/CN/10.11902/1005.4537.2025.346 或 https://www.jcscp.org/CN/Y2026/V46/I5/1508

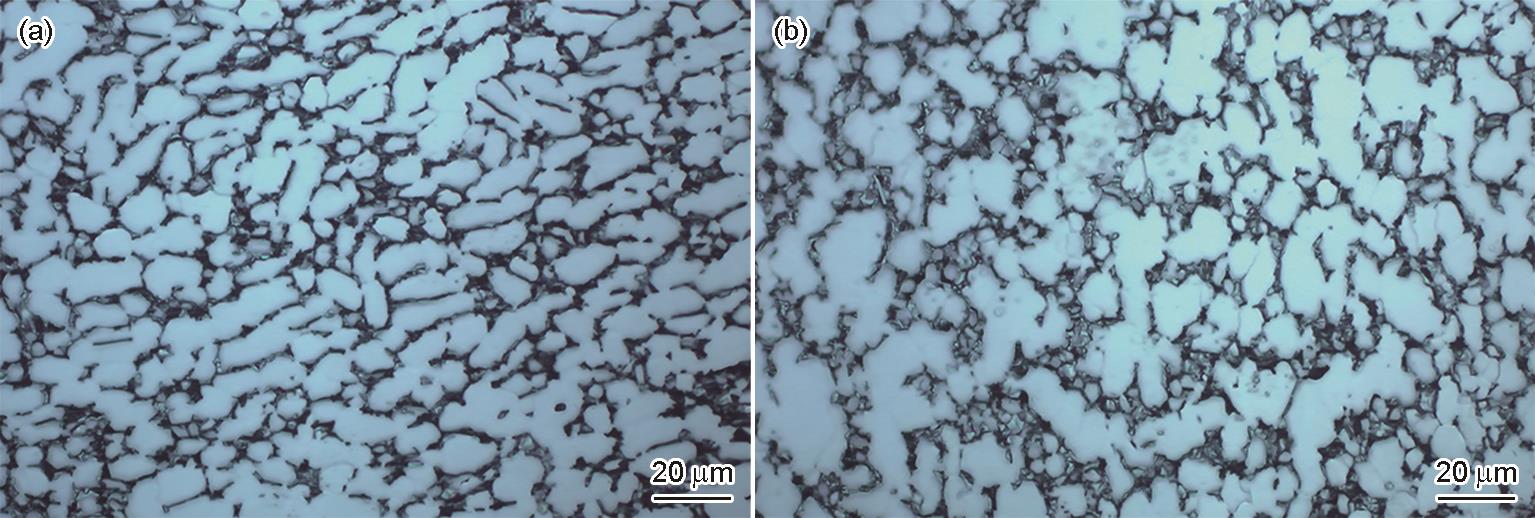

图1 Ti80合金的金相组织

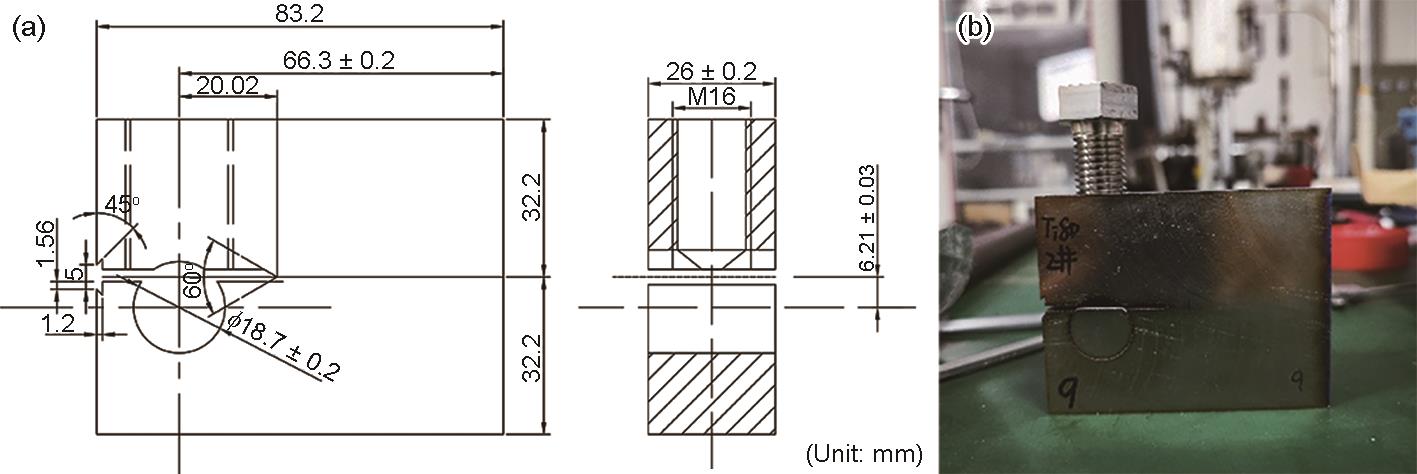

图2 WOL试样的几何示意图及加工后试样照片

表1 Ti80合金裂纹长度及KISCC值计算结果

图3 Ti80合金在不同压力下裂纹扩展长度及扩展速率随时间的变化

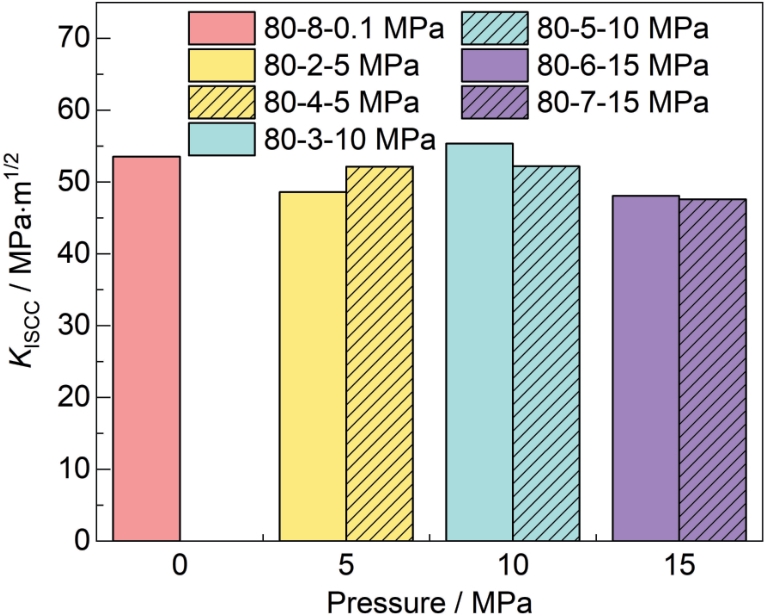

图4 KISCC值随压力变化图

图5 不同压力下Ti80合金恒位移试验后宏观断口形貌

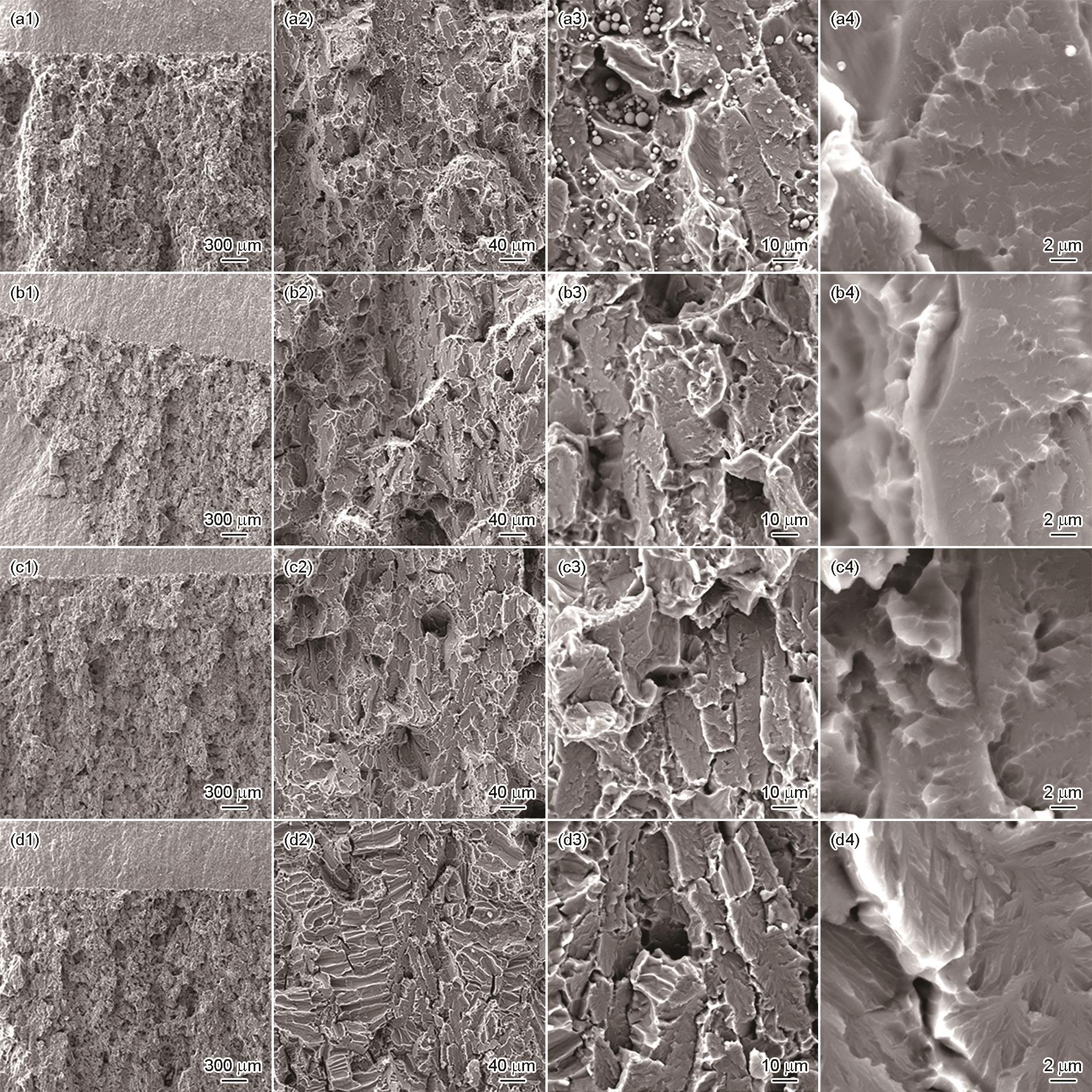

图6 NaCl溶液中不同压力下Ti80试样SCC断口SEM形貌

图7 Ti80合金在3.5%NaCl溶液中的裂纹扩展路径EBSD结果

[1]	Chen J, Wang T X, Zhou W, et al. Domestic and foreign marine titanium alloy and its application [J]. Titanium Ind. Prog., 2015, 32(6): 8
[1]	陈军, 王廷询, 周伟等. 国内外船用钛合金及其应用 [J]. 钛工业进展, 2015, 32(6): 8
[2]	Chu H. Stress corrosion of titanium alloy [J]. J. Univ. Sci. Technol. Beijing, 2002, 24(1): 47
[2]	褚洪. 钛合金的应力腐蚀 [J]. 北京科技大学学报, 2002, 24(1): 47
[3]	Qin Z, Pang X L, Yan Y, et al. Passive film-induced stress and mechanical properties of α-Ti in methanol solution [J]. Corros. Sci., 2014, 78: 287 doi: 10.1016/j.corsci.2013.10.011
[4]	Nan R, Cai J H, Yang J, et al. A review of corrosion resistance of titanium and titanium alloys [J]. Titanium Ind. Prog., 2023, 40(5): 40
[4]	南榕, 蔡建华, 杨健等. 钛及钛合金腐蚀行为研究进展 [J]. 钛工业进展, 2023, 40(5): 40
[5]	Li G R, Chen X P, Zhou F H, et al. Self-powered soft robot in the Mariana Trench [J]. Nature, 2021, 591: 66 doi: 10.1038/s41586-020-03153-z
[6]	Lin J H, Dan Z H, Lu J F, et al. Research status and prospect on marine corrosion of titanium alloys in deep ocean environments [J]. Rare Met. Mater. Eng., 2020, 49: 1090
[6]	林俊辉, 淡振华, 陆嘉飞等. 深海腐蚀环境下钛合金海洋腐蚀的发展现状及展望 [J]. 稀有金属材料与工程, 2020, 49: 1090
[7]	Raja V S, Shoji T. Stress Corrosion Cracking: Theory and Practice [M]. Oxford: Woodhead Publishing Ltd, 2011
[8]	Yang D, Guo J M. Corrosion mechanism of titanium alloys and development of corrosion-resistance titanium alloys [J]. Titanium Ind. Prog., 2011, 28(2): 4
[8]	杨东, 郭金明. 钛合金的腐蚀机理及耐蚀钛合金的发展现状 [J]. 钛工业进展, 2011, 28(2): 4
[9]	Liu P, Wu Y L, Zhong X Y, et al. New insights into stress corrosion cracking mechanism of Alloy 600 in boiling water reactor (BWR) environment [J]. Corros. Sci., 2024, 232: 112008 doi: 10.1016/j.corsci.2024.112008
[10]	Cao S, Zhu S M, Lim C V S, et al. The mechanism of aqueous stress-corrosion cracking of α + β titanium alloys [J]. Corros. Sci., 2017, 125: 29 doi: 10.1016/j.corsci.2017.05.025
[11]	Su T, Huang Y H, Xuan F Z. Stress corrosion cracking growth rate prediction model for nuclear power turbine rotor steel in a simulated environment [J]. J. Mater. Res. Technol., 2023, 23: 830 doi: 10.1016/j.jmrt.2023.01.049
[12]	You W Q. Study on stress corrosion cracking of titanium alloy in deep sea environment [D]. Guangzhou: Guangzhou University, 2025
[12]	游万顷. 深海环境下钛合金TC4的应力腐蚀研究 [D]. 广州: 广州大学, 2025
[13]	Wang H J, Wang J, Peng X, et al. Corrosion behavior of three titanium alloys in 3.5%NaCl solution [J]. J. Chin. Soc. Corros. Prot., 2015, 35: 75
[13]	王海杰, 王佳, 彭欣等. 钛合金在3.5%NaCl溶液中的腐蚀行为 [J]. 中国腐蚀与防护学报, 2015, 35: 75 doi: 10.11902/1005.4537.2013.230
[14]	Orman S, Picton G. The role of hydrogen in the stress corrosion cracking of titanium alloys [J]. Corros. Sci., 1974, 14: 451 doi: 10.1016/0010-938X(74)90005-5
[15]	Liu R, Cui Y, Liu L, et al. A primary study of the effect of hydrostatic pressure on stress corrosion cracking of Ti-6Al-4V alloy in 3.5%NaCl solution [J]. Corros. Sci., 2020, 165: 108402 doi: 10.1016/j.corsci.2019.108402
[16]	Jones R H, Simonen E P. Early stages in the development of stress corrosion cracks [J]. Mater. Sci. Eng., 1994, 176A: 211
[17]	Cao S, Lim C V S, Hinton B, et al. Effects of microtexture and Ti₃Al (α2) precipitates on stress-corrosion cracking properties of a Ti-8Al-1Mo-1V alloy [J]. Corros. Sci., 2017, 116: 22 doi: 10.1016/j.corsci.2016.12.012
[18]	Dawson D B, Pelloux R M. Corrosion fatigue crack growth of titanium alloys in aqueous environments [J]. Metall. Trans., 1974, 5: 723
[19]	Tsai W T, Lin C L, Pan S J. Susceptibility of Ti-6Al-4V alloy to stress corrosion cracking in a Lewis-neutral aluminium chloride-1-ethyl-3-methylimidazolium chloride ionic liquid [J]. Corros. Sci., 2013, 76: 494 doi: 10.1016/j.corsci.2013.07.009
[20]	Ahn S, Jeong D, Kwon Y, et al. Environmental fatigue crack propagation behavior of β-annealed Ti-6Al-4V alloy in NaCl solution under controlled potentials [J]. Int. J. Fatigue, 2018, 111: 186 doi: 10.1016/j.ijfatigue.2018.02.013
[21]	Shukla A K, Balasubramaniam R, Bhargava S. Properties of passive film formed on CP titanium, Ti-6Al-4V and Ti-13.4Al-29Nb alloys in simulated human body conditions [J]. Intermetallics, 2005, 13: 631 doi: 10.1016/j.intermet.2004.10.001
[22]	Liu H C, Fan L, Zhang H B, et al. Research progress of stress corrosion cracking of Ti-alloy in deep sea environments [J]. J. Chin. Soc. Corros. Prot., 2022, 42: 175
[22]	柳皓晨, 范林, 张海兵等. 钛合金深海应力腐蚀研究进展 [J]. 中国腐蚀与防护学报, 2022, 42: 175 doi: 10.11902/1005.4537.2021.050
[23]	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China. Corrosion of metals and alloys—Stress corrosion testing—Part 6: Preparation and use of pre-cracked specimens for tests under constant load or constant displacement [S]. Beijing: Standards Press of China, 2007
[23]	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 金属和合金的腐蚀应力腐蚀试验第6部分: 恒载荷或恒位移下的预裂纹试样的制备和应用 [S]. 北京: 中国标准出版社, 2007
[24]	Zhang H X, Zhang F, Hao F Y, et al. Stress corrosion behavior and mechanism of Ti6321 alloy with different microstructures in stimulated deep-sea environment [J]. Corros. Sci., 2024, 233: 112059 doi: 10.1016/j.corsci.2024.112059
[25]	Hao F Y, Zhang H X, Li X B, et al. Stress corrosion behavior and mechanism of Ti6321 alloy in seawater with different dissolved oxygen concentrations [J]. Mater. Corros., 2025, 76: 164
[26]	Xu W C, Tong X Y, Wang Y Q, et al. Research progress on the influence of the deep-sea environment on the stress corrosion of titanium alloys [J]. Acta Metall. Sin., 2025, 61: 1469 doi: 10.11900/0412.1961.2024.00221
[26]	徐玮辰, 佟向瑜, 王优强等. 深海环境对钛合金应力腐蚀影响的研究进展 [J]. 金属学报, 2025, 61: 1469 doi: 10.11900/0412.1961.2024.00221
[27]	Cai Y, Song Y W, Dong K H, et al. Threshold potential for hydrogen-induced damage of Ti-6Al-4V Alloy under deep-sea environment: A mechanistic insight [J]. Acta Mater., 2026, 304: 121792 doi: 10.1016/j.actamat.2025.121792
[28]	Xu Y L, Zhang X J, Lu X Y, et al. Influences of microstructures and macrozones on the stress corrosion cracking sensitivity of a near alpha titanium alloy [J]. Corros. Sci., 2024, 232: 112015 doi: 10.1016/j.corsci.2024.112015
[29]	Chen W, Li Z Y, Zhang S Y, et al. Effect of α phase content on stress corrosion cracking behavior of Ti-Al-Zr-Mo-Si alloy [J]. Trans. Nonferrous Met. Soc. China, 2020, 30: 2034
[30]	Yang R M, Shen X L, Dong S J. Influence of hydrogen on fatigue crack growth behavior of TC4ELI titanium alloy [J]. Mater. Rep., 2025, 39: 24080102
[30]	杨日明, 申秀丽, 董少静. 氢对TC4ELI钛合金疲劳裂纹扩展行为影响 [J]. 材料导报, 2025, 39: 24080102
[31]	Fang H J, Zhou P, Yu J H, et al. Galvanic corrosion behavior of coupling pairs of Ti80 alloy with various marine metallic materials [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 905
[31]	方焕杰, 周鹏, 郁健浩等. Ti80合金与船用金属的电偶腐蚀行为研究 [J]. 中国腐蚀与防护学报, 2025, 45: 905 doi: 10.11902/1005.4537.2024.232
[32]	Xu Q F, Guo Y, Liu J, et al. Effect of hydrostatic pressure on stress corrosion cracking of cast and forged Ti-6Al-4V alloys [J]. J. Chin. Soc. Corros. Prot., 2026, 46: 1031
[32]	徐秋发, 郭岳, 刘骏等. 静水压力对铸造与锻造Ti-6Al-4V合金应力腐蚀的影响差异研究 [J]. 中国腐蚀与防护学报, 2026, 46: 1031 doi: 10.11902/1005.4537.2025.313
