力学与防腐性能协同增强的聚吡咯改性芳纶纤维<strong>/</strong>环氧复合涂料

doi:10.11902/1005.4537.2025.359

中国腐蚀与防护学报

2026, Vol. 46

Issue (5): 1517-1526 CSTR: 32134.14.1005.4537.2025.359 DOI: 10.11902/1005.4537.2025.359

研究报告

本期目录 | 过刊浏览

力学与防腐性能协同增强的聚吡咯改性芳纶纤维/环氧复合涂料

李晓峰¹, 李艳茹¹, 卢云飞²(

), 张泰华¹, 常雪婷¹, 安燕¹

^1.上海海事大学海洋科学与工程学院上海 201306
^2.武汉第二船舶设计研究所武汉 430064

Polypyrrole-modified Aramid Fiber/Epoxy Composite Coating with Synergistically Enhanced Mechanical and Anti-corrosion Properties

LI Xiaofeng¹, LI Yanru¹, LU Yunfei²(

), ZHANG Taihua¹, CHANG Xueting¹, AN Yan¹

^1.College of Ocean Science and Engineering, Shanghai Maritime University, Shanghai 201306, China
^2.Wuhan Second Ship Design & Research Institute, Wuhan 430064, China

引用本文:

李晓峰, 李艳茹, 卢云飞, 张泰华, 常雪婷, 安燕. 力学与防腐性能协同增强的聚吡咯改性芳纶纤维/环氧复合涂料[J]. 中国腐蚀与防护学报, 2026, 46(5): 1517-1526.
Xiaofeng LI, Yanru LI, Yunfei LU, Taihua ZHANG, Xueting CHANG, Yan AN. Polypyrrole-modified Aramid Fiber/Epoxy Composite Coating with Synergistically Enhanced Mechanical and Anti-corrosion Properties[J]. Journal of Chinese Society for Corrosion and protection, 2026, 46(5): 1517-1526.

全文: PDF(11637 KB) HTML

摘要:

采用原位聚合法在芳纶纤维(AF)表面沉积了聚吡咯(PPy)包覆层，成功制备出PPy/AF复合纤维。通过调控该复合纤维在环氧树脂(EP)中的质量分数，制备了一系列PPy/AF/EP复合涂层。利用扫描电子显微镜和Fourier变换红外光谱仪等对复合纤维的形貌与化学结构进行了表征。通过拉伸测试与电化学测试，系统研究了复合材料的力学性能及在3.5%NaCl溶液中的腐蚀防护行为。结果表明，当改性纤维的添加量为2.0%时，复合涂层的拉伸强度由纯环氧树脂涂层的39.6 MPa提高至55.68 MPa，增幅达40.61%。在3.5%NaCl溶液中浸泡168 h后，复合涂层的低频阻抗模值(|Z|_{0.01 Hz})仍保持在6.3 × 10⁹ Ω·cm²，较纯环氧树脂涂层提升了约4个数量级。上述结果证实，PPy改性纤维的引入可同时增强环氧涂层的力学性能与耐腐蚀性能，在多功能防护涂层领域展现出良好的应用潜力。

关键词 ：芳纶纤维, 聚吡咯, 力学性能, 防腐蚀

Abstract：

Polypyrrole (PPy) particulates was deposited on the surface of aramid fibers (AF) by in-situ polymerization method to obtain PPy covered AF composite fibers (PPy/AF). Then a series of PPy/AF/EP composite coatings were then fabricated by adjusting the mass fraction of the modified fibers in the epoxy resin. The morphology and chemical structure of the composite fibers were characterized by scanning electron microscopy (SEM) and Fourier transform infrared spectroscopy. The mechanical properties and protectiveness the coatings in 3.5%NaCl solution were systematically investigated via tensile tests and electrochemical measurements. The results showed that for composite coating with modified fibers of 2.0%PPy0.5/AF, the tensile strength of the composite coating increased from 39.6 MPa to 55.68 MPa, corresponding to a 40.61% enhancement. After immersion in 3.5%NaCl solution for 168 h, the low-frequency impedance modulus (|Z|_{0.01 Hz}) of the composite coating remained at 6.3 × 10⁹ Ω·cm², which was approximately four orders of magnitude higher than that of the pure epoxy coating. The above results indicate that the incorporation of Ppy-modified aramid fibers can simultaneously enhance the mechanical properties and corrosion resistance of the epoxy coatings, demonstrating great potential for applications in the field of multifunctional protective coatings.

Key words： aramid fiber polypyrrole mechanical properties anticorrosion

收稿日期: 2025-11-24 32134.14.1005.4537.2025.359

ZTFLH:

TG174

基金资助:上海市深远海洋装备材料工程技术中心(19DZ2253100)

通讯作者: 卢云飞，E-mail：yflu@alum.imr.ac.cn，研究方向为船舶防腐材料与涂层技术

Corresponding author: LU Yunfei, E-mail: yflu@alum.imr.ac.cn

作者简介: 李晓峰，男，1971年生，博士，教授

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	李晓峰
	李艳茹
	卢云飞
	张泰华
	常雪婷
	安燕
44.8K

链接本文:

https://www.jcscp.org/CN/10.11902/1005.4537.2025.359 或 https://www.jcscp.org/CN/Y2026/V46/I5/1517

图1 AF, PPy0.3/AF, PPy0.5/AF和PPy1/AF的表面形貌图

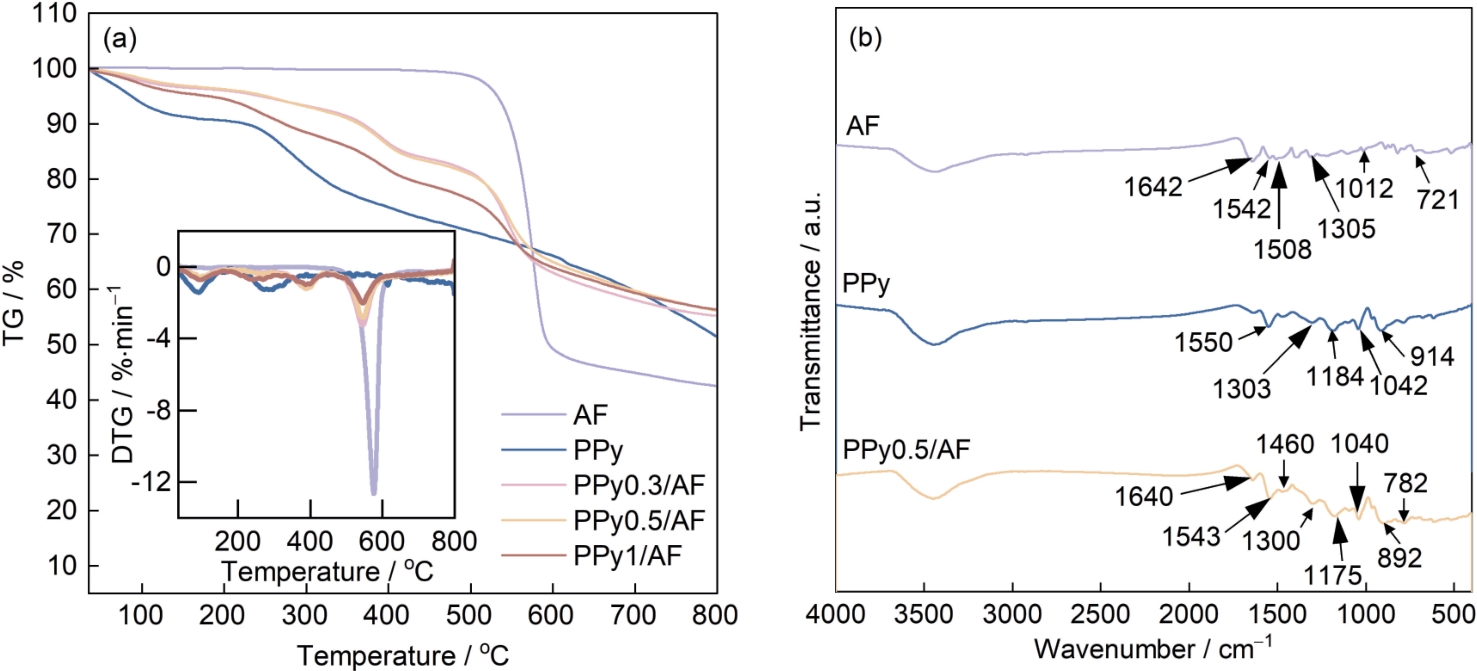

图2 芳纶纤维改性前后的热重曲线和微分热重曲线及Fourier变换红外光谱

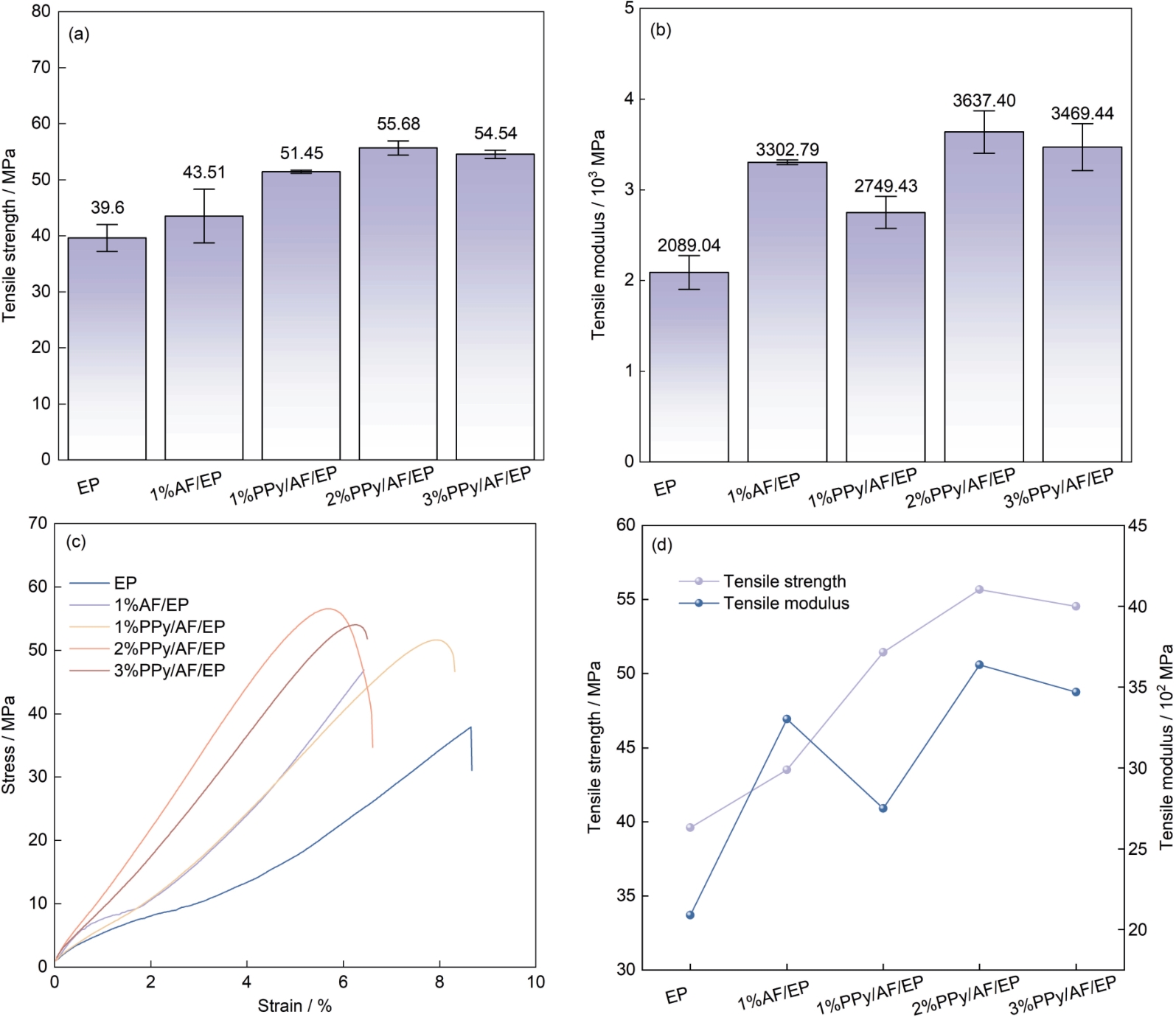

图3 涂层的拉伸强度，拉伸模量，拉伸强度与拉伸模量的折线图与应力-应变曲线

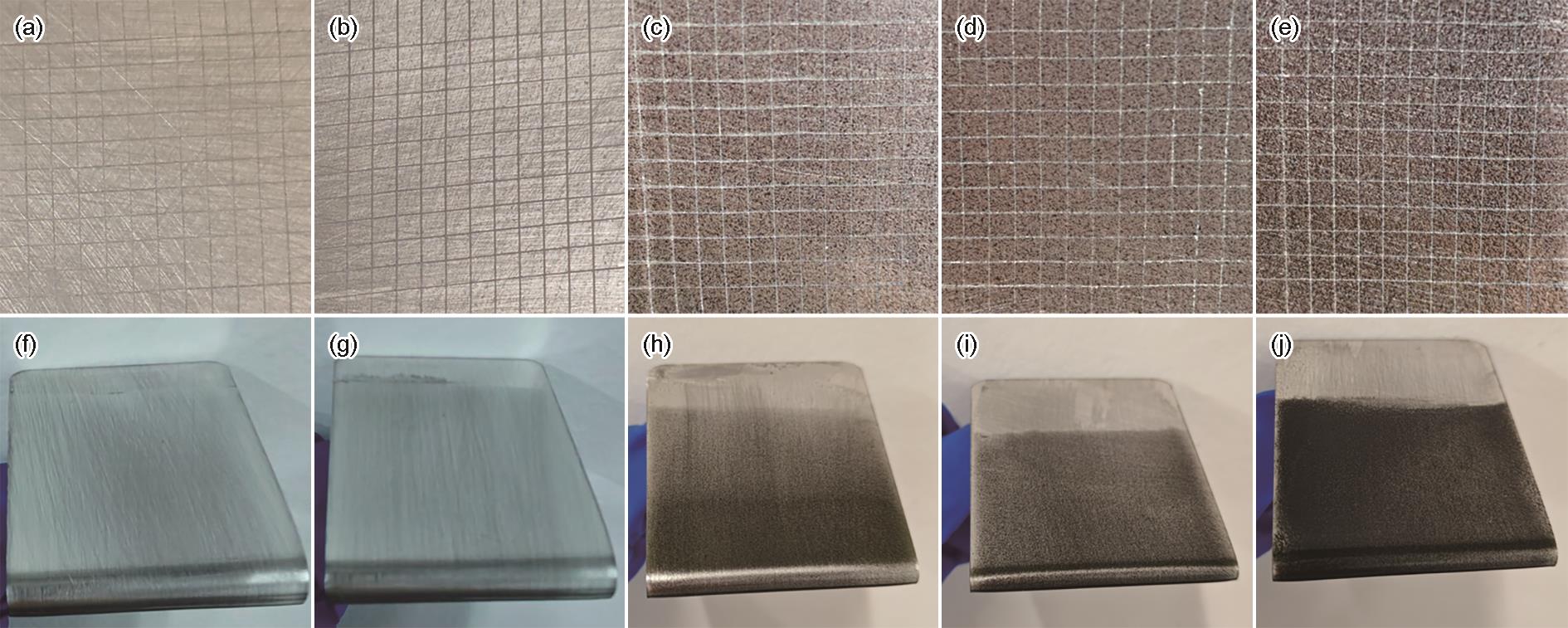

图4 涂层的附着力测试与柔韧性测试图

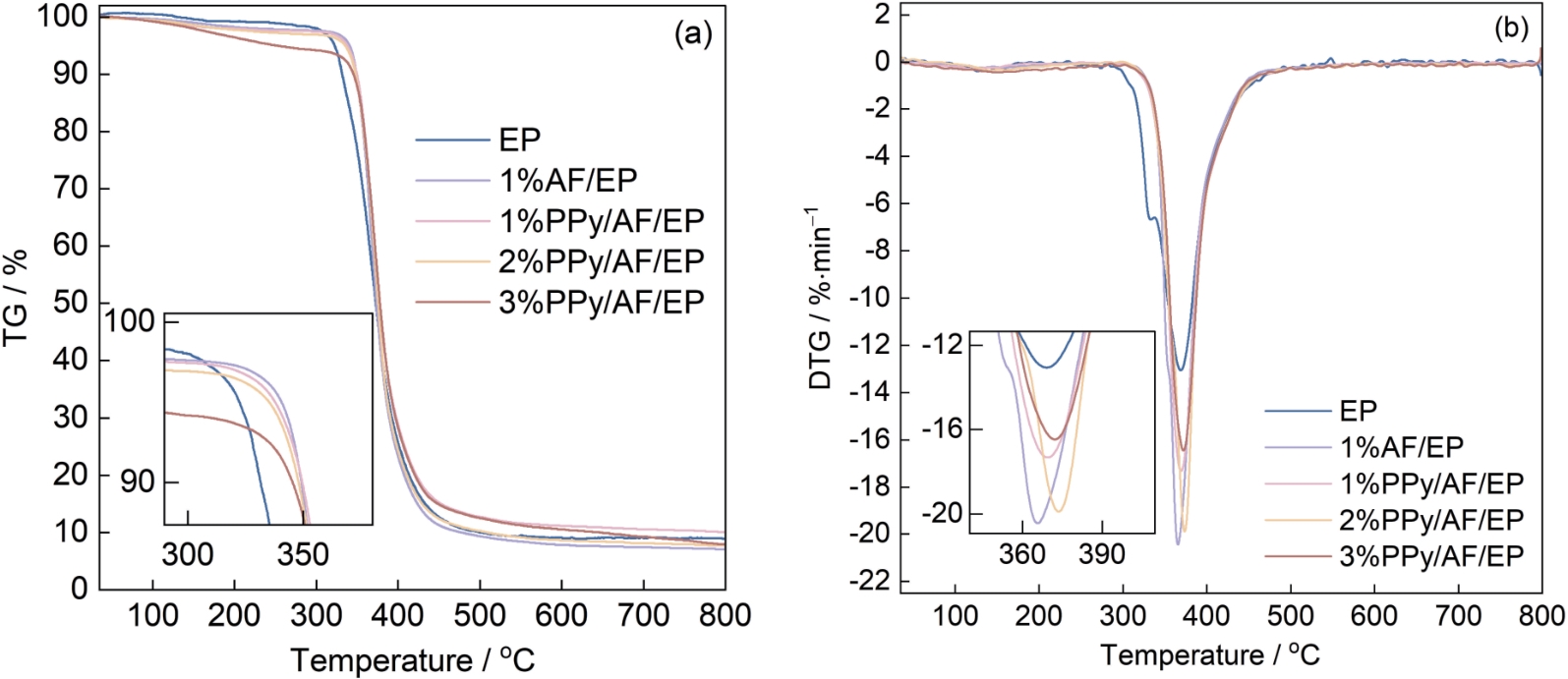

图5 涂层的热重与微分热重曲线

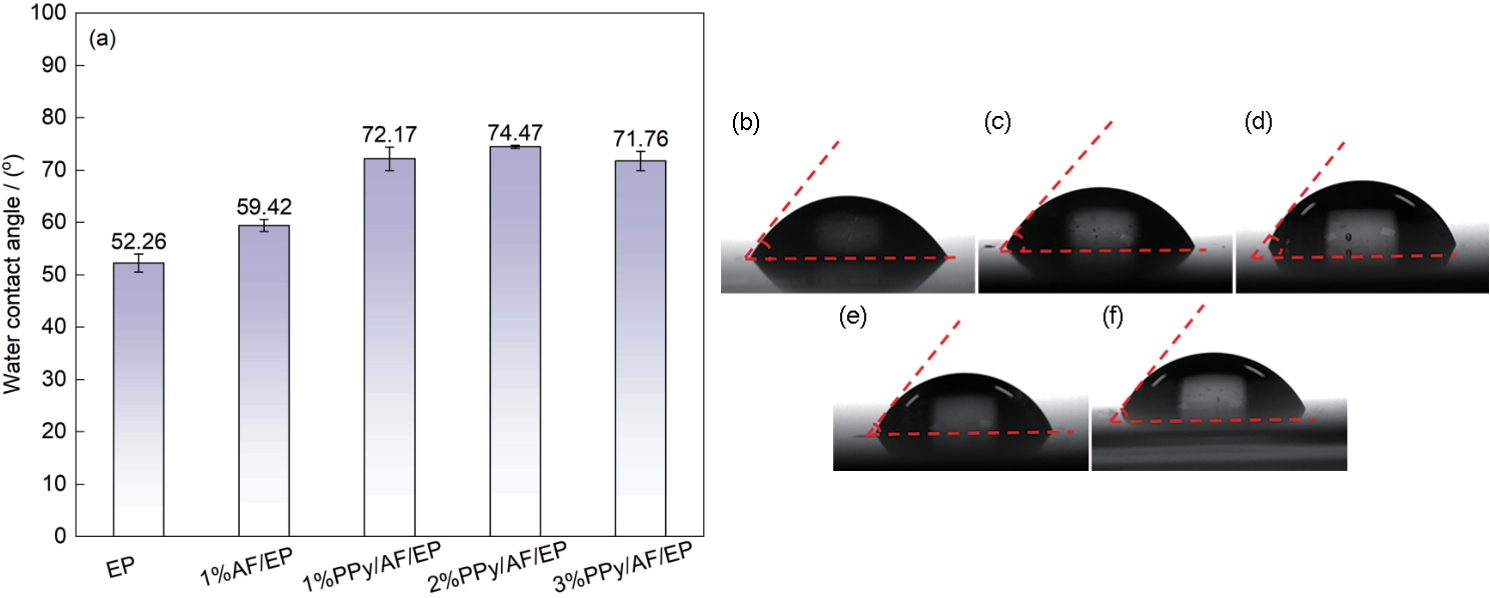

图6 涂层与水的接触角

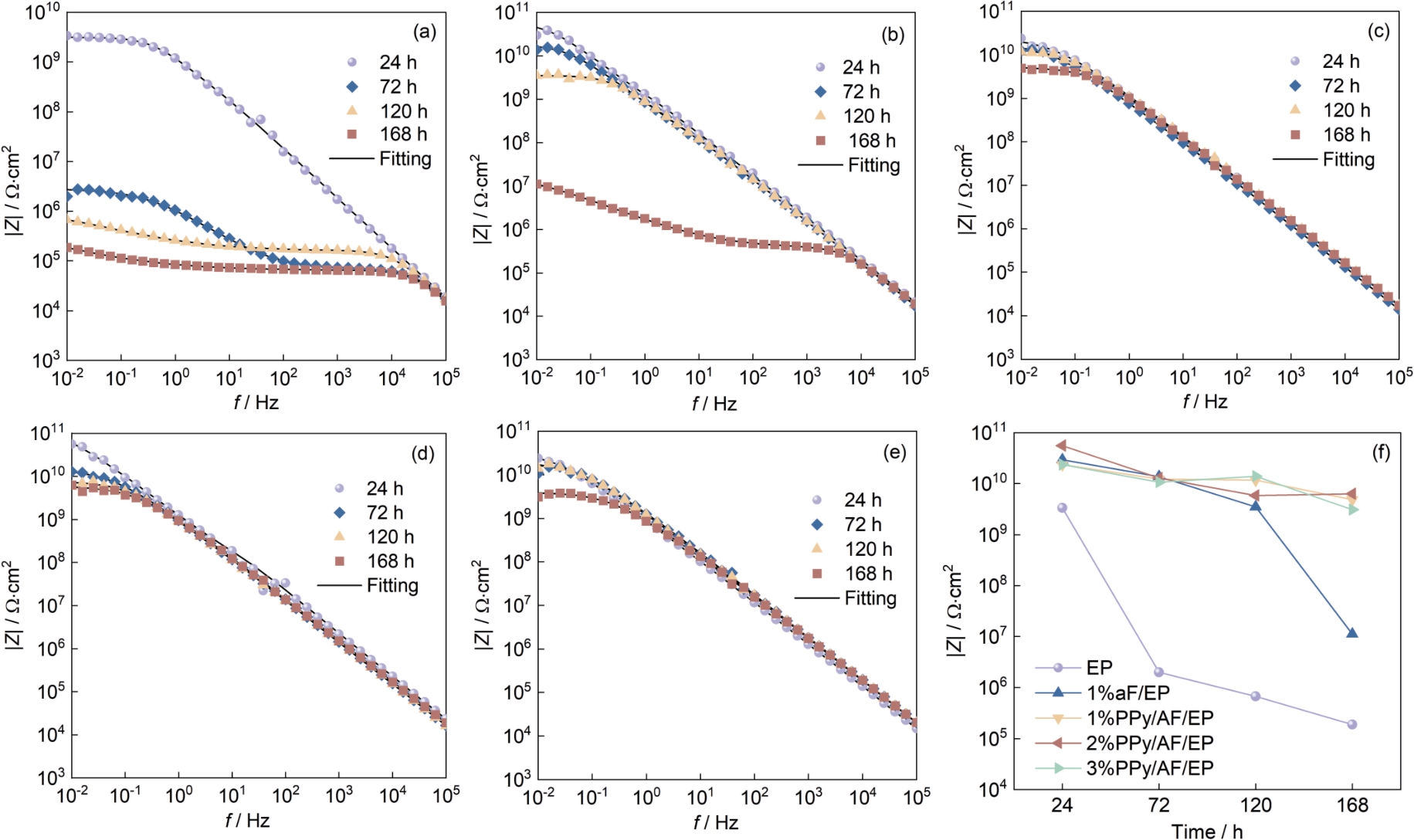

图7 涂层的Bode图和低频模量值变化图

图8 涂层的Nyquist图和等效电路图

表1 EP、1%AF/EP和2%PPy/AF/EP涂层在3.5%NaCl溶液中得到的电化学拟合参数

[1]	Cao J Y, Zhao Y, Liu Y S, et al. Preparation and protective properties of superhydrophobic modified basalt/epoxy coatings [J]. J. Chin. Soc. Corros. Prot., 2024, 44: 1476
[1]	曹京宜, 赵伊, 刘岩硕等. 超疏水改性玄武岩/环氧涂层的制备及防护性能研究 [J]. 中国腐蚀与防护学报, 2024, 44: 1476 doi: 10.11902/1005.4537.2024.006
[2]	Zhang H, Bao M Y, Xu C, et al. Modified organic coating with polypyrrole and ZIF-67 decorated graphene oxide fillers for sustainable corrosion protection [J]. Appl. Surf. Sci., 2026, 715: 164553 doi: 10.1016/j.apsusc.2025.164553
[3]	Chen L J, Chao L W, Zhao J M. Preparation of CeO₂@Zr-MOF composites and their effect on corrosion protectiveness of epoxy coatings on galvanized steel plate [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 664
[3]	陈丽娟, 晁刘伟, 赵景茂. CeO₂@Zr-MOF复合材料的制备及其对环氧涂层保护性能的提升作用 [J]. 中国腐蚀与防护学报, 2025, 45: 664 doi: 10.11902/1005.4537.2024.150
[4]	Zhu Q S, Huang Y X, Li Y L, et al. Aluminum dihydric tripolyphosphate/polypyrrole-functionalized graphene oxide waterborne epoxy composite coatings for impermeability and corrosion protection performance of metals [J]. Adv. Compos. Hybrid Mater., 2021, 4: 780 doi: 10.1007/s42114-021-00265-6
[5]	Zhang Y F, Die J C, Li F, et al. Polypyrrole-modified molybdenum disulfide nanocomposite epoxy coating inhibits corrosion of mild steel [J]. Coatings, 2023, 13: 1046 doi: 10.3390/coatings13061046
[6]	Zhu Q S, Li E, Liu X H, et al. Epoxy coating with in-situ synthesis of polypyrrole functionalized graphene oxide for enhanced anticorrosive performance [J]. Prog. Org. Coat., 2020, 140: 105488
[7]	Zhao Y, Li X, Shen J N, et al. The potential of Kevlar aramid nanofiber composite membranes [J]. J. Mater. Chem., 2020, 8A: 7548
[8]	Qiu G D, Wang B, Hu Y Q, et al. A method for electrodepositing Aramid III nanofibers on copper electrodes [J]. Mater. Lett., 2023, 340: 134137 doi: 10.1016/j.matlet.2023.134137
[9]	Kong X Y, Geng X, Geng S N, et al. Antibacterial para-aramid fiber loaded with in situ generated silver nanoparticles [J]. Surf. Interfaces, 2022, 30: 101922
[10]	He S, Sun G X, Cheng X D, et al. Nanoporous SiO₂ grafted aramid fibers with low thermal conductivity [J]. Compos. Sci. Technol., 2017, 146: 91 doi: 10.1016/j.compscitech.2017.04.021
[11]	Lin G Y, Wang H, Yu B Q, et al. Combined treatments of fiber surface etching/silane-coupling for enhanced mechanical strength of aramid fiber-reinforced rubber blends [J]. Mater. Chem. Phys., 2020, 255: 123486 doi: 10.1016/j.matchemphys.2020.123486
[12]	Jung J, Sodano H A. High strength epoxy nanocomposites reinforced by epoxy functionalized aramid nanofibers [J]. Polymer, 2020, 195: 122438 doi: 10.1016/j.polymer.2020.122438
[13]	Song J X, Xie Q, Lu X Q, et al. Enhanced performance of aramid/epoxy composites by silane coupling treatment of fillers [J]. IEEE Trans. Dielectr. Electr. Insul., 2023, 30: 911
[14]	Xie F, Xing L X, Liu L, et al. Surface ammonification of the mutual‐irradiated aramid fibers in 1, 4‐dichlorobutane for improving interfacial properties with epoxy resin [J]. J. Appl. Polym. Sci., 2017, 134: 44924
[15]	Zeng L, Liu X Q, Chen X G, et al. Surface modification of aramid fibres with graphene oxide for interface improvement in composites [J]. Appl. Compos. Mater., 2018, 25: 843 doi: 10.1007/s10443-018-9718-9
[16]	Jia C Y, Zhang R Z, Yuan C C, et al. Surface modification of aramid fibers by amino functionalized silane grafting to improve interfacial property of aramid fibers reinforced composite [J]. Polym. Compos., 2020, 41: 2046 doi: 10.1002/pc.v41.5
[17]	Ding H Q, Kong H J, Sun H, et al. Improving aramid pulp dispersion in epoxy resin via the in situ preparation of SiO₂ on an aramid pulp surface [J]. Polym. Compos., 2020, 41: 1683 doi: 10.1002/pc.v41.4
[18]	Kharat B M, Vyavahare S A, Shirapure Y, et al. Synthesis and characterization of polypyrrole-fly-ash-adenosine composite reinforced epoxy coating for anticorrosive applications [J]. J. Appl. Polym. Sci., 2023, 140: e54685 doi: 10.1002/app.v140.46
[19]	Ren S C, Sun H B, Meng F D, et al. Polyoxometalate-polypyrrole synergism: A new approach to boost oxide film formation for fabricating self-passivating organic coatings [J]. Appl. Surf. Sci., 2025, 699: 163183 doi: 10.1016/j.apsusc.2025.163183
[20]	Zadeh M K, Yeganeh M, Shoushtari M T, et al. Corrosion performance of polypyrrole-coated metals: A review of perspectives and recent advances [J]. Synth. Met., 2021, 274: 116723 doi: 10.1016/j.synthmet.2021.116723
[21]	Yang Z X, Liu B G, Yuwen C, et al. Preparation and performance studies of modified graphene oxide/polyaniline composite anticorrosive coatings [J]. Prog. Org. Coat., 2024, 197: 108855
[22]	Xu H B, Zhang Y X. A review on conducting polymers and nanopolymer composite coatings for steel corrosion protection [J]. Coatings, 2019, 9: 807 doi: 10.3390/coatings9120807
[23]	Riaz U, Ashraf S M, Ahmad S. High performance corrosion protective DGEBA/polypyrrole composite coatings [J]. Prog. Org. Coat., 2007, 59: 138
[24]	Jin Y J, Chen Z H, Yang W Z, et al. Research progress on preparation and modification technology of conductive polymer corrosive protection coatings [J]. Acta Mater. Compos. Sin., 2023, 40: 710
[24]	金义杰, 陈智豪, 杨文忠等. 导电聚合物腐蚀防护涂层的制备与改性技术研究进展 [J]. 复合材料学报, 2023, 40: 710
[25]	Rajkumar R, Vedhi C. Study of the corrosion protection efficiency of polypyrrole/metal oxide nanocomposites as additives in anticorrosion coating [J]. Anti-Corros. Methods Mater., 2020, 67: 305 doi: 10.1108/ACMM-11-2019-2204
[26]	Lu L, Hou W P, Guan S Y, et al. Green route to prepare polypyrrole and the anticorrosion property of polypyrrole-epoxy composite coating on Q235 steel [J]. Chem. Ind. Eng. Prog., 2013, 32: 617
[26]	路亮, 侯文鹏, 关士友等. 聚吡咯的绿色制备及其环氧树脂复合涂层对Q235钢的防腐性能 [J]. 化工进展, 2013, 32: 617
[27]	Li D D, Zhang Y H, Li Y F, et al. Preparation of polypyrrole-polyaniline/graphene/silica composite film and its anti-corrosion properties [J]. Guangdong Chem. Ind., 2024, 51(12): 17
[27]	李东东, 张永合, 李芸菲等. 聚吡咯-苯胺/石墨烯/二氧化硅复合薄膜的制备及其防腐性能研究 [J]. 广东化工, 2024, 51(12): 17
[28]	Wang F L, Zheng Y S, Mo C Y, et al. Preparation of polypyrrole/nano-ZnO composite and study of its anticorrosive performance [J]. Eng. Plast. Appl., 2015, 43: 35
[28]	王发龙, 郑燕升, 莫春燕等. 聚吡咯/纳米ZnO复合材料制备及其防腐性能研究 [J]. 工程塑料应用, 2015, 43: 35
[29]	Mirzaee M, Kianpour E, Rashidi A, et al. Construction of a high-performance anti-corrosion epoxy coating in the presence of poly(aniline-co-pyrrole) nanospheres [J]. React. Funct. Polym., 2024, 194: 105794 doi: 10.1016/j.reactfunctpolym.2023.105794
[30]	Marashi-Najafi F, Khalil-Allafi J, Mahdavi S. Superior multifunctional polypyrrole anticorrosion coating modified by polydopamine decorated barium titanate nanoparticles on NiTi shape memory alloys [J]. J. Mater. Res. Technol., 2023, 26: 6823 doi: 10.1016/j.jmrt.2023.09.071
[31]	Lu F S, Liu C Q, Chen Z H, et al. Polypyrrole-functionalized boron nitride nanosheets for high-performance anti-corrosion composite coating [J]. Surf. Coat. Technol., 2021, 420: 127273 doi: 10.1016/j.surfcoat.2021.127273
