Please wait a minute...
中国腐蚀与防护学报  2026, Vol. 46 Issue (5): 1627-1633     CSTR: 32134.14.1005.4537.2025.321      DOI: 10.11902/1005.4537.2025.321
  研究报告 本期目录 | 过刊浏览 |
海洋环境中316不锈钢表面喷涂粉末涂层的耐久性评估
俞春林1(), 顾铭飞1, 孙一昂1, 袁可鑫2, 杨静2, 王丽熙2(), 朱承飞2, 朱海奎2
1.南京国电南自电网自动化有限公司 南京 215347
2.南京工业大学材料科学与工程学院 南京 211816
Durability Assessment of Powder Spraying Coating on Surface of 316 Stainless Steel in Artificial Marine Environments
YU Chunlin1(), GU Mingfei1, SUN Yi'ang1, YUAN Kexin2, YANG Jing2, WANG Lixi2(), ZHU Chengfei2, ZHU Haikui2
1.Guodian Nanjing Automation Co. Ltd., Nanjing 215347, China
2.School of Materials Science and Engineering, Nanjing Tech University, Nanjing 211816, China
引用本文:

俞春林, 顾铭飞, 孙一昂, 袁可鑫, 杨静, 王丽熙, 朱承飞, 朱海奎. 海洋环境中316不锈钢表面喷涂粉末涂层的耐久性评估[J]. 中国腐蚀与防护学报, 2026, 46(5): 1627-1633.
Chunlin YU, Mingfei GU, Yi'ang SUN, Kexin YUAN, Jing YANG, Lixi WANG, Chengfei ZHU, Haikui ZHU. Durability Assessment of Powder Spraying Coating on Surface of 316 Stainless Steel in Artificial Marine Environments[J]. Journal of Chinese Society for Corrosion and protection, 2026, 46(5): 1627-1633.

全文: PDF(5886 KB)   HTML
摘要:

采用电化学阻抗谱(EIS)技术,研究了喷涂粉末(60%聚酯、10%钛白、7%固化剂、6%流平剂、2%颜料、15%辅料)涂层的316不锈钢在模拟沿海大气和海水中初期的失效过程并分析其耐久性。结果表明:在模拟沿海大气环境中,涂层电阻以1.10 × 106 Ω·h-1的速率从起始的1.07 × 108 Ω·cm2下降到96 h的1.48 × 106 Ω·cm2;在模拟海水中浸泡的前48 h内涂层电阻从起始的1.56 × 108 Ω·cm2下降到1.99 × 106 Ω·cm2,下降速率为1.30 × 106 Ω·h-1;无论是模拟沿海大气环境还是模拟海水浸泡条件下,喷涂粉末涂层的吸水过程lnCc-t1/2可分为两个阶段,长时间规律为直线上升最后趋于平缓。还表明在传统涂层研究中因腐蚀过于剧烈而被忽略的“短时间的电阻回升现象”。结果还表明,在模拟沿海大气环境中喷涂粉末涂层的水分扩散系数D为1.69 × 10-11 cm2·s-1,在模拟海水中喷涂粉末涂层的水分扩散系数D为2.31 × 10-11 cm2·s-1,略大于模拟沿海大气环境中的水分扩散系数。

关键词 : 喷涂粉末涂层,  电化学阻抗谱,  失效过程,  水分吸收
Abstract:

The initial failure process of the powder spraying coating (namely 60% polyester, 10% TiO2, 7% curing agent, 6% leveling agent, 2% pigment, 15% auxiliary materials), which was applied on 316 stainless steels, in artificial coastal atmosphere and seawater was investigated by electrochemical impedance spectroscopy (EIS) technique, whilst the failure process was analyzed. The results showed that in the artificial coastal atmosphere, the coating resistance decreased from an initial value of 1.07 × 108 Ω·cm2 to 1.48 × 106 Ω·cm2 over the first 96 hours by a descent rate of 1.10 × 106 Ω·h-1. In the artificial seawater, the coating resistance decreased from an initial value of 1.56 × 108 Ω·cm2 to 1.99 × 106 Ω·cm2 over the first 48 hours by a descent rate of 1.30 × 106 Ω·h-1. Whether the coated steels expose in the artificial coastal atmospheric environment or immerse in the artificial seawater, the lnCc-t1/2 curves for coatings indicated that the coating capacitance presented two typical stages as the corrosion time increased, the coating capacitance increased rapidly in the beginning time of corrosion, and then tented to be a slow growth. Furthermore, the water molecular diffusion coefficient D for the powder spraying coating in the artificial coastal atmosphere was 1.69 × 10-11 cm2·s-1, while that was 2.31 × 10-11 cm2·s-1 in the artificial seawater, which is slightly higher than that in the coastal atmosphere.

Key words: powder-spraying coating    EIS    degradation process    water diffusion
收稿日期: 2025-10-18      32134.14.1005.4537.2025.321
ZTFLH:  TG174
通讯作者: 俞春林,E-mail:yuchunlin@chd.com.cn,研究方向为机械结构及产品工艺等;
王丽熙,E-mail:wanglixi_njut@163.com,研究方向为吸波材料、激光抑制与防护材料等光功能材料
Corresponding author: YU Chunlin, E-mail: yuchunlin@chd.com.cn;
WANG Lixi, E-mail: wanglixi_njut@163.com
作者简介: 俞春林,男,1978年生,高级工程师

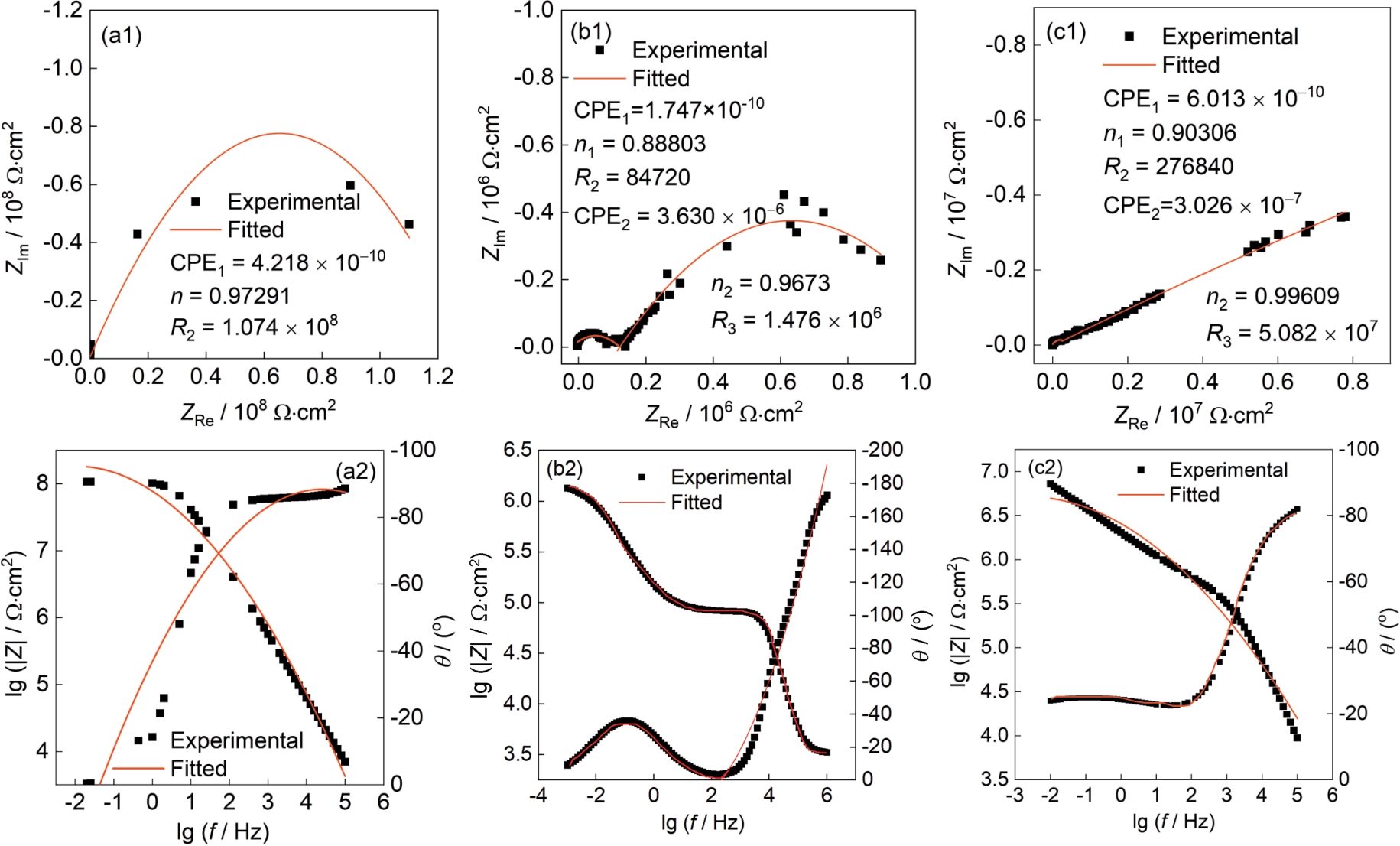

图1  不同暴露时间的涂层在40 ℃模拟海水大气环境中的电化学阻抗谱

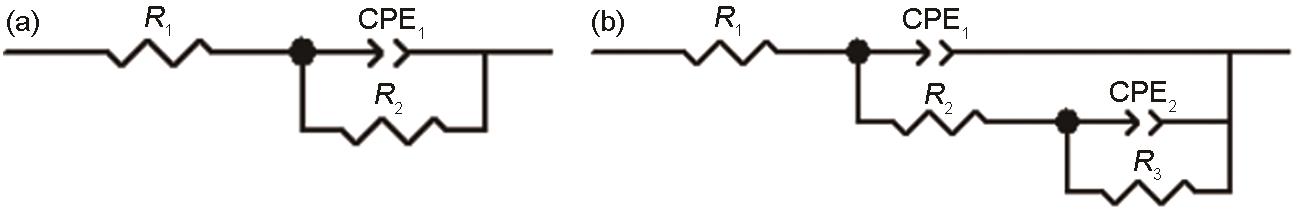

图2  用于拟合涂层暴露在模拟沿海大气不同阶段EIS的等效电路
Time / hR2 / Ω·cm2R3 / Ω·cm2CPE1-T, F/cm2CPE1-PCPE2-T, F/cm2CPE2-P
41.07 × 1084.22 × 10-100.953
96847201.48 × 1061.75 × 10-100.9823.80 × 10-60.714
3602.77 × 1055.08 × 1076.01 × 10-100.9043.03 × 10-70.317
表1  图1 EIS的电路拟合结果

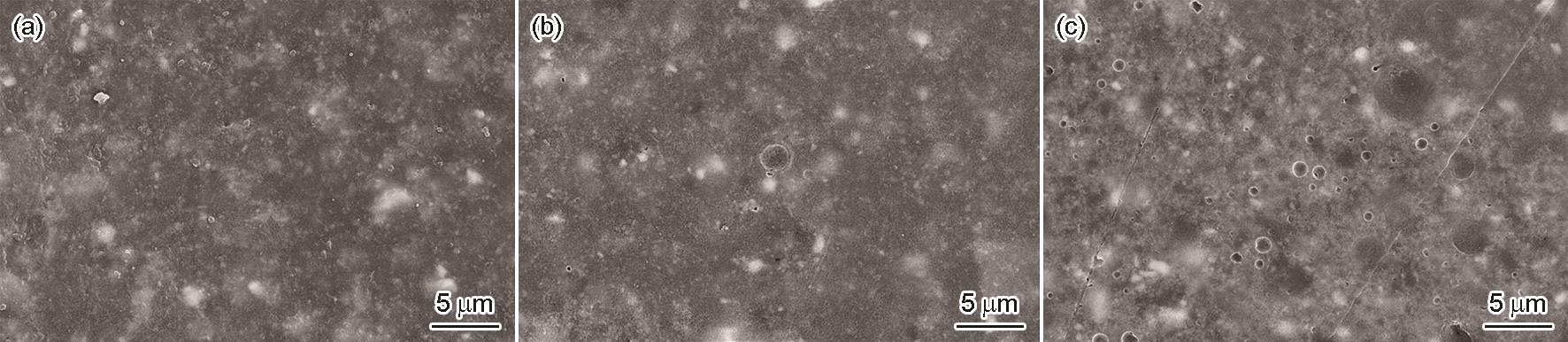

图3  不同浸泡时间的涂层在40 ℃模拟海水大气环境中的SEM图像

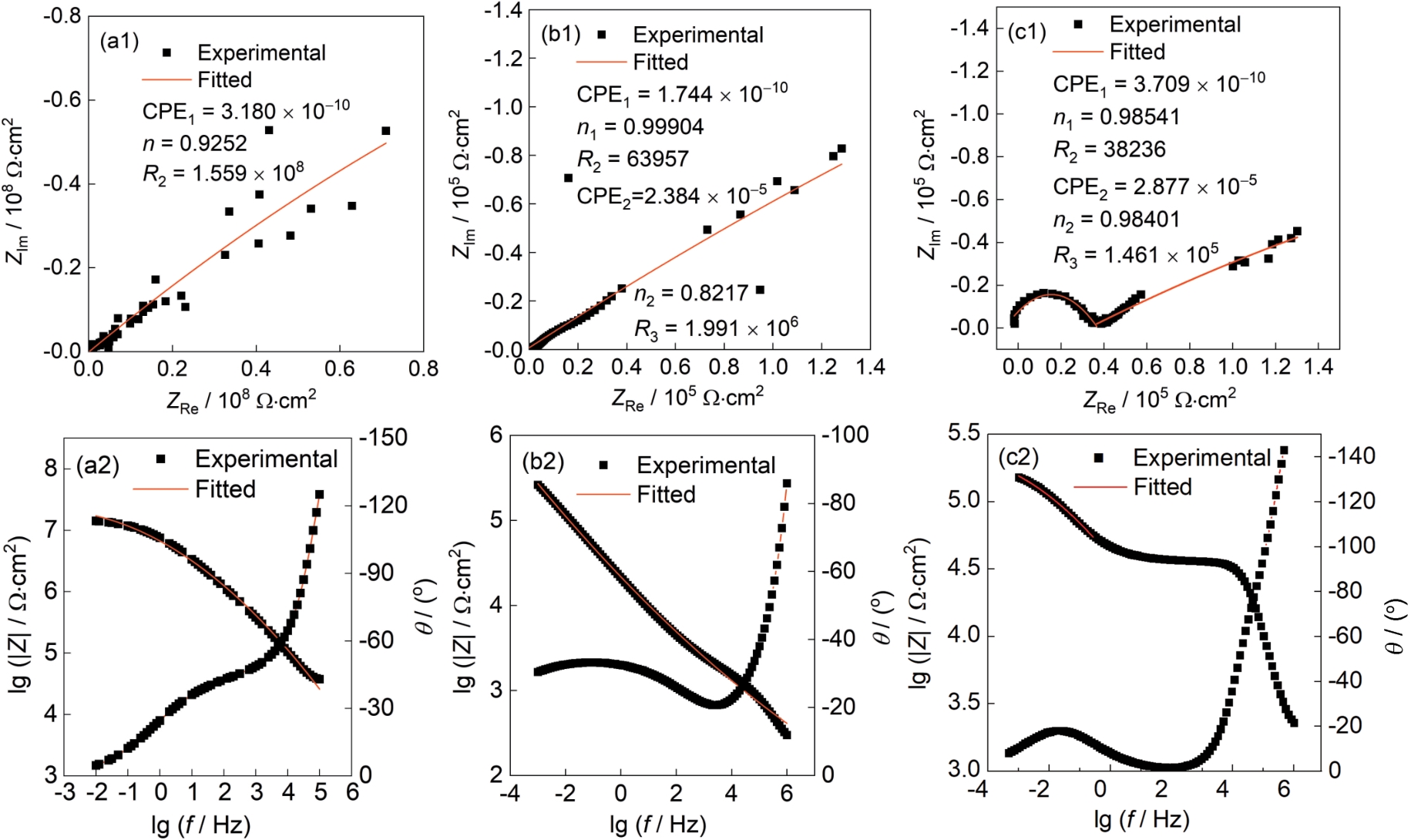

图4  不同浸泡时间的涂层在40 ℃海水中浸泡的电化学阻抗谱
Time / hR2 / Ω·cm2R3 / Ω·cm2CPE1-T, F/cm2CPE1-PCPE2-T, F/cm2CPE2-P
0.51.56 × 1083.18 × 10-100.492
48639571.99 × 1061.74 × 10-100.5162.38 × 10-50.386
120382361.46 × 1053.71 × 10-100.9242.88 × 10-50.503
表2  图4 EIS的电路拟合结果

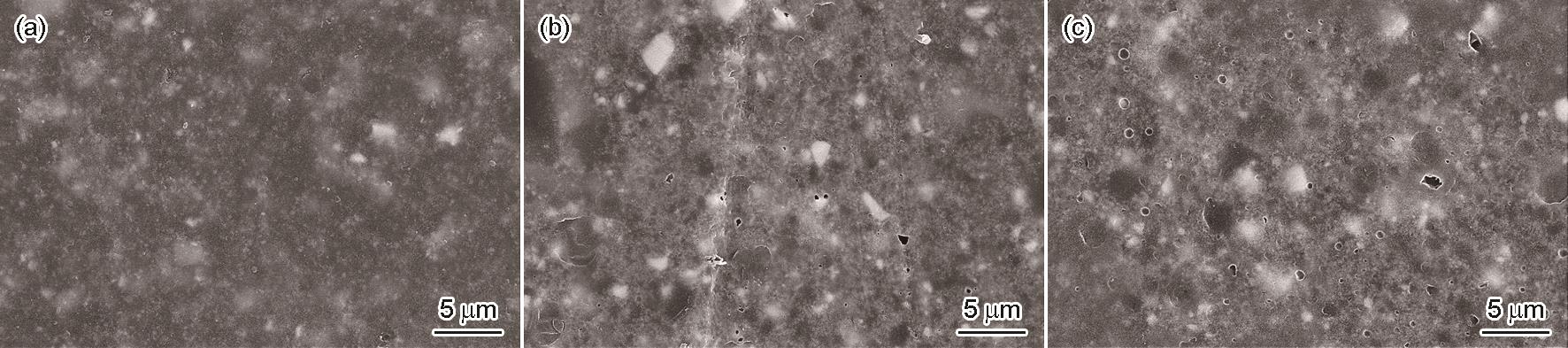

图5  不同浸泡时间的涂层在40 ℃海水中浸泡的SEM图像

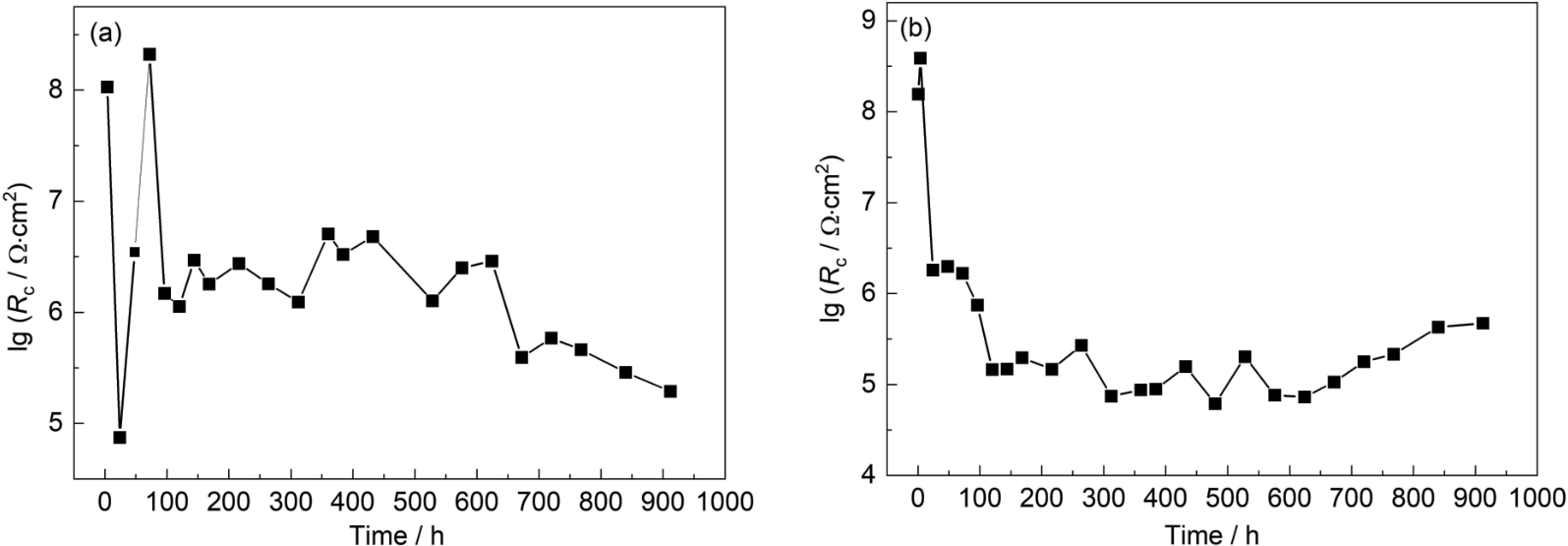

图6  涂层电阻Rc随时间变化的曲线图

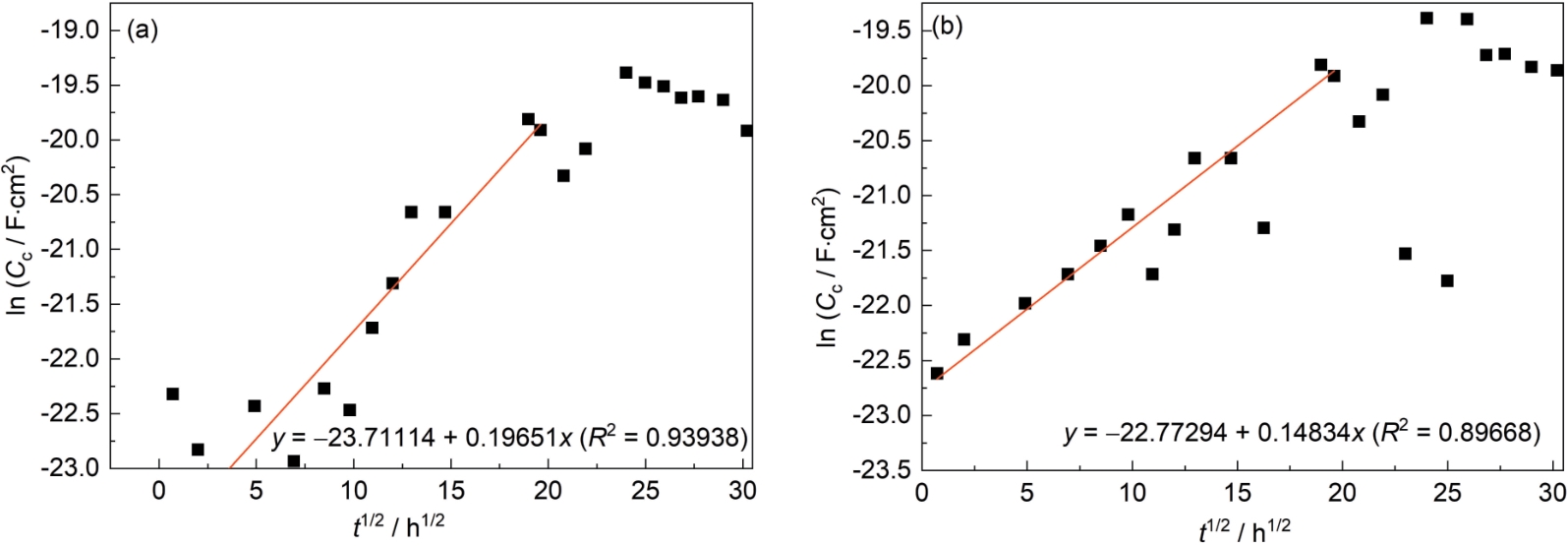

图7  涂层失效过程中的lnCc-t1/2曲线
[1] Liu A H, Wang Y N, Tian R Z, et al. A comparative analysis of different surface tribological and electrochemical properties of TiAlN, TiAlSiN, and CrAlN thin film coatings in seawater [J]. Surf. Topogr.: Metrol. Prop., 2024, 12: 045021
[2] Guo Y J, Li Y H, Xia D H, et al. Data analysis and physical model of electrochemical impedance spectroscopy for corrosion systems: progresses and challenges [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 1143
[2] 郭玉杰, 李艳辉, 夏大海 等. 腐蚀电化学阻抗谱的数据解析与物理模型研究进展 [J]. 中国腐蚀与防护学报, 2025, 45: 1143
doi: 10.11902/1005.4537.2024.381
[3] Ma Q Y. Research on the application of wear-resistant coatings in the surface protection of electronic equipment structures [J]. Mod. Manuf. Technol. Equip., 2023, 59(8): 117
[3] 马蔷轶. 耐磨涂层在电子设备结构表面防护中的应用研究 [J]. 现代制造技术与装备, 2023, 59(8): 117
[4] Zhu D K. Research and application of electrostatic spraying anticorrosion treatment [J]. Chem. Eng. Des. Commun., 2022, 48(6): 130
[4] 朱佃坤. 静电喷塑防腐处理的研究与应用 [J]. 化工设计通讯, 2022, 48(6): 130
[5] Gao H D, Cui Y, Liu L, et al. Influence of simulated deep sea pressured-flowing seawater on failure behavior of epoxy glass flake coating [J]. J. Chin. Soc. Corros. Prot., 2022, 42: 39
[5] 高浩东, 崔 宇, 刘 莉 等. 深海压力-流速耦合环境对环氧玻璃鳞片涂层失效行为的影响 [J]. 中国腐蚀与防护学报, 2022, 42: 39
doi: 10.11902/1005.4537.2021.034
[6] Cao J Y, Zang B L, Cao B X, et al. Influence of chemical bonding interface of modified basalt/epoxy coating on its corrosion resistance [J]. J. Chin. Soc. Corros. Prot., 2022, 42: 1009
[6] 曹京宜, 臧勃林, 曹宝学 等. 改性玄武岩/环氧涂层化学键合界面对涂层防腐性能的影响 [J]. 中国腐蚀与防护学报, 2022, 42: 1009
doi: 10.11902/1005.4537.2021.312
[7] Zhang J Q, Cao C N. Study and evaluation on organic coatings by electrochemical impedance spectroscopy [J]. Corros. Prot., 1998, 19: 99
[7] 张鉴清, 曹楚南. 电化学阻抗谱方法研究评价有机涂层 [J]. 腐蚀与防护, 1998, 19: 99
[8] Martinez S, Hudec B, Šoić I. Low-frequency EIS interpretation with the potential to predict the durability of protective coatings [J]. Prog. Org. Coat., 2024, 197: 108811
[9] Li S H, Hu S H, Wang F N, et al. Study on correlation between the protection performance of coatings and phase angles [J]. Electrochim. Acta, 2024, 480: 143887
doi: 10.1016/j.electacta.2024.143887
[10] Cao F Y, Zhao C, You J, et al. The inhibitive effect of artificial seawater on magnesium corrosion [J]. Adv. Eng. Mater., 2019, 21: 1900363
doi: 10.1002/adem.v21.8
[11] State Administration for Market Regulation, Standardization Administration of the People’s Republic of China. Corrosion of metals and alloys—accelerated cyclic corrosion tests with exposure to synthetic ocean water salt-deposition process—dry and wet conditions at constant absolute humidity [S]. Beijing: Standards Press of China, 2019
[11] 中华人民共和国国家市场监督管理总局, 中国国家标准化管理委员会. 金属和合金的腐蚀 含人造海水沉积盐过程的循环加速腐蚀试验 恒定绝对湿度下干燥/湿润 [S]. 北京: 中国标准出版社, 2019
[12] Yang C. Study on the failure mechanism of epoxy coating based on water molecular diffusion dynamics [D]. Qingdao: China University of Petroleum (East China), 2020
[12] 杨 超. 基于水分子扩散动力学的环氧涂层失效机理研究 [D]. 青岛: 中国石油大学(华东), 2020
[13] Thomas N L. The barrier properties of paint coatings [J]. Prog. Org. Coat., 1991, 19: 101
doi: 10.1016/0033-0655(91)80001-Y
[14] Blahník R. Problems of measuring water sorption in organic coatings and films, and calculations of complicated instances of moistening [J]. Prog. Org. Coat., 1983, 11: 353
[15] Zhu C F, Xie R, Xue J H. Study of degradation process and water diffusion coefficient of heavy-duty coatings in seawater [J]. J. Mater. Eng., 2011, (12): 53
[15] 朱承飞, 解 瑞, 薛金花. 海水中重防腐涂层的失效行为及扩散系数的测定 [J]. 材料工程, 2011, (12): 53
[16] Song L L. Study on the behaviour of carbon steel/coating interfaces with corrosion inhibitors added in marine environments [D]. Nanjing: Nanjing Tech University, 2014
[16] 宋林林. 海洋环境中添加缓蚀剂的碳钢/涂层界面行为研究[D]. 南京: 南京工业大学, 2014
[17] Sørensen P A, Dam-Johansen K, Weinell C E, et al. Cathodic delamination: quantification of ionic transport rates along coating-steel interfaces [J]. Prog. Org. Coat., 2010, 68: 70
doi: 10.1016/j.porgcoat.2009.08.018
[18] Leidheiser Jr H, Ang W, Igetoft L. The mechanism for the cathodic delamination of organic coatings from a metal surface [J]. Prog. Org. Coat., 1983, 11: 19
doi: 10.1016/0033-0655(83)80002-8
[19] Skar J I, Steinsmo U. Cathodic disbonding of paint films-transport of charge [J]. Corros. Sci., 1993, 35: 1385
doi: 10.1016/0010-938X(93)90362-K
[1] 雍兴跃, 董晓梅, 高新华, 李卓玄, 陈燕飞, 纪灏天. 电化学阻抗谱在有机涂层研究中的应用[J]. 中国腐蚀与防护学报, 2026, 46(4): 945-961.
[2] 王萌萌, 曹国民, 孟繁兴, 李天亮, 宋沁峰, 单太航, 董亮. 混凝土配重层对近海海底钢质管道阴极保护效果的影响[J]. 中国腐蚀与防护学报, 2026, 46(3): 680-692.
[3] 周小包, 王子腾, 任延杰, 董少阳, 甘浪, 李聪. 激光粉末床熔融成形CoCrNi中熵合金的高温热腐蚀行为[J]. 中国腐蚀与防护学报, 2026, 46(1): 115-125.
[4] 庄宁, 曾易, 欧阳正平, 许金荣, 李翰泽, 宋霄锟, 王亚洲. 海洋环境下钢筋混凝土桩基的腐蚀与阴极保护特征分析[J]. 中国腐蚀与防护学报, 2026, 46(1): 273-282.
[5] 王得, 张璠, 王兴奇, 张贺新, 赵成志, 杨延格. 单组分氟碳改性环氧涂层对碳钢和铝合金长期防腐性能的对比研究[J]. 中国腐蚀与防护学报, 2025, 45(6): 1549-1562.
[6] 许诗源, 孟鑫, 杨亚璋, 刘辰, 张昭, 方晓祖. 腐蚀形貌对镁合金电化学阻抗谱特征的影响研究[J]. 中国腐蚀与防护学报, 2025, 45(6): 1589-1598.
[7] 郭玉杰, 李艳辉, 夏大海, 胡文彬. 腐蚀电化学阻抗谱的数据解析与物理模型研究进展[J]. 中国腐蚀与防护学报, 2025, 45(5): 1143-1160.
[8] 夏大海, 潘成成, 郭玉杰, 胡文彬, TRIBOLLET Bernard. EIS研究7050铝合金在NaCl溶液空蚀作用下的界面状态与腐蚀机制[J]. 中国腐蚀与防护学报, 2025, 45(5): 1196-1204.
[9] 何武豪, 刘阳, 杨思懿, 张韶栋, 吴伟, 张俊喜. 敏化处理对传统和增材制造316L不锈钢电化学和晶间腐蚀的影响[J]. 中国腐蚀与防护学报, 2025, 45(5): 1331-1340.
[10] 李丽, 李善文, 史洪微, 梁国平, 李春霖, 孙禹, 秦晋, 王伟, 韩恩厚. 高速列车用铝合金环氧底漆的腐蚀行为和湿热老化机理研究[J]. 中国腐蚀与防护学报, 2025, 45(3): 757-764.
[11] 王天丛, 赵东杨, 向雪云, 吴航, 王文. 一种环氧耐蚀涂层在NaCl溶液中的劣化行为研究[J]. 中国腐蚀与防护学报, 2024, 44(5): 1361-1369.
[12] 刘喆, 邓成满, 魏军胜, 夏大海. 涂覆有机涂层的镀锡薄钢板耐蒸煮性能电化学快速检测技术研究[J]. 中国腐蚀与防护学报, 2024, 44(4): 883-890.
[13] 傅江悦, 郭建喜, 杨延格, 冷哲, 王文. 单相流冲刷条件下一种低合金高强钢的腐蚀行为研究[J]. 中国腐蚀与防护学报, 2024, 44(3): 585-600.
[14] 李卓玄, 曹艳辉, 李崇杰, 李辉, 张小明, 雍兴跃. 耦接件涂层失效程度与其力学损伤之间的关系[J]. 中国腐蚀与防护学报, 2024, 44(3): 679-690.
[15] 赵国仙, 刘冉冉, 丁浪勇, 张思琦, 郭梦龙, 王映超. 温度对5Cr钢在模拟油田高温高压环境中CO2 腐蚀行为的影响[J]. 中国腐蚀与防护学报, 2024, 44(1): 175-186.
