Please wait a minute...
中国腐蚀与防护学报  2026, Vol. 46 Issue (5): 1537-1548     CSTR: 32134.14.1005.4537.2025.373      DOI: 10.11902/1005.4537.2025.373
  研究报告 本期目录 | 过刊浏览 |
23MnNiMoCr54钢在不同pH的模拟高矿化水中腐蚀机理研究
曹天慧1, 杨砚淇2, 刘雨薇2, 吴磊2, 郭泉忠2, 贾志刚2, 曹公望2(), 汪川2()
1.沈阳化工大学材料科学与工程学院 沈阳 110142
2.中国科学院金属研究所 辽宁沈阳土壤大气环境材料腐蚀国家野外科学观测研究站 沈阳 110016
Corrosion Behavior of 23MnNiMoCr54 Steel in Artificial High-mineralized Mine Waters of Different pH Values
CAO Tianhui1, YANG Yanqi2, LIU Yuwei2, WU Lei2, GUO Quanzhong2, JIA Zhigang2, CAO Gongwang2(), WANG Chuan2()
1.School of Materials Science and Engineering, Shenyang University of Chemical Technology, Shenyang 110142, China
2.National Field Scientific Observation and Research Station of Soil and Atmospheric Environmental Material Corrosion in Shenyang, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
引用本文:

曹天慧, 杨砚淇, 刘雨薇, 吴磊, 郭泉忠, 贾志刚, 曹公望, 汪川. 23MnNiMoCr54钢在不同pH的模拟高矿化水中腐蚀机理研究[J]. 中国腐蚀与防护学报, 2026, 46(5): 1537-1548.
Tianhui CAO, Yanqi YANG, Yuwei LIU, Lei WU, Quanzhong GUO, Zhigang JIA, Gongwang CAO, Chuan WANG. Corrosion Behavior of 23MnNiMoCr54 Steel in Artificial High-mineralized Mine Waters of Different pH Values[J]. Journal of Chinese Society for Corrosion and protection, 2026, 46(5): 1537-1548.

全文: PDF(20324 KB)   HTML
摘要:

研究了23MnNiMoCr54钢(54钢)在pH = 5、8和9的模拟高矿化水中的腐蚀行为,阐述不同pH值高矿化水引发的54钢腐蚀行为的差异性。选用腐蚀介质是矿化度为10 g/L的模拟矿化水,并依据依我国典型矿区井下水的实际情况,配制了3种同质但pH值不同(pH = 5、8和9)的模拟矿化水,采用X射线衍射、扫描电子显微镜及电化学测试等手段,分析54钢的腐蚀产物组成、表面形貌及电化学行为演变。结果表明,在高矿化度水中腐蚀性离子(Cl-、SO42-)的侵蚀作用与pH影响的产物层结构演变,是影响54钢腐蚀失效的核心因素。弱碱性高矿化度水有利于钢表面稳定防护层的生成,酸性水则加速腐蚀失效。研究结果可为不同pH特征矿区的54钢防腐设计提供科学依据。

关键词 : 23MnNiMoCr54钢,  高矿化水,  pH,  腐蚀产物,  电化学
Abstract:

In order to address the issue that the steel used in mining engineering in mining areas around the country is prone to failure due to corrosion caused by the high mineral containing mine waters with varying pH values. Herein, the corrosion behavior of 23MnNiMoCr54 steel in artificial high-mineralized mine waters with pH values of 5, 8, and 9 respectively was studied by means of immersion test, thickness loss measurement, X-ray diffraction, scanning electron microscopy, and electrochemical tests etc in terms of the surface morphology, composition of corrosion products and evolution of electrochemical behavior of the steel. The corrosive medium selected was an artificial mineralized water with a mineralization degree of 10 g/L as precursor, then based on the actual situation of underground waters in typical mining areas around the country, three homogeneous but with different pH values (pH = 5, 8, and 9) of artificial mineralized waters were prepared. Results show that after immersion in the three high-mineralized mine waters respectively, the corrosion products of the steel were mainly composed of α-FeOOH, γ-FeOOH, β-FeOOH, and Fe3O4. Additionally, CaCO3 and Mg(OH)2 were generated in neutral and weakly alkaline waters, while a higher content of calcium/magnesium-containing products may form in the weakly alkaline water. The corrosion kinetic characteristics followed the trend of "initial increase in corrosion rate, subsequent decrease in the middle stage, and stabilization in the late stage". In acidic high-mineralized mine water, the corrosion rate was consistently higher than that in neutral and weakly alkaline waters due to the incomplete and easily soluble products scale. In the weakly alkaline water, Fe3O4 synergistically formed a compact products scale with CaCO3 and Mg(OH)2, exhibiting the optimal corrosion inhibition effect, while the corrosion rate in the neutral water was intermediate between the other two. High-mineralized mine water exerted dual effects: on one hand, high concentrations of Cl- and SO42- accelerated matrix dissolution and product scale damage; on the other hand, it induced the enrichment of CaCO3 and Mg(OH)2 on the outer portion of rust scale in neutral and weakly alkaline waters, indirectly promoting the formation of a composite protective produts scale. The corrosive effect of aggressive ions (Cl-, SO42-) in high-mineralized mine water and the pH-dependent structural evolution of the products scales are the core factors affecting the corrosion failure of the steel. The weakly alkaline water is conducive to the formation of a stable protective scale, whereas the acidic water may accelerate the corrosion failure. This study provides a scientific basis for the corrosion protection design for steels such as 23MnNiMoCr54 steel used in mining areas with different pH characteristics.

Key words: 23MnNiMoCr54 steel    high-mineralized mine water    pH    corrosion product    electrochemistry
收稿日期: 2025-12-11      32134.14.1005.4537.2025.373
ZTFLH:  TG174.4
基金资助:广州市重点研发计划(2024B01J0037);中国博士后科学基金(2025M770152)
通讯作者: 汪川,E-mail:cwang@imr.ac.cn,研究方向为腐蚀科学与防护;
曹公望,E-mail:gwcao@imr.ac.cn,研究方向为材料自然环境腐蚀
Corresponding author: WANG Chuan, E-mail: cwang@imr.ac.cn;
CAO Gongwang, E-mail: gwcao@imr.ac.cn
作者简介: 曹天慧,男,1997年生,硕士生
ParameterpHTDS / mg·L-1
Eastern5.0-8.5500-2000
Central6.8-8.51500-3000
Western8.0-9.1> 3000
表1  我国典型矿区腐蚀环境
SolutionNaHCO3MgSO4CaSO4·2H2ONaClNa2SO4TDS
pH 50.35 ± 0.050.5 ± 0.12 ± 0.10.3 ± 0.057 ± 0.19.9136
pH 80.35 ± 0.050.5 ± 0.12 ± 0.10.3 ± 0.057 ± 0.19.6028
pH 90.35 ± 0.050.5 ± 0.12 ± 0.10.3 ± 0.057 ± 0.19.6376
表2  高矿化水实验溶液配置 (g/L)
图1  54钢在不同pH的高矿化水中的腐蚀厚度损失和腐蚀速率随浸泡时间的变化

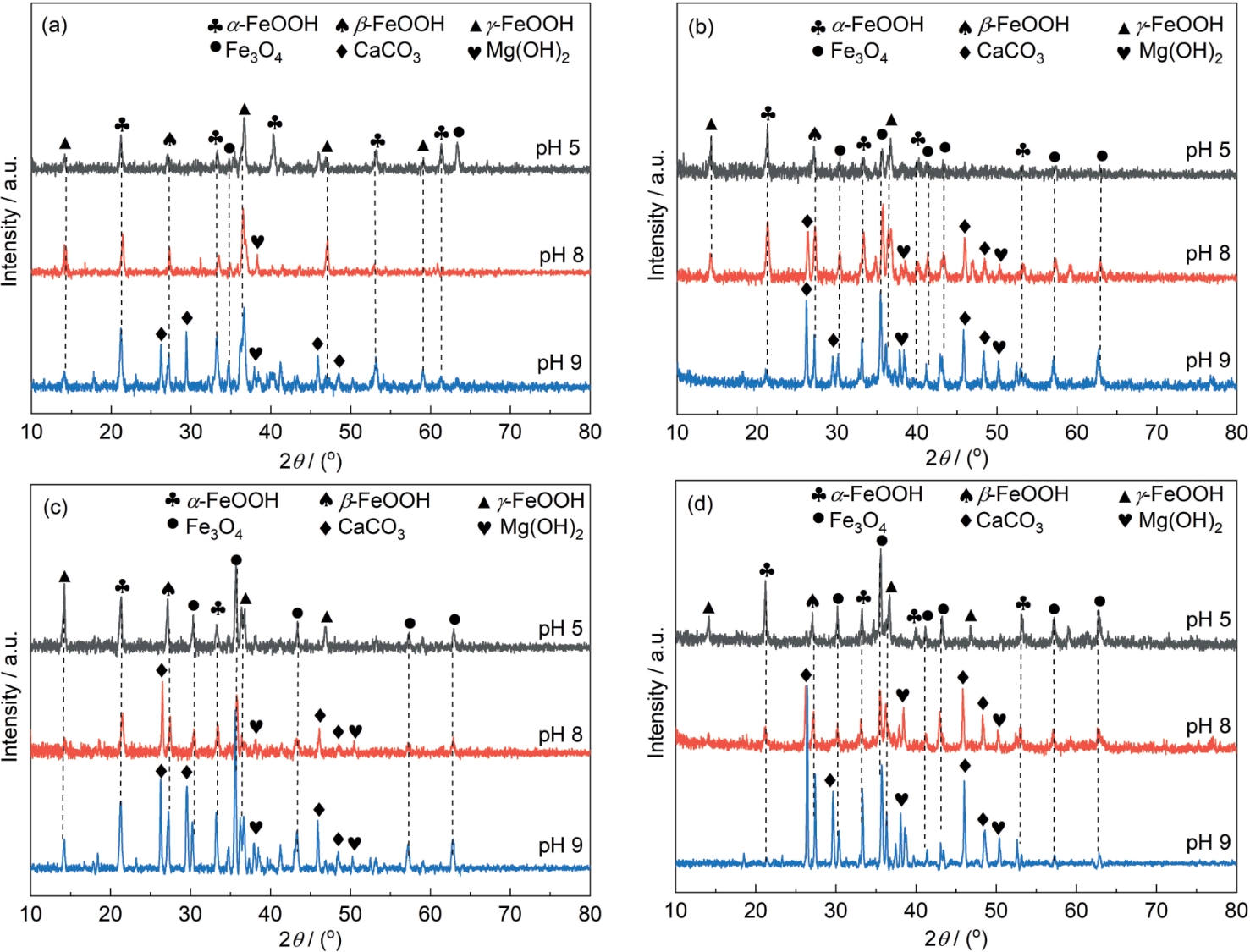

图2  54钢在不同pH的高矿化水中的浸泡后的XRD图谱

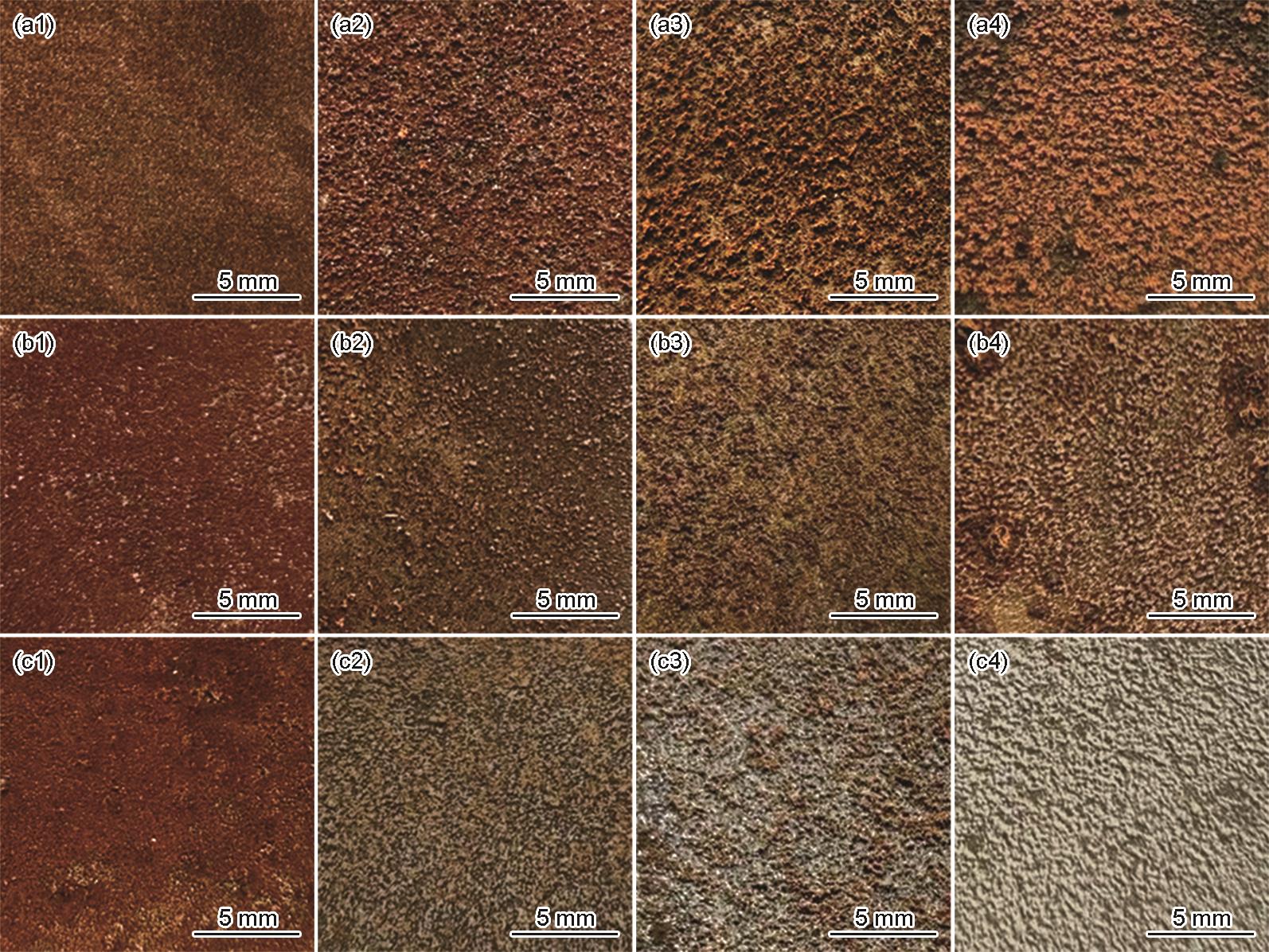

图3  54钢在不同pH的高矿化水中浸泡后的宏观形貌

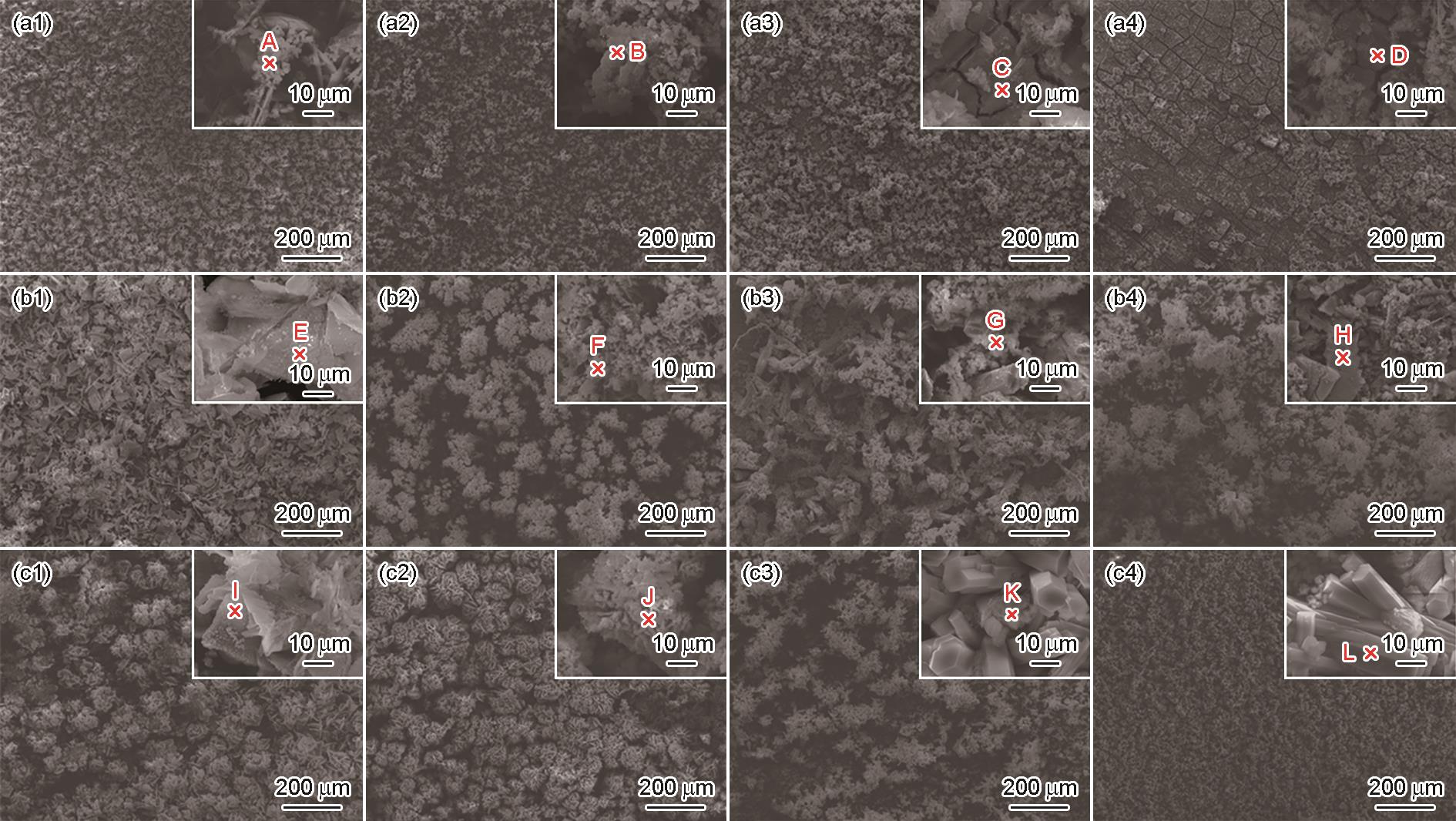

图4  54钢在不同pH的高矿化水中浸泡后的SEM表面形貌
PointsFeCaMgSClCuCrNi
A89.720.871.512.710.472.021.191.51
B89.730.861.520.800.901.691.473.03
C82.900.270.492.590.451.525.835.95
D74.210.290.924.610.83.077.218.89
E86.95.501.311.410.161.830.782.11
F81.59.231.982.240.281.690.72.38
G74.8216.762.341.330.201.840.951.76
H71.5817.893.541.49-2.760.52.24
I82.278.043.681.19-1.630.942.25
J50.4637.406.152.10-1.460.651.78
K23.9158.2213.091.13-1.600.71.35
L3.1683.453.980.92-4.271.322.90
表3  图4中A~L标记的EDS元素组成 (atomic fraction / %)

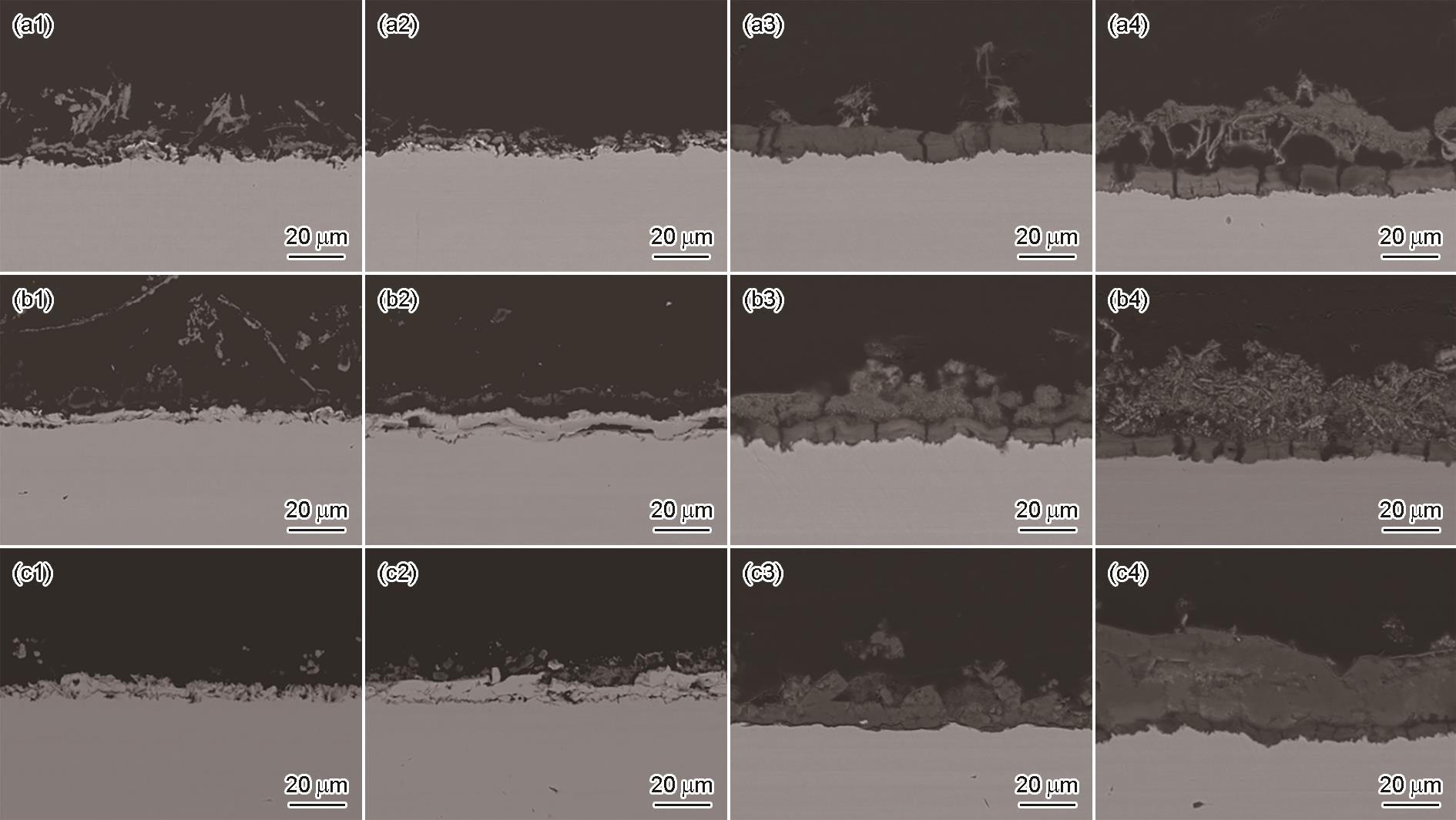

图5  54钢在不同pH的高矿化水中浸泡后的SEM截面形貌

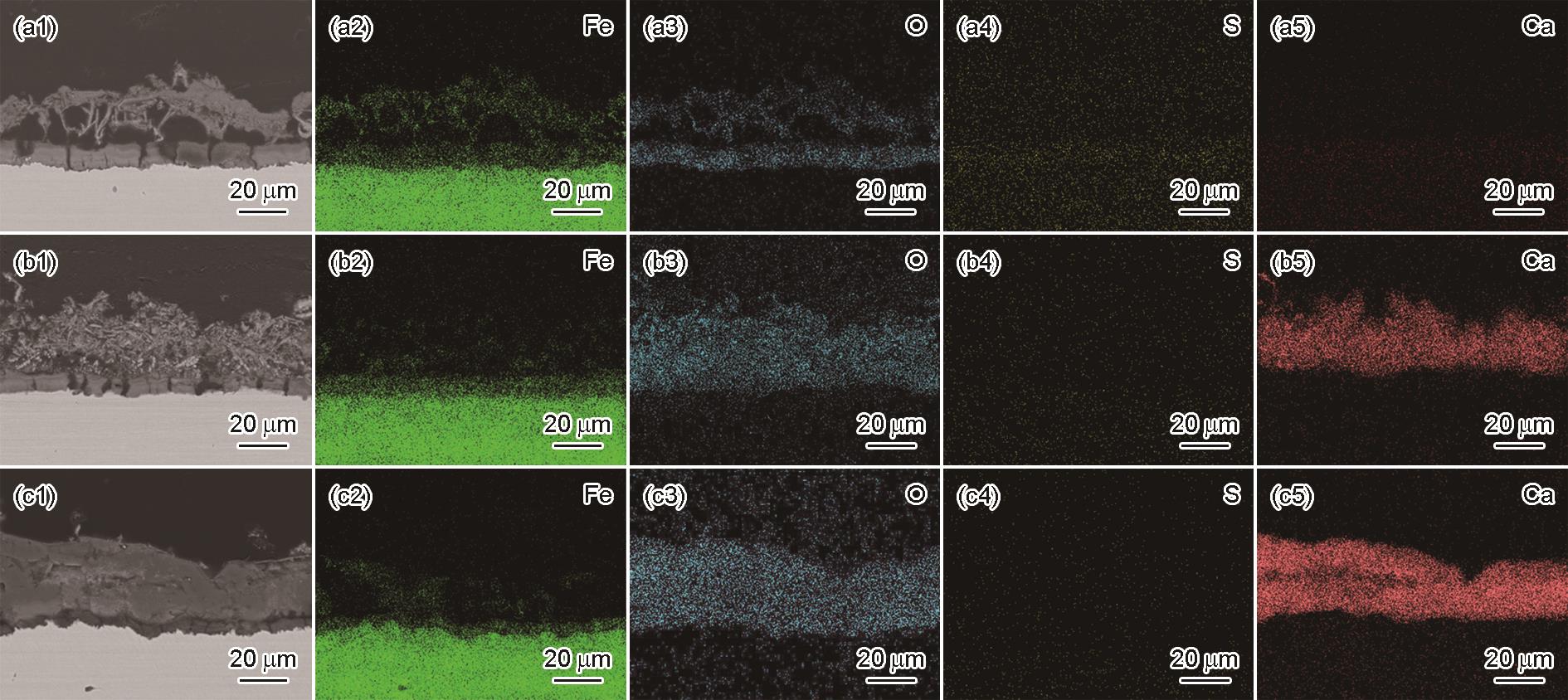

图6  54钢在不同pH的高矿化水中浸泡32 d截面形貌的EDS面扫描结果

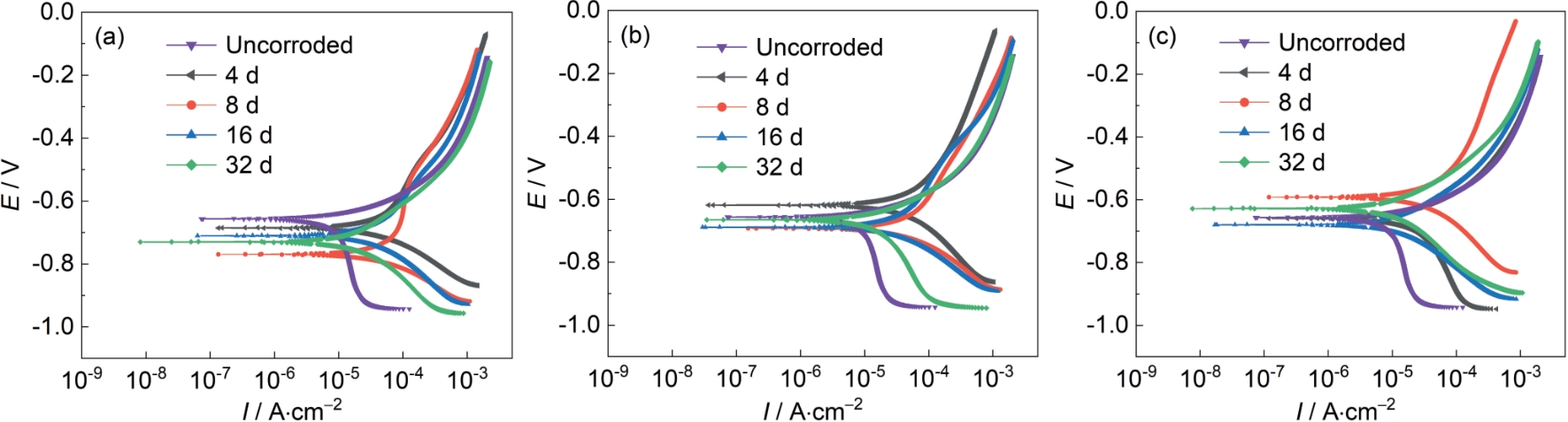

图7  54钢在不同pH的高矿化水中浸泡不同时间的极化曲线
SolutionEcorr / VIcorr / μA·cm-2
4 d8 d16 d32 d4 d8 d16 d32 d
pH 5-0.685-0.770-0.711-0.72233.25644.49226.38414.553
pH 8-0.620-0.692-0.689-0.67029.47335.69524.83212.379
pH 9-0.660-0.593-0.677-0.62415.39424.9119.8018.401
表4  图7极化曲线拟合结果

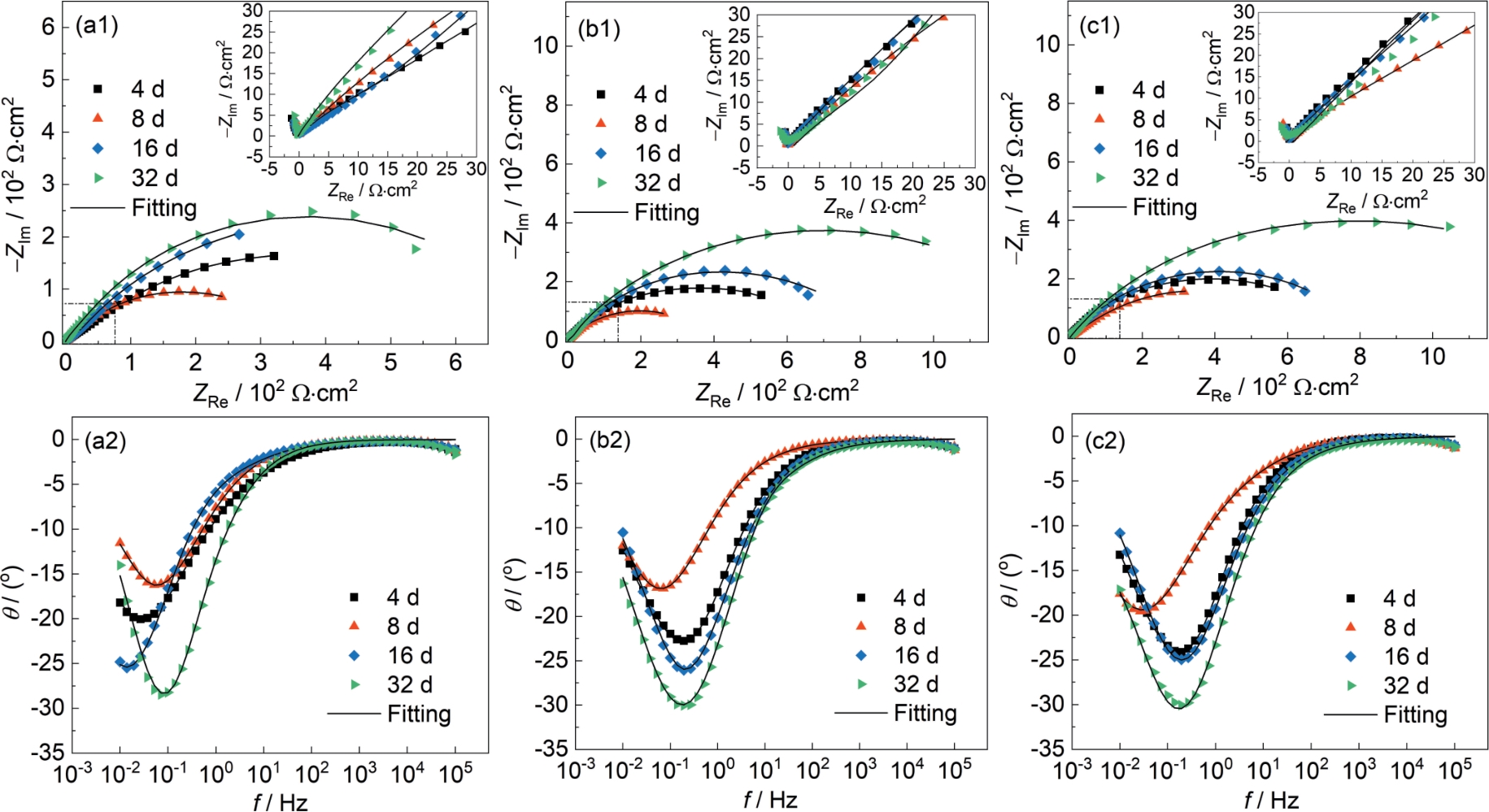

图8  54钢在不同pH的高矿化水中浸泡不同时间的EIS谱

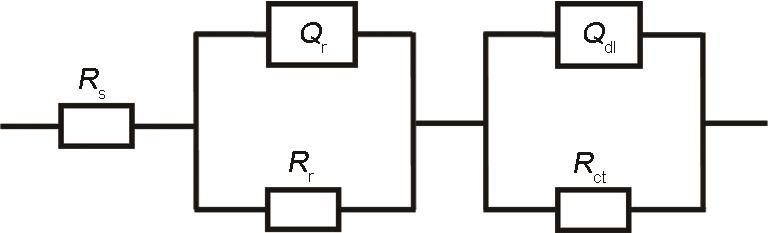

图9  用于EIS拟合的等效电路
SolutionTime / dRs / Ω⋅cm2QrRr / Ω⋅cm2QdlRct / Ω⋅cm2Rp / Ω⋅cm2
Yr / Ω-1⋅cm-2⋅S nnrYdl / Ω-1⋅cm-2⋅S nndl
pH 54175.410.76 × 10-3523.4 × 10-3633.59.482 × 10-3603.1 × 10-333.47666.97
8175.8301.6 × 10-3978.5 × 10-3354.49.025 × 10-3594.3 × 10-312.86367.26
16175.121.21 × 10-3409.5 × 10-3562.423.21 × 10-3762.2 × 10-3155.8718.2
32168.63.672 × 10-3735.9 × 10-3735.11.195 × 10-3760.0 × 10-3192.8927.9
pH 84167.2150.1 × 10-3637.4 × 10-3581.13.095 × 10-3636.6 × 10-391.94673.04
8167.518.58 × 10-3550.4 × 10-3400.07.670 × 10-3607.1 × 10-36.979406.979
16175.843.38 × 10-3372.6 × 10-3834.82.529 × 10-3627.0 × 10-328.44863.24
32179.13.586 × 10-3746.7 × 10-311774.608 × 10-3536.3 × 10-3517.81694.8
pH 94166.121.11 × 10-3937.4 × 10-3748.93.571 × 10-3612.9 × 10-330.41779.31
8174.512.22 × 10-3546.9 × 10-3676.28.259 × 10-3559.2 × 10-316.92693.12
16177.12.123 × 10-3635.2 × 10-3824.3362.7 × 10-6662.6 × 10-3151.1975.4
32179.52.502 × 10-3681.4 × 10-3153910.16 × 10-3454.2 × 10-3970.82509.8
表5  采用等效电路对EIS谱进行拟合得到的数据

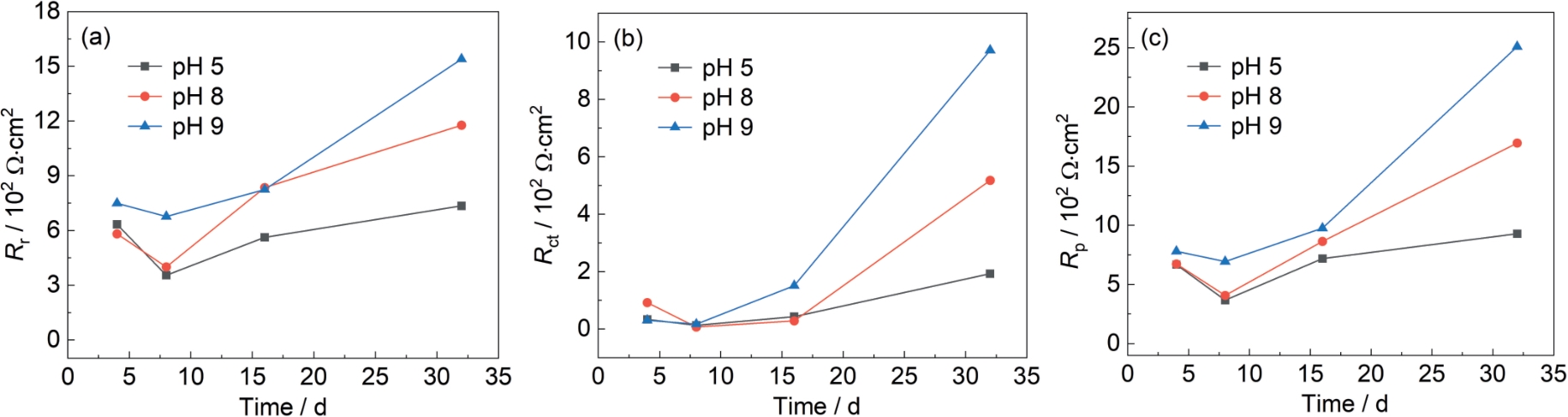

图10  54钢在不同pH的高矿化水中的腐蚀产物层电阻、电荷转移电阻和极化电阻
[1] Yang Y Z. On the damage of the erosive groundwater to the tunnel supporting system and treating techniques [J]. Traffic Eng. Technol. Natl. Def., 2015, 13(3): 48
[1] 杨玉庄. 侵蚀性地下水对隧道支护体系的破坏及处置技术 [J]. 国防交通工程与技术, 2015, 13(3): 48
[2] Yan Z, Wang Y C, Shao Y L, et al. Review on corrosion of high strength round link mining chain [J]. China Coal, 2022, 48(5): 47
[2] 闫 震, 王迎春, 邵云亮 等. 高强度矿用圆环链腐蚀研究综述 [J]. 中国煤炭, 2022, 48(5): 47
[3] Wang J, Song Y Q. Corrosion behavior of domestic chain steel in desulfurization wastewater of Baotou Power Plant [J]. J. Inner Mongolia Univ. Sci. Technol., 2017, 36: 240
[3] 王 娟, 宋义全. 13CrNi2Mo链条钢在电厂脱硫废水中的腐蚀行为 [J]. 内蒙古科技大学学报, 2017, 36: 240
[4] Lei L F. Study on stress corrosion mechanism and protection technology of bolt under high temperature and high humidity environment [D]. Xuzhou: China University of Mining and Technology, 2023
[4] 雷龙飞. 高温高湿环境下锚杆应力腐蚀机理及防护技术研究 [D]. 徐州: 中国矿业大学, 2023
[5] Huang Y, Ma L, Xu F B, et al. Effect of Cr content on corrosion resistance of low alloy steels in a high temperature, high pressure and high salinity environment [J]. Corros. Prot., 2022, 43(1): 38
[5] 黄 熠, 马 磊, 许发宾 等. Cr含量对低合金钢在高温高压高矿化度环境中耐腐蚀性能的影响 [J]. 腐蚀与防护, 2022, 43(1): 38
[6] Guo Y J, Li Y H, Xia D H, et al. Data analysis and physical model of electrochemical impedance spectroscopy for corrosion systems: Progresses and challenges [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 1143
[6] 郭玉杰, 李艳辉, 夏大海 等. 腐蚀电化学阻抗谱的数据解析与物理模型研究进展 [J]. 中国腐蚀与防护学报, 2025, 45: 1143
doi: 10.11902/1005.4537.2024.381
[7] Chu X W, Ju W J, Fu Y K. Study on pitting mechanism of rebar rockbolt in highly-mineralized mine water [J]. J. Min. Sci. Technol., 2021, 6: 305
[7] 褚晓威, 鞠文君, 付玉凯. 高矿化度矿井水中螺纹钢锚杆点蚀机制研究 [J]. 矿业科学学报, 2021, 6: 305
[8] Liu H L, Wang H C, Deng Z, et al. Discussion on the characteristics and genetic mechanism of highly mineralized formation water in deep coal-rock gas reservoirs of the ordos basin [J]. Nat. Gas Ind., 2025, 45(8): 17
[8] 刘洪林, 王怀厂, 邓 泽 等. 鄂尔多斯盆地深部煤岩气高矿化地层水特征与成因机制探讨 [J]. 天然气工业, 2025, 45(8): 17
[9] Wang P, Yang L P, Lin X J, et al. Distribution characteristics and formation of high mineralized saline groundwater in Hetao Plain, Inner Mongolia [J]. Yangtze River, 2018, 49(1): 44
[9] 王 平, 杨亮平, 林晓静 等. 内蒙古河套平原高矿化咸水分布规律及成因分析 [J]. 人民长江, 2018, 49(1): 44
[10] Yu Z Z, Ding X, Pu Z G, et al. Minewater quality evaluation and zero-emission resource utilization in Huayu mining area [J]. Coal Geol. China, 2018, 2023, 35(2): 41
[10] 于智卓, 丁 湘, 蒲治国 等. 华昱矿区矿井水水质评价及零排放资源化利用 [J]. 中国煤炭地质, 2023, 35(2): 41
[11] Wang Y T, Wang H, Wang T T, et al. Hydrochemical characteristics and source analysis of mine water in shallow coal seams in Shaanxi and Inner Mongolia contiguous area [J]. Coal Geol. Explor., 2023, 51(4): 85
[11] 王昱同, 王 皓, 王甜甜 等. 蒙陕接壤区浅埋煤层矿井水水化学特征及来源分析 [J]. 煤田地质与勘探, 2023, 51(4): 85
[12] Liu H T, Zhou G D, Han Z J, et al. Research on the influence of major ions in weakly alkaline mine water on anchor cable corrosion and protection technique [J]. Case Stud. Constr. Mater., 2024, 21: e03584
[13] Wang L T, Hu W Y, Huang G B, et al. Effects of Cl- on pitting corrosion of 304 stainless steel pipes in the presence of different residual stresses [J]. J. Xi'an Jiaotong Univ., 2022, 56(11): 104
[13] 王亮添, 胡文钰, 黄国斌 等. 残余应力存在时Cl-对304不锈钢管道点蚀行为的影响 [J]. 西安交通大学学报, 2022, 56(11): 104
[14] Hu J, Hu S P, Ji Z K, et al. Hydro-geochemical characteristics of burnt rocks aquifer in Shenfu Mining Area and its implications [J]. Saf. Coal Mines, 2024, 55(8): 167
[14] 胡 俭, 呼少平, 姬中奎 等. 神府矿区烧变岩水化学特征及其指示意义 [J]. 煤矿安全, 2024, 55(8): 167
[15] Li S Q, Du Z W. Summary of research on corrosion of mine anchor rods: Factors, mechanisms and anticorrosion technologies [J]. Ind. Miner. Process., 2024, 53(8): 62
[15] 李帅乾, 杜兆文. 矿井锚杆腐蚀研究综述: 因素、机理及防腐技术 [J]. 化工矿物与加工, 2024, 53(8): 62
[16] Cao G W, Liu Y W, Zhang D D, et al. Corrosion behavior of Q235 and Q345 carbon steel in Hongyanhe atmosphere [J]. Corros. Prot., 2018, 39: 24
[16] 曹公望, 刘雨薇, 张丹丹 等. Q235和Q345钢在红沿河大气环境中的腐蚀行为 [J]. 腐蚀与防护, 2018, 39: 24
[17] Jiang H B, Li Q, Xu W, et al. Effect of Ce on the microstructure and corrosion resistance of Zn-Al-Mg alloy coatings [J]. Mater. Prot., 2024, 57(1): 14
[17] 蒋红兵, 李 强, 徐 巍 等. Ce对Zn-Al-Mg合金镀层组织和耐腐蚀性能的影响 [J]. 材料保护, 2024, 57(1): 14
[18] Li X H, Cao G W, Guo M X, et al. Influence of Cl- and SO2 on carbon steel Q235, pipeline steel L415 and pressure vessel steel 16MnNi corrosion behavior in industrial and marine atmosphere environment [J]. Int. J. Electrochem. Sci., 2021, 16: 21126
doi: 10.20964/2021.12.06
[19] Zhang Q C, Wu J S, Wang J J, et al. Corrosion behavior of weathering steel in marine atmosphere [J]. Mater. Chem. Phys., 2003, 77: 603
doi: 10.1016/S0254-0584(02)00110-4
[20] Xing X K, Ma C F, Chen Y C. A experimental study of influence of pH on calcium carbonate crystallization fouling [J]. Petro-Chem. Equip., 2004, 33(5): 11
[20] 邢晓凯, 马重芳, 陈永昌. 溶液pH值对碳酸钙结垢的影响 [J]. 石油化工设备, 2004, 33(5): 11
[21] Dai Z D, Ji M T, Gu J C. Protective Effect of calcium-magnesium deposits on steel during cathodic protection in seawater [J]. Oceanol. Limnol. Sin., 1966, 8: 51
[21] 戴锺道, 季明堂, 顾锦城. 鋼铁在海水中阴极保护时鈣鎂覆盖层的保护作用 [J]. 海洋与湖沼, 1966, 8: 51
[22] Tang Y J. Research on the corrosion behavior of carbon steel under CaCO3 scale based on NaCl ASP flooding system [D]. Daqing: Northeast Petroleum University, 2025
[22] 唐玉姬. 基于NaCl三元复合驱体系CaCO3垢下碳钢腐蚀行为研究 [D]. 大庆: 东北石油大学, 2025
[23] Pan J Y, Chen H H, Ma F, et al. Corrosion behavior of low alloy steels in high-mineralized mine water [J]. J. Chin. Soc. Corros. Prot., 2016, 36: 253
[23] 潘俊艳, 陈华辉, 马 峰 等. 低合金钢在高矿化度矿井水环境下的腐蚀行为 [J]. 中国腐蚀与防护学报, 2016, 36: 253
doi: 10.11902/1005.4537.2015.128
[24] Zhu T Z. Investigation on the electrochemical corrosion-induced CaCO3 scaling at the steel/water interface [D]. Dalian: Dalian University of Technology, 2019
[24] 朱田震. 钢/水界面电化学腐蚀诱导CaCO3结垢行为研究 [D]. 大连: 大连理工大学, 2019
[25] Smith D C, Mcenaney B. The influence of dissolved oxygen concentration on the corrosion of grey cast iron in water at 50 ℃ [J]. Corros. Sci., 1979, 19: 379
doi: 10.1016/0010-938X(79)90037-4
[26] Oh S J, Cook D C, Townsend H E. Atmospheric corrosion of different steels in marine, rural and industrial environments [J]. Corros. Sci., 1999, 41: 1687
doi: 10.1016/S0010-938X(99)00005-0
[27] Liu S, Wu L P, Li J L, et al. Corrosion behavior of steel rebar in iron tailings-based geopolymers in saline-alkali environment [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 1371
[27] 刘 硕, 吴立朋, 李京伦 等. 盐碱地环境下铁尾矿基地聚物中钢筋锈蚀行为 [J]. 中国腐蚀与防护学报, 2025, 45: 1371
[28] Ding G Q, Li X Y, Zhang B, et al. Variation of free corrosion potential of several metallic materials in natural seawater [J]. J. Chin. Soc. Corros. Prot., 2019, 39: 543
[28] 丁国清, 李向阳, 张 波 等. 金属材料在天然海水中的腐蚀电位及其变化规律 [J]. 中国腐蚀与防护学报, 2019, 39: 543
doi: 10.11902/1005.4537.2019.233
[29] Song X X. Study on initial corrosion behavior of carbon steel in typical environments of nuclear power plants [D]. Hefei: University of Science and Technology of China, 2020
[29] 宋学鑫. 碳钢在核电站典型环境中的初期腐蚀行为研究 [D]. 合肥: 中国科学技术大学, 2020
[30] Li X H, Cao G W, Guo M X, et al. Initial corrosion behavior of carbon steel Q235, pipeline steel L415, and pressure vessel steel 16MnNi under high humidity and high irradiation coastal-industrial atmosphere in Zhanjiang [J]. Acta. Metall. Sin., 2023, 59: 884
doi: 10.11900/0412.1961.2021.00305
[30] 李小涵, 曹公望, 郭明晓 等. 低碳钢Q235、管线钢L415和压力容器钢16MnNi在湛江高湿高辐照海洋工业大气环境下的初期腐蚀行为 [J]. 金属学报, 2023, 59: 884
doi: 10.11900/0412.1961.2021.00305
[31] Mao X F, Liu X Y, Liu S Q, et al. Effect of CTAB on the corrosion behavior of SA210C steel in an acidic environment [J]. Plat. Finish., 2024, 46(11): 9
[31] 毛晓飞, 刘宣义, 刘帅岐 等. CTAB对SA210C钢在酸性环境中腐蚀电化学行为的影响 [J]. 电镀与精饰, 2024, 46(11): 9
[32] Liu Y W, Zhao H T, Wang Z Y. Initial corrosion behavior of carbon steel and weathering steel in Nansha marine atmosphere [J]. Acta. Metall. Sin., 2020, 56: 1247
doi: 10.11900/0412.1961.2020.00013
[32] 刘雨薇, 赵洪涛, 王振尧. 碳钢和耐候钢在南沙海洋大气环境中的初期腐蚀行为 [J]. 金属学报, 2020, 56: 1247
doi: 10.11900/0412.1961.2020.00013
[33] Yamashita M, Miyuki H, Matsuda Y, et al. The long term growth of the protective rust layer formed on weathering steel by atmospheric corrosion during a quarter of a century [J]. Corros. Sci., 1994, 36: 283
doi: 10.1016/0010-938X(94)90158-9
[34] Wang M N, Qiao C, Jiang X L, et al. Microstructure induced galvanic corrosion evolution of SAC305 solder alloys in simulated marine atmosphere [J]. J. Mater. Sci. Technol., 2020, 51: 40
doi: 10.1016/j.jmst.2020.03.024
[35] Yang Y Q, Wang C, Liu Y W, et al. Corrosion behaviour analysis of galvanised steel in severe marine and extremely cold climatic conditions [J]. Corros. Eng. Sci. Technol., 2025, doi: 10.1177/1478422X251356126
[36] Huang Z B, Liu G M, Fan W X, et al. Effect of passivation time on corrosion resistance of 304 stainless steel [J]. J. Chin. Soc. Corros. Prot., 2025, 45: 1741
[36] 黄泽邦, 刘光明, 范文学 等. 钝化时间对304不锈钢耐蚀性能的影响 [J]. 中国腐蚀与防护学报, 2025, 45: 1741
doi: 10.11902/1005.4537.2025.023
[1] 黎敏, 魏高飞, 邓书端, 李向红. 扫描电化学显微镜(SECM)在缓蚀剂研究中的进展与展望[J]. 中国腐蚀与防护学报, 2026, 46(5): 1326-1342.
[2] 谢敬礼, 王友志, 乔书振, 牛佳雨, 郝龙, 曹胜飞, 王俭秋. 高放废物地质处置库近场环境中碳钢腐蚀产物演化研究进展[J]. 中国腐蚀与防护学报, 2026, 46(5): 1343-1352.
[3] 郑凯, 王艺陶, 王东胜, 刘伟, 蒋颖畅, 黄嵘, 常雪婷. 腐蚀-应力耦合作用对极地船用螺旋桨低碳马氏体不锈钢失效机理影响研究[J]. 中国腐蚀与防护学报, 2026, 46(5): 1452-1462.
[4] 王兴斌, 李家民, 伍登骏, 唐伟能, 杨静, 郭嘉成, 杨欣宇, 侯娟. Al含量对Mg-xAl-Zn合金耐腐蚀性能的影响[J]. 中国腐蚀与防护学报, 2026, 46(5): 1560-1568.
[5] 叶海锋, 沈书成, 陈江华. 增材制造316L不锈钢在不同温度海水环境中的腐蚀行为研究[J]. 中国腐蚀与防护学报, 2026, 46(5): 1569-1578.
[6] 黄胡灵彤, 王成, 程学群, 杨小佳, 张占武, 黎亮. Q235碳钢在模拟南疆土壤中的腐蚀行为[J]. 中国腐蚀与防护学报, 2026, 46(5): 1595-1604.
[7] 俞春林, 顾铭飞, 孙一昂, 袁可鑫, 杨静, 王丽熙, 朱承飞, 朱海奎. 海洋环境中316不锈钢表面喷涂粉末涂层的耐久性评估[J]. 中国腐蚀与防护学报, 2026, 46(5): 1627-1633.
[8] 雍兴跃, 董晓梅, 高新华, 李卓玄, 陈燕飞, 纪灏天. 电化学阻抗谱在有机涂层研究中的应用[J]. 中国腐蚀与防护学报, 2026, 46(4): 945-961.
[9] 柯定芳, 吴芳芳, 朱兆彬, 谢声益, 洪静, 陈悦, 李亮, 李昊, 曹发和. 氧化石墨烯/铈基金属有机框架构筑高稳定长耐蚀防护涂层[J]. 中国腐蚀与防护学报, 2026, 46(4): 1095-1106.
[10] 黄涛, 朱宇, 邓宇, 王岐山, 田一晨, 陈旭. 氢对X65钢及其焊缝力学性能及腐蚀行为影响[J]. 中国腐蚀与防护学报, 2026, 46(4): 1107-1116.
[11] 徐慧强, 赖长清, 王茜茜, 王子明. 基于海水循环模拟系统的牺牲阳极材料对B30传热管腐蚀行为影响研究[J]. 中国腐蚀与防护学报, 2026, 46(4): 1139-1147.
[12] 周炜龙, 郭玉冰, 胡梦茹, 沈凯杰, 杨正桓, 谢林君. 磷酸钠浓度对40Cr钢耐蚀性能的影响[J]. 中国腐蚀与防护学报, 2026, 46(4): 1185-1196.
[13] 陆海峰, 缪强, 梁文萍, 姚志猛, 魏少翀, 陈国星. 激光清洗对不锈钢表面耐腐蚀性能的影响[J]. 中国腐蚀与防护学报, 2026, 46(4): 1227-1237.
[14] 林莉, 毕诗浩, 付磊, 蹇科, 张千. D-酪氨酸增强AH36船体钢四羟甲基硫酸磷杀菌腐蚀防护效用研究[J]. 中国腐蚀与防护学报, 2026, 46(4): 1238-1248.
[15] 庞钰, 张文艳, 庞榆, 王锡伟, 汪凤, 凌涛强, 李文坡. 环境及防腐层特性对集输管道外腐蚀的影响规律[J]. 中国腐蚀与防护学报, 2026, 46(4): 1249-1256.
