对于Mg-Li二元合金[12,13]，当Li含量小于5.7%(质量分数，下同)时，合金由Li固溶在Mg中的单相α-Mg(HCP)组成；当Li含量超过11%时，合金由Mg固溶在Li中的单相β-Li(BCC)组成；当Li含量在5.7%~11%时，合金由α-Mg和β-Li双相组成。有研究[14,15]指出(α + β)双相Mg-Li合金中存在的腐蚀微电偶对是导致其耐蚀性较差的重要原因。Gu等[16]对Mg-8Li-3Al-2Zn合金的研究表明，合金中添加Y可以在晶界处析出充当阴极保护相的Al2Y颗粒，降低α-Mg和β-Li的电偶腐蚀速率。Morishige等[17]研究表明添加适量的Al可抑制Mg-14Li合金(β单相)的剥落腐蚀，但过量的Al会导致AlLi相的析出，其与基体形成腐蚀微电偶对，降低合金的耐蚀性。这些研究为研制具有优异耐蚀性能的Mg-Li合金指明了方向，即抑制合金中腐蚀微电偶对的形成，提高合金的电化学均匀性。
作者[18]前期对Mg-11Li-3Al-1(Zr, Y)合金的研究表明Mg3Al纳米析出相对提高Mg-Li合金的强度具有重要影响，并基于此进一步设计了具有单相β结构的Mg-15Li-6Al合金(密度仅为1.32 g·cm-3)，实验表明该合金的比强度高达311 kN·m·kg-1，超过了绝大多数工程轻质合金；同时，该合金表现出优异的热稳定性，其室温稳定性是商用Mg-14Li-1Al (LA141)合金的两倍多，展现出良好的轻量化应用前景。然而，关于该合金的耐蚀性还未曾有过深入研究。本文选用Mg-15Li-6Al合金作为实验材料，详细研究了经过不同的热处理工艺后合金的耐蚀性能，分析了微观组织对其耐蚀性能的影响机理，旨在为发展新一代具有超轻、高强韧和高耐蚀特征的Mg-Li合金提供实验依据和理论参考。
1 实验方法
选用真空感应熔炼后在坩埚里边缓慢冷却成型的Mg-15Li-6Al (LA156)合金作为实验材料，在LA156铸锭上线切割3个尺寸为20 mm × 10 mm × 7.5 mm的试样块，其中一个不做热处理而保持铸态，对余下的两个先进行固溶处理，固溶温度为400℃，保温1 h，然后分别进行两种冷却处理：空冷和水冷，再用线切割在不同的试样块上切取10 mm × 10 mm × 1.5 mm的试片若干。试片经SiC砂纸从320#逐级研磨至1500#，然后抛光直至表面光亮，采用体积分数为3%的硝酸酒精作为腐蚀剂，腐蚀时间3~5 s，然后清洗吹干备用。
采用CS31OH电化学工作站测试试样在3.5%NaCl溶液中的动电位极化曲线，测试过程采用三电极体系，辅助电极为Pt电极，参比电极为饱和甘汞电极(SCE)，工作电极为用环氧树脂封装的待测试样，工作面积为1 cm2，动电位极化曲线扫描速率为5 mV/s。
采用失重法测试不同状态合金的腐蚀速率，腐蚀介质为3.5%NaCl溶液，试样在其中的浸泡时间为40 h。浸泡实验结束后，把样品放入铬酸溶液中15 min，去除附着在表面的腐蚀产物，清洗干净，冷风吹干，采用型号为AB104-S的电子天平(精度0.1 mg)称量腐蚀前后合金质量的变化。采用数码相机拍摄样品的宏观腐蚀形貌，并用KH-7700三维体式显微镜测试腐蚀坑的深度。采用场发射扫描电镜(FESEM，FEI Navo450)观察铸态、空冷和水冷3种状态试样的显微组织，采用X射线衍射仪(XRD，Bruker D8 ADVANCE)分析合金基体和腐蚀产物的相组成。
2 结果与讨论
2.1 不同处理方式合金的微观组织

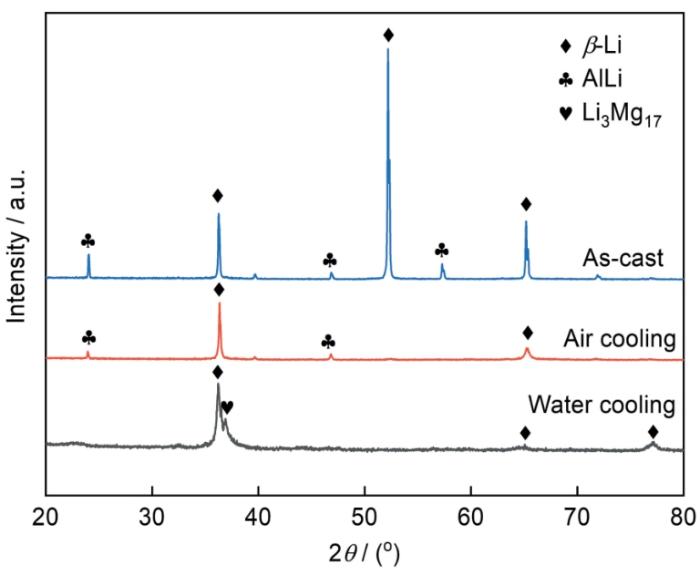

图1所示为铸态LA156合金以及其固溶处理并分别经过空冷和水冷后合金的XRD谱。可以看出，铸态合金由大量β-Li和少量AlLi相组成；经过固溶处理并空冷后，合金中依然存在β-Li相和AlLi相，但AlLi相的衍射峰明显降低；而固溶处理并水冷后，合金中AlLi相的衍射峰消失，而出现少量的Li3Mg17，即Li在α-Mg中的固溶相。该结果表明，随着固溶处理后冷却速率的加快，合金中的AlLi相逐渐减少，以致XRD已检测不到水冷试样中的AlLi相。
图1
图2
图2

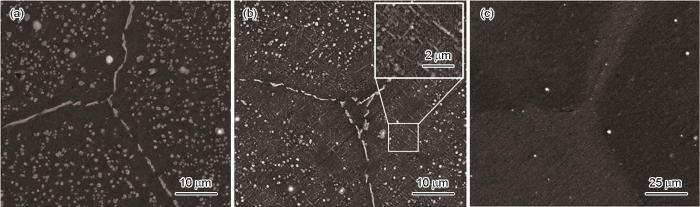

不同状态LA156合金的微观组织
Fig.2
Microstructures of different state LA156 alloys: (a) as-cast, (b) air cooling, (c) water cooling
2.2 不同处理方式合金在3.5%NaCl水溶液中的腐蚀行为
图3所示为铸态LA156合金以及其固溶处理并分别经过空冷和水冷后在3.5%NaCl水溶液中浸泡40 h去除腐蚀产物后的宏观形貌。可以看出，铸态试样和固溶空冷态试样发生了较为严重的腐蚀，试样边缘已经溶解，表面呈现明显的凹凸不平；而固溶水冷态试样则基本仍维持了其浸泡前较规则的外形，且试样表面较平整，说明其腐蚀程度在这3种试样中最轻，耐蚀性最佳。
图3
图3

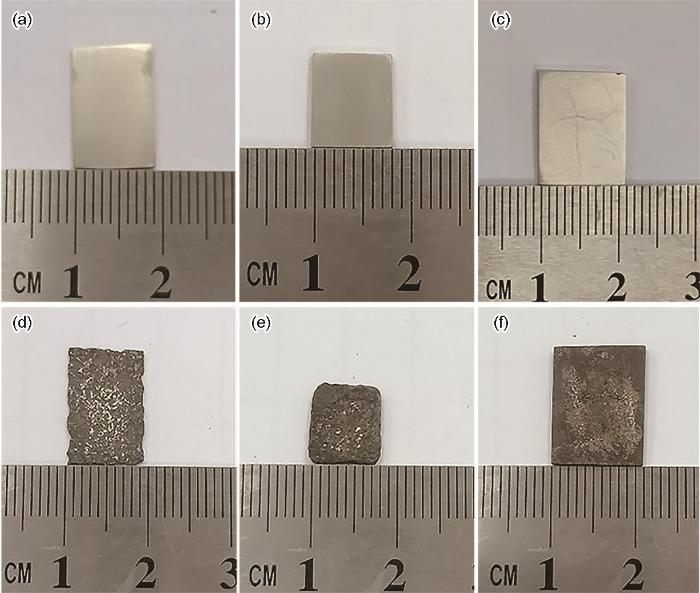

不同状态LA156合金在3.5%NaCl溶液中浸泡40 h前后的宏观形貌
Fig.3
Macroscopic morphologies of different state LA156 alloys before (a-c) and after (d-f) 40 h immersion in 3.5%NaCl solution: (a, d) as-cast, (b, e) air cooling, (c, f) water cooling
图4所示为用三维体视显微镜观察上述3种不同状态的LA156合金试样经过40 h浸泡后的表面局部腐蚀形貌。由图可见，铸态试样、固溶空冷态试样和固溶水冷态试样表面的腐蚀坑最大深度分别为157.1、89.1 和60.7 μm，表明固溶处理降低了合金的局部腐蚀程度，提高了合金的耐蚀性，且固溶水冷态试样耐蚀性能最好。
图4
图4

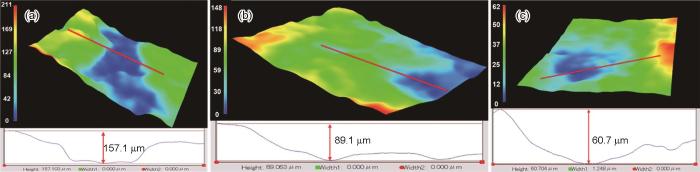

不同状态LA156合金在3.5%NaCl溶液中浸泡40 h后的局部腐蚀形貌
Fig.4
Localized morphologies of different state LA156 alloys after 40 h immersion in 3.5%NaCl solution: (a) as-cast, (b) air cooling, (c) water cooling
图5所示为上述3种不同状态的LA156合金试样经过40 h浸泡后，利用失重法计算的腐蚀速率柱状图。由图可知，铸态试样的腐蚀速率最大，固溶空冷态试样和固溶水冷态试样的腐蚀速率分别为铸态试样的19.2%和5.9%。该结果也表明铸态试样的耐蚀性最差，而通过固溶处理之后的空冷试样和水冷试样的耐蚀性有所提高，且水冷试样耐蚀性最好。
图5
图5

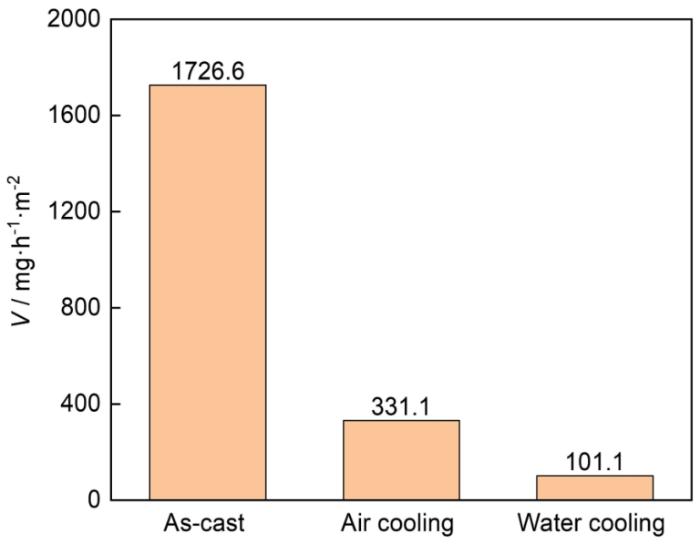

不同状态LA156合金在3.5%NaCl溶液中的腐蚀速率
Fig.5
Corrosion rates of different state LA156 alloys in 3.5%NaCl solution

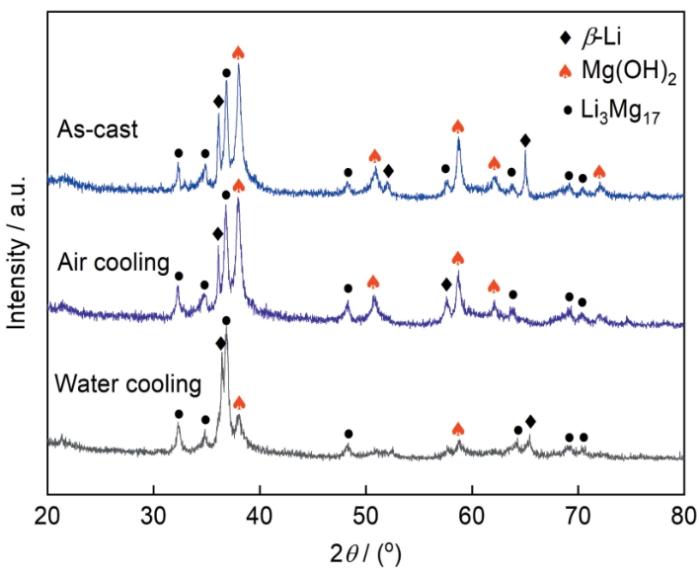

图6为上述3种不同状态的LA156合金试样经过40 h浸泡后的腐蚀产物XRD谱。3种试样腐蚀产物的主要成分均为Mg(OH)2，其中，铸态试样的Mg(OH)2衍射峰最强，其次为固溶空冷态试样，而固溶水冷态试样的Mg(OH)2衍射峰最低。该结果表明，铸态试样腐蚀产物最多，即腐蚀最严重，而固溶空冷态试样和固溶水冷态试样耐蚀性比铸态试样更好，并且水冷试样的Mg(OH)2的衍射峰最低，表明该试样形成的腐蚀产物最少，即固溶水冷态试样的耐蚀性最好。Mg(OH)2呈现疏松多孔的结构，无法有效保护合金基体[12,20]。此外，在3种试样的腐蚀产物中均没有检测到Li2CO3，这可能与3.5%NaCl水溶液是由去离子水配制有关，CO2在去离子水中的溶解度非常有限，并且NaCl能够降低CO2在水溶液中的溶解度[21]。
图6
图6
不同状态LA156合金在3.5%NaCl溶液中浸泡40 h后的XRD谱
Fig.6
XRD patterns of different state LA156 alloys after 40 h immersion in 3.5%NaCl solution
2.3 不同处理方式合金在3.5%NaCl水溶液中的极化行为
图7所示为3种不同状态的LA156合金试样的动电位极化曲线，表1为通过Tafel外推法获得的腐蚀电位(Ecorr)和腐蚀电流密度(Icorr)。由于金属Mg和Li的电极电位均低于析氢反应的平衡电极电位，所以Mg-Li合金的阴极反应主要为析氢反应，阳极反应为合金的活性溶解[22,23]。从图7和表1可知，铸态试样的腐蚀电位为-1.57 V，空冷试样的腐蚀电位为-1.46 V，水冷试样的腐蚀电位为-1.09 V。固溶处理后，空冷试样和水冷试样的腐蚀电位相比铸态试样分别提高了110和480 mV。铸态试样腐蚀电流密度为0.90 × 10-3 A·cm-2，空冷试样为1.50 × 10-4 A·cm-2，水冷试样为1.48 × 10-6 A·cm-2。固溶处理后，空冷试样和水冷试样的腐蚀电流密度比铸态试样分别降低了大约1个和3个数量级。该电化学测试结果表明LA156合金经固溶处理后耐蚀性大幅提高，且水冷试样比空冷试样具有更优异的耐蚀性能。
图7
图7

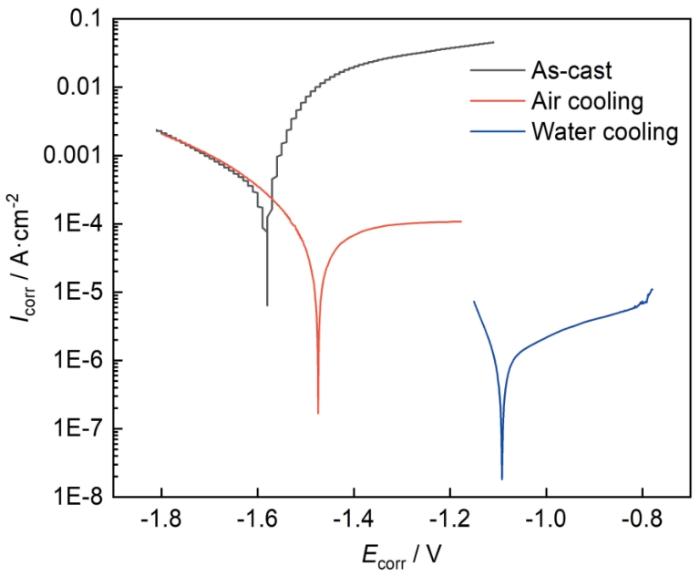

不同状态LA156合金在3.5%NaCl溶液中的极化曲线
Fig.7
Polarization curves of different state LA156 alloys in 3.5%NaCl solution
表1 极化曲线拟合结果
Table 1
| Sample state | Ecorr (vs. SCE) /V | Icorr / A·cm-2 |
|---|---|---|
| As-cast | -1.57 | 0.90 × 10-3 |
| Air cooling | -1.46 | 1.50 × 10-4 |
| Water cooling | -1.09 | 1.48 × 10-6 |
图8
图8

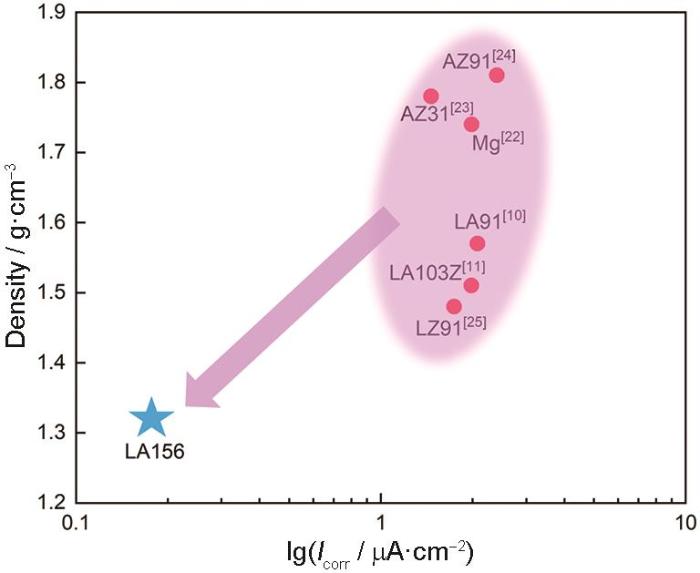

水冷态LA156合金与纯Mg及其它Mg(-Li)合金密度与腐蚀电流密度的比较
Fig.8
Comparison of density and corrosion current density of water cooling LA156 with pure Mg and some Mg(-Li) alloys
通过对浸泡后试样的宏观形貌观察、腐蚀速率计算以及极化曲线结果分析，固溶处理能够有效地提高LA156合金的耐蚀性能，并且固溶处理后水冷处理试样的耐蚀性要比空冷处理试样的耐蚀性更好。根据显微组织观察和XRD分析，这与固溶处理后合金微观组织的变化有关。研究[12,16]指出，AlLi颗粒可以与β-Li基体形成腐蚀微电偶对，且AlLi的标准电极电位比β-Li基体更低，腐蚀微电偶对的存在显著增大了合金的腐蚀速率。在本研究中，铸态试样的晶粒内部和晶界处均析出了大量的AlLi，合金发生严重的电偶腐蚀，导致其耐蚀性较差。固溶处理使更多的Al固溶于β-Li中，空冷处理后AlLi析出相的数量和尺寸相比铸态试样均有所减小，AlLi与β-Li两相间腐蚀微电偶对的数量也相应减少，所以其腐蚀速率降低。固溶处理后进行水冷处理，绝大部分Al仍固溶于β-Li中，这是由于高冷却速率显著抑制了AlLi相的析出。一方面，基体中固溶更多的Al有助于提升合金的自腐蚀电位；另一方面，AlLi相体积分数的显著减小也极大地降低了AlLi与β-Li之间的电偶腐蚀速率[17,26]。
3 结 论
(1) Mg-15Li-6Al铸态合金主要由β-Li和AlLi析出相组成，通过固溶处理可以减少合金中AlLi析出相的体积分数，尤其是固溶处理后进行水冷处理的合金基体组织基本由单相β-Li组成。
(2) 3.5%NaCl水溶液中浸泡验和极化曲线测试表明3种不同状态Mg-15Li-6Al合金的耐蚀性由低到高的顺序为：铸态<固溶空冷态<固溶水冷态，且固溶处理后进行水冷使合金的自腐蚀电位提高了480 mV，自腐蚀电流密度降低了3个数量级。
(3) 固溶处理使得Al有效回溶到β-Li基体中，随后的快速冷却有效抑制了AlLi相的析出，提高了合金组织的电化学均匀性，导致AlLi与β-Li两相间腐蚀微电偶对的数量减少，合金的耐蚀性显著提高。
