一般采用气相充氢和电化学充氢两种方式研究氢对金属性能的影响。气相充氢速度相对较慢，氢溶解量低，适合用来研究氢在金属表面的吸附过程。电化学充氢简便易行，且充氢速度较快，氢扩散程度较大，氢溶解量更高，更适合用来研究氢被捕获后对金属性能影响的研究。氢原子进入钢中分为氢在钢表面吸附和在钢中扩散两个过程。由于氢分子很难直接进入钢中，环境中的H2分子在金属(M)表面吸附成为H2M，H2M分解成吸附HM原子才能进入钢中[12]，导致氢脆发生。氢脆分为氢致塑性损伤、氢鼓泡、氢腐蚀和氢致裂纹等几种类型[13]，其敏感性取决于多个因素，包括材料的化学成分、实际服役环境、充氢条件及实验条件等[14]，各因素均会不同程度影响氢浓度和氢扩散速率，其与应力组合导致金属的氢脆或氢致开裂。周成双等[15]探究了晶体缺陷对预充氢X80管线钢氢脆行为的影响，发现位错是预变形过程中氢陷阱的主要来源。刘玉等[16]研究了管线钢在模拟深海环境中的氢脆敏感性，认为氢原子的渗入削弱了钢材内部不同组织间的结合强度，从而导致材料宏观力学性能的降低，与吸附降低表面能理论相符。此外，与母材相比，焊缝组织具有更高的氢捕获能力，更容易形成氢致裂纹[17]。焊缝中夹杂物、位错、析出相等缺陷比母材高。夹杂物的数量、形态、尺寸及分布以及管道钢的组织结构会影响氢的扩散率和捕获率，从而影响氢脆的敏感性[18]。陈旭等[19]采用电化学氢渗透方法探究了阴极保护电位对X80钢母材及其焊缝在鹰潭土壤环境中氢腐蚀行为的影响，结果表明，针状铁素体与珠光体结构对氢的扩散过程具有较为明显的阻碍效果。Shirband等[20]采用电化学渗透方法研究X70管线钢中的氢渗透行为，表明氢扩散系数随晶粒尺寸增加而增加，晶格扩散是主要的氢扩散机制。
本文采用电化学充氢方法对X65钢母材及焊缝进行充氢，通过扫描电镜(SEM)和电化学测试研究了氢对X65钢母材及焊缝腐蚀行为的影响；采用慢应变速率拉伸方法研究了氢对力学性能的影响。研究结果将为我国油气管道氢腐蚀提供理论基础及数据支撑。
1 实验方法
1.1 实验材料
表1 X65管线钢化学成分 (mass fraction / %)
Table 1
| Material | C | Si | Mn | P | S | Cu | Ti | Cr | Al | Ni | V | Nb | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Base metal | 0.11 | 0.28 | 1.38 | 0.015 | 0.028 | 0.02 | 0.02 | 0.02 | 0.06 | 0.02 | 0.06 | 0.04 | Bal. |
| Weld joint | 0.07 | 0.18 | 1.51 | 0.020 | 0.004 | 0.02 | 0.02 | 0.04 | 0.02 | 0.02 | 0.06 | 0.06 | Bal. |
图1
图1
X65管线钢母材及其焊缝金相组织
Fig.1
Microstructure of X65 pipeline steel of base metal (a) and welds (b)
1.2 氢捕获量测量
电化学充氢试样尺寸为10 mm × 10 mm × 2 mm。将铜导线点焊于试样背面，并采用环氧树脂对非工作表面封装，留出1 cm2的工作面积。用水砂纸对试样表面进行梯度机械打磨，并用金刚石抛光膏将样品抛光至镜面。用丙酮和无水乙醇清洗样品后吹干待用。
SEM (SU8010)下观察不同充氢电流密度和充氢时间下X65钢母材和焊缝试样形貌。
1.3 电化学实验
采用电化学方法评价电化学充氢对X65钢母材及焊缝腐蚀行为的影响。电化学实验在Zennium-40555型电化学工作站上完成。采用三电极体系，工作电极为X65钢母材和焊缝，辅助电极为Pt电极，参比电极为饱和甘汞电极(SCE)，实验溶液为3.5% (质量分数) NaCl溶液。电化学充氢条件与氢捕获量测试相同。充氢后静置1 h，待开路电位稳定后进行动电位极化曲线测试。动电位极化曲线测试电位扫描范围-1.2~0.0 V (SCE)，扫描速率为0.667 mV/s。实验在室温下进行。本文所有电位均为相对于饱和甘汞电极。
1.4 慢应变速率拉伸实验

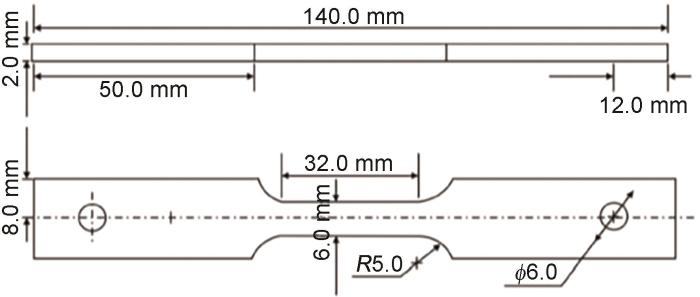

采用慢应变速率拉伸实验(SSRT)研究氢对X65钢母材及焊缝力学性能的影响。SSRT试样尺寸如图2所示。实验前将拉伸试样标距段用水砂纸打磨至2000#，用丙酮去油污，用无水乙醇和去离子水冲洗后吹干。将拉伸试样封装在拉伸盒中，标距段留出5 cm2的暴露面积，对试样进行电化学充氢。充氢条件与氢捕获量测试相同。充氢后立即进行SSRT实验，拉伸速率为1 × 10-6 mm/s。实验在室温下进行。每个充氢电流密度下至少重复2次，以保证数据的可靠性。
图2
试样拉断后，根据
式中，φ为断面收缩率，S0为试件原始横截面，S1为拉伸后断口横截面的面积；δ为延伸率，L0为试件原始标距长度，L1为拉伸后试件的标距长度。
实验后，截取拉伸试样断口，在添加六次甲基四胺的HCl中对断口超声清洗后，采用SEM观察断口形貌。
2 实验结果
2.1 不同充氢电流密度下X65钢氢捕获量

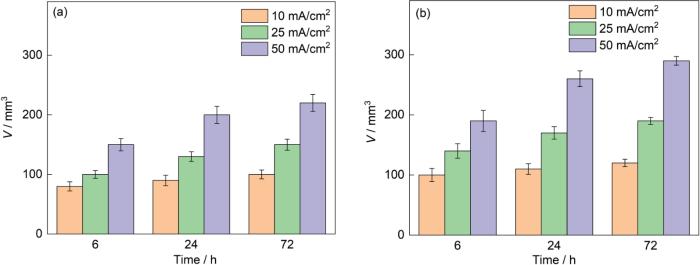

图3为不同充氢电流密度下X65钢母材及其焊缝放氢量随时间变化曲线。可以看出，母材和焊缝表现出相同的趋势，即在开始的6 h内，钢中氢气压力较高，氢气逸出的速度最快。随着时间延长，氢气逸出速率降低，表明钢中滞留氢含量减少。此外，母材和焊缝中氢逸出量随充氢电流密度的增加而增加。相同充氢电流密度下，焊缝中氢逸出量均大于母材，表明焊缝对氢的捕获量大于母材。
图3
图3
不同充氢电流密度下X65钢母材和焊缝氢逸出量
Fig.3
Volume of released hydrogen of X65 steel base metal (a) and welds (b) at different hydrogen charging current densities
图4为不同充氢电流密度下X65钢母材和焊缝充氢16 h后试样表面SEM结果。未充氢时，母材和焊缝试样表面平整(图4a1和a2)。充氢后，随充氢电流密度的增加，母材和焊缝逐渐出现白点和氢鼓泡，且鼓泡的尺寸及数量均增加。充氢电流密度为10 mA/cm2时，母材出现明显的氢鼓泡，且鼓泡边缘出现裂纹(图4b1)，而焊缝试样表面仅有较小的氢鼓泡(图4b2)。当充氢电流密度为25 mA/cm2时，母材表面的氢鼓泡进一步长大(图4c1)，焊缝表面则出现大量的体积稍小的氢鼓泡，且氢鼓泡破裂形成坑状(图4c2)。当充氢电流密度达到50 mA/cm2时，母材表面也出现大量的氢鼓泡和点蚀坑(图4d1)，焊缝氢鼓泡数量增加，鼓泡边缘破裂(图4d2)。这表明，焊缝中能吸收的氢更多，即焊缝比母材对氢的“容忍度”更高。
图4
图4

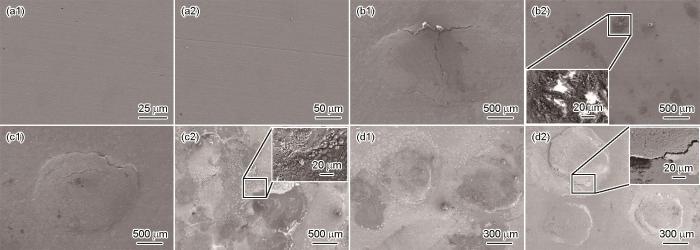

不同充氢电流密度下X65钢母材及其焊缝充氢后SEM图
Fig.4
SEM images of the base metal (a1-d1) and welds (a2-d2) of X65 steel after hydrogen charging at 0 mA/cm2 (a), 10 mA/cm2 (b), 25 mA/cm2 (c) and 50 mA/cm2 (d) hydrogen charging current densities
2.2 不同充氢电流密度下X65钢SSRT曲线及断口形貌

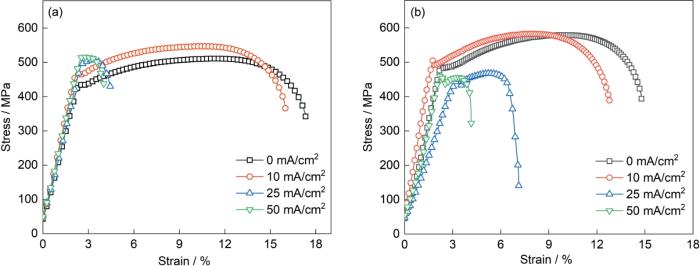

不同充氢电流密度下X65钢的母材和焊缝的SSRT结果见图5。母材在充氢电流密度为10 mA/cm2时，力学性能没有显著变化，抗拉强度略有提高，应变略有降低。然而当充氢电流密度增加至25 mA/cm2时，应变骤降，强度有明显提高；继续增加电流密度至50 mA/cm2，应变基本没有变化。充氢电流密度为10 mA/cm2时，焊缝力学性能变化与母材基本相同；但充氢电流密度为25 mA/cm2时，焊缝的应变下降程度没有母材大，约为未充氢时的50%；当电流密度达到50 mA/cm2时，应变变化与母材一致。值得注意的是，当充氢电流密度达到25 mA/cm2以上时，焊缝的抗拉强度显著降低。
图5
图5
不同充氢电流密度下X65钢母材及其焊缝应力-应变曲线
Fig.5
Stress-strain curves of X65 steel base metal (a) and welds (b) under different hydrogen charging current densities
图6为不同充氢电流密度下X65钢的母材和焊缝的断面收缩率(Ψ)和延伸率(δ)。可以看出，母材和焊缝的延伸率、断面收缩率均随着充氢电流密度的增大而逐渐减小。充氢电流密度为10 mA/cm2时，母材的Ψ和δ值均大于焊缝。但当充氢电流密度达到25 mA/cm2时，母材的的Ψ和δ值均小于焊缝；当充氢电流密度达到50 mA/cm2时，氢对母材和焊缝的Ψ和δ值影响的几乎没有差异。
图6
图6

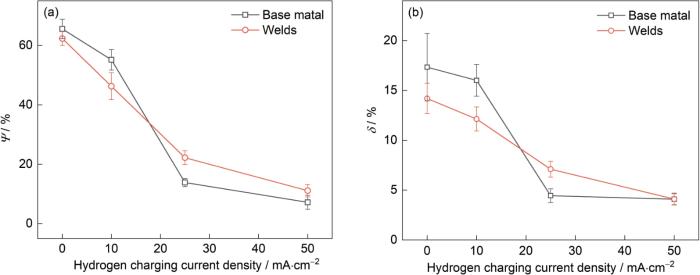

不同充氢电流密度下X65 钢母材及焊缝断面收缩率和延伸率
Fig.6
Reduction of area (a) and elongation (b) of X65 steel base metal and welds under different hydrogen charging current densities
通常用氢脆敏感性指数IHE表示金属材料对氢脆的敏感性[23]：
式中，δ0材料未充氢条件下的延伸率；δH材料充氢条件下的延伸率。
图7为不同充氢电流密度下X65钢母材及其焊缝的氢脆敏感性指数IHE计算结果。可以看出，当充氢电流密度为10 mA/cm2时，焊缝的IHE大于母材；但当充氢电流密度达到25 mA/cm2以上时，焊缝的IHE小于母材。由此可见，在钢中氢浓度较高时，氢对母材力学性能的影响大于对焊缝的影响。
图7
图7

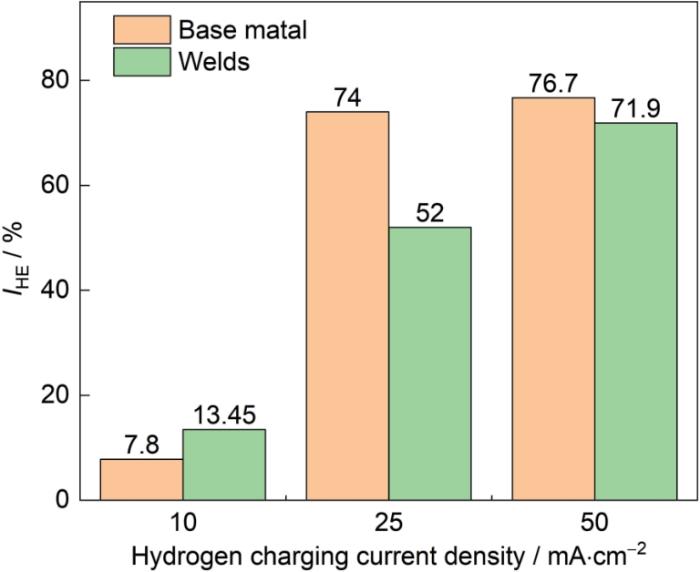

不同充氢电流密度下X65钢母材及焊缝的氢脆敏感性指数
Fig.7
IHE of X65 steel base metal and welds at different hydrogen charging current densities
图8为不同充氢电流密度下X65钢母材SSRT实验后主断口形貌。从宏观断口形貌可以观察到，当充氢电流为0和10 mA/cm2时，断口有颈缩现象。微观形貌观察表明，断口为典型的韧窝形貌，与未充氢时(图8a2)相比，充氢电流为10 mA/cm2时(图8b2)，韧窝尺寸和深度韧窝变小变浅，但仍具有明显的韧性断裂特征。随着充氢电流密度的增加至25 mA/cm2，宏观断口形貌颈缩消失(图8c1)，试样表面变得非常不平整，微观形貌中能看到裂纹起源于氢鼓泡(图8c2)，断口呈河流状花样，此时氢脆效应显著。当充氢电流密度为50 mA/cm2时，宏观断口与25 mA/cm2类似(图8d1)，微观断口观察到了解理台阶(图8d2)，韧窝消失，氢脆程度增加。
图8
图8

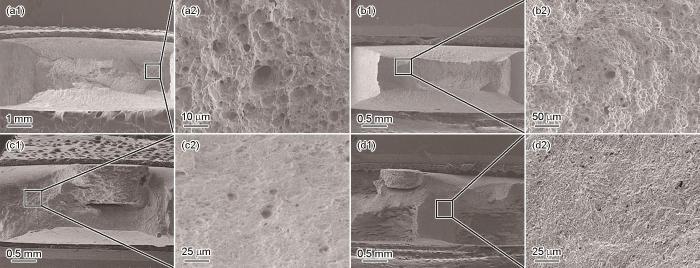

X65钢母材在不同充氢电流密度下主断口形貌
Fig.8
Fracture morphologies of X65 steel base metal under 0 mA/cm2 (a), 10 mA/cm2 (b), 25 mA/cm2 (c) and 50 mA/cm2 (d) hydrogen charging current densities
图9
图9

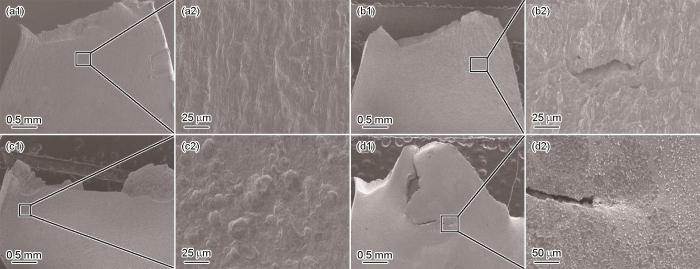

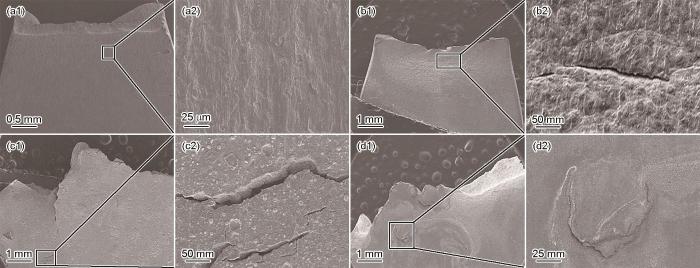

X65钢母材在不同充氢电流密度下侧面断口形貌
Fig.9
SEM images of the fracture on side surfaces of X65 steel base metal 0 mA/cm2 (a), 10 mA/cm2 (b), 25 mA/cm2 (c) and 50 mA/cm2 (d) hydrogen charging current densities
图10
图10

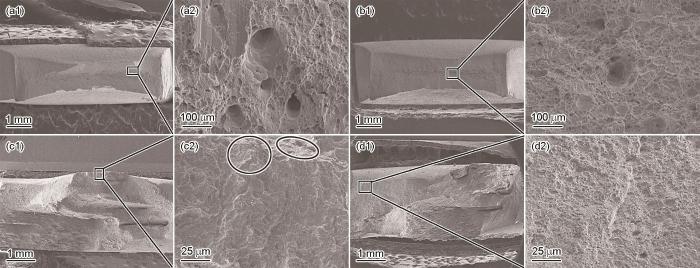

X65钢焊缝在不同充氢电流密度下主断口形貌
Fig.10
Fracture morphologies of X65 steel welds under 0 mA/cm2 (a), 10 mA/cm2 (b), 25 mA/cm2 (c) and 50 mA/cm2 (d) hydrogen charging current densities
图11
图11
X65钢焊缝在不同充氢电流密度下侧面断口形貌
Fig.11
SEM images of the fracture on side surfaces of X65 steel welds under 0 mA/cm2 (a), 10 mA/cm2 (b), 25 mA/cm2 (c) and 50 mA/cm2 (d) hydrogen charging current densities
2.3 不同充氢电流密度下X65钢极化曲线
图12为不同充氢电流密度下X65钢母材及其焊缝在3.5%NaCl溶液中的极化曲线。母材随充氢电流密度增加，自腐蚀电位下降，表明充氢降低了母材耐蚀性。充氢后焊缝自腐蚀电位变化趋势与母材一致，但下降幅度较小。母材在充氢电流密度为50 mA/cm2时出现了明显的钝化现象。焊缝在充氢电流密度为25和50 mA/cm2时出现钝化现象，但钝化区间比母材小。不同充氢电流密度下母材的阴极极化曲线几乎重合，表明充氢对母材阴极极化行为影响较小。此外，焊缝的阳极极化曲线斜率明显低于母材，且充氢电流密度对焊缝阳极极化曲线影响较小。采用Tafel外推法对极化曲线进行拟合，得到腐蚀电流密度Icorr结果见图13。可以看出，未充氢时，X65钢母材和焊缝Icorr基本相同。充氢后，随充氢电流密度增加，母材和焊缝腐蚀电流密度均增大，且焊缝的腐蚀电流密度大于母材。
图12
图12
不同充氢电流密度下X65钢母材及其焊缝的极化曲线
Fig.12
Polarization curves of X65 steel base metal (a) and welds (b) under different hydrogen charging current densities
图13
图13

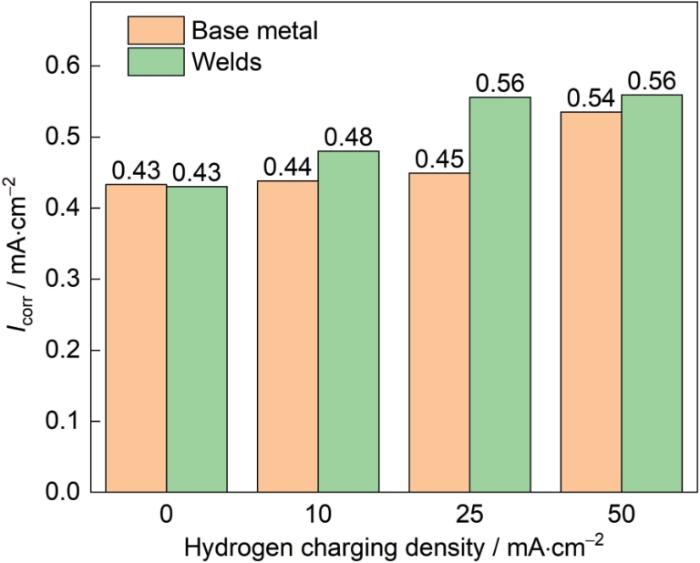

不同充氢电流密度下X65钢母材及其焊缝腐蚀电流密度
Fig.13
Corrosion current density of X65 steel base metal and welds under different hydrogen char-ging current densities
3 分析及讨论
3.1 X65钢母材及焊缝显微组织对氢捕获量的影响
氢逸出量测试结果表明，随着充氢电流密度增加，X65钢母材及焊缝氢逸出量均呈现递增趋势，表明材料内部氢捕获量随充氢电流密度增加而增多。在充氢过程中，充氢电解液中的H＋在阴极反应中获得电子还原为氢原子并吸附于钢表面，形成表面氢浓度梯度。随着充氢电流密度增大，试样表面氢浓度升高，化学位梯度增大，促进氢原子向材料内部扩散渗透[23]。但随着充氢电流密度超过一定阈值后，氢捕获量增加程度逐渐下降，表明母材和焊缝试样内部氢陷阱容量存在上限。相同充氢条件下，焊缝氢逸出量显著高于母材，表明焊缝氢捕获能力更强。这与母材与焊缝显微组织结构差异密切相关。金相分析结果显示，焊缝组织比母材更为粗大，且具有更高的晶体缺陷密度和位错密度，从而形成更高密度的氢陷阱点位[24]。扩散进入基体的H易在这些氢陷阱处发生富集，导致相同充氢条件下焊缝氢捕获量显著增加[25]。Shirband等[20]采用电化学渗透方法研究X70钢的氢渗透行为，证明了退火处理增加晶粒尺寸，导致氢扩散系数增加。王佳等[25]利用热模拟技术研究了X80钢在不同峰值温度下的焊接热影响氢脆行为，结果表明，相变区的氢脆敏感性最高，从而可能引发氢脆等问题。
SEM结果表明，充氢后母材和焊缝均出现不同程度的氢鼓泡。随着充氢电流密度增加，母材和焊缝表面形成氢鼓泡数量增多。H进入钢体后，在钢中缺陷、位错处聚集，形成H2，破坏X65钢的组织结构。当充氢电流密度小于25 mA/cm2时，母材表面出现明显氢鼓泡，而焊缝表面则未出现，即焊缝鼓泡形成较母材晚，这进一步证明氢陷阱对扩散氢有良好的钉扎作用，阻碍H原子在基体中的扩散。当充氢电流密度达到50 mA/cm2时，焊缝的氢鼓泡数量与体积明显大于母材，且鼓泡破裂，这是由于随可扩散氢量增加，焊缝的氢陷阱内大量聚集形成H2，产生氢内压，当其氢压达到破裂的门槛应力时就导致氢鼓泡破裂[26]。由于焊缝的氢捕获量更大，氢内压更高，因此形成的氢鼓泡比母材更大。
3.2 氢对X65钢母材和焊缝力学性能的影响
SSRT结果表明，充氢后X65钢母材的抗拉强度略有升高。当充氢电流密度为10 mA/cm2时，母材的延伸率略有降低；但当电流密度达到25 mA/cm2时，延伸率显著降低，继续增大电流至50 mA/cm2时，延伸率几乎没有变化。这表明当充氢电流为25 mA/cm2时，钢中氢捕获量达到临界值，诱发显著的氢脆效应。充氢后焊缝力学性能响应与母材存在显著差异：在充氢电流密度为10 mA/cm2时，焊缝的延伸率下降程度大于母材；当充氢电流密度进一步增加至25 A/cm2和50 A/cm2时，焊缝的延伸率未出现母材那样的急剧下降，而是呈现出逐步降低，同时抗拉强度亦有所下降。这归因于焊缝组织具有较高的氢捕获能力，捕获的氢原子在钢中富集引发晶格畸变，并对位错产生钉扎效应，增加位错运动的阻力，使位错运动更加困难，提升了焊缝的抗塑性变形能力[27~29]。
断口形貌SEM结果表明，随着充氢电流密度升高，X65钢母材和焊缝断裂机制呈现出由韧性断裂向脆性断裂转变的趋势。未充氢状态下，试样内部晶粒在拉应力的作用下发生拉长塑性变形，形成典型的等轴韧窝形貌。充氢后，氢原子渗入钢基体内部，并在微裂纹及夹杂物周围发生富集[30]。当局部氢浓度达到临界阈值时，会显著降低原子间的内聚能[31]。当外加载荷产生的应力值超过原子内聚强度阈值时，将诱发微裂纹形核。在充氢电流密度为10 mA/cm2的条件下，扩散至试样芯部的氢原子数量有限，不足以改变材料的断裂模式，故断口芯部仍以韧窝形貌为主导。当充氢电流密度超过25 mA/cm2后，试样断口形貌由韧窝特征逐渐向准解理断裂特征过渡。氢的存在弱化了原子间结合强度，最终引发脆性断裂。Liu等[32]认为，在应力作用下，氢通过促进局部塑性变形机制发挥作用：氢原子在位错附近可削弱位错与障碍物之间的应力场强度，降低位错运动的激活能，使位错在较低能量下发生迁移，进而在断口解理面上形成台阶状滑移线，加速裂纹的扩展并促进解理面的形成。
3.3 氢对X65钢母材和焊缝电化学行为的影响
极化曲线结果表明，电化学充氢在一定程度上促进了母材和焊缝阳极溶解过程。氢可增强体系的活化因子(具体表现为Icorr增加)，提升钢材的电化学活性，导致其耐蚀性下降[33]。充氢后，氢在钢基体中的扩散导致晶界处晶格畸变能升高，使材料表面活性增加、电极电位降低。在与腐蚀介质反应时，晶格畸变能释放所产生应力会加速金属的腐蚀进程。同时，氢原子通过对位错的激活作用，促使钢中微小位错重叠与融合，进一步加速位错的发射与迁移，增加基体的晶体缺陷密度，导致钢在腐蚀介质环境中更容易发生阳极溶解而遭受腐蚀[34]。因此，随充氢程度增加，母材和焊缝阳极溶解程度均增加。此外，电化学结果表明，相同条件下焊缝腐蚀电流密度大于母材。这是由于焊缝捕获了更多的氢所致。母材在充氢电流密度达到50 mA/cm2、焊缝在充氢电流密度为25和50 mA/cm2时，阳极极化曲线均出现“钝化”现象，即阳极氧化对腐蚀电流影响较小。这归因于金属表面吸附的氢被氧化消耗了阳极电流。焊缝的钝化区间小于母材，表明在较高的充氢电流密度下，母材表面的氢浓度比焊缝高，而焊缝中由于氢陷阱数大于母材使表面氢浓度降低。这与氢脆敏感系数结果一致。
4 结论
(1) X65钢焊缝比母材具有更高的晶体缺陷密度和位错密度，形成更高密度的氢陷阱点位，相同充氢条件下焊缝的氢捕获量大于母材。
(2) 充氢电流密度为10 A/cm2时，焊缝的氢脆敏感性大于母材；当充氢电流密度达到25 A/cm2以上时，母材的氢脆敏感性反超焊缝。氢陷阱对扩散氢有良好的钉扎作用，阻碍氢原子在基体中的扩散，因此焊缝中较高的氢捕获量使其抗塑性变形能力大于母材。
(3) 氢在钢中的扩散导致晶界处晶格畸变能升高，使材料表面活性增加、电极电位降低，耐蚀性下降。焊缝中氢含量高，增加了晶体缺陷密度高，导致其耐蚀性小于母材。
