管道内海水流动特性对碳钢阴极保护影响的试验与数值模拟研究

吴昉赟, 乔睿鑫, 李旭宁, 尚浩杰, 陆丰华, 周澄, 王欣, 董亮

Influence of Seawater Flow Characteristics Inside Pipelines on Cathodic Protection of Carbon Steel Pipelines-Experiment and Numerical Simulation

WU Fangyun, QIAO Ruixin, LI Xuning, SHANG Haojie, LU Fenghua, ZHOU Cheng, WANG Xin, DONG Liang

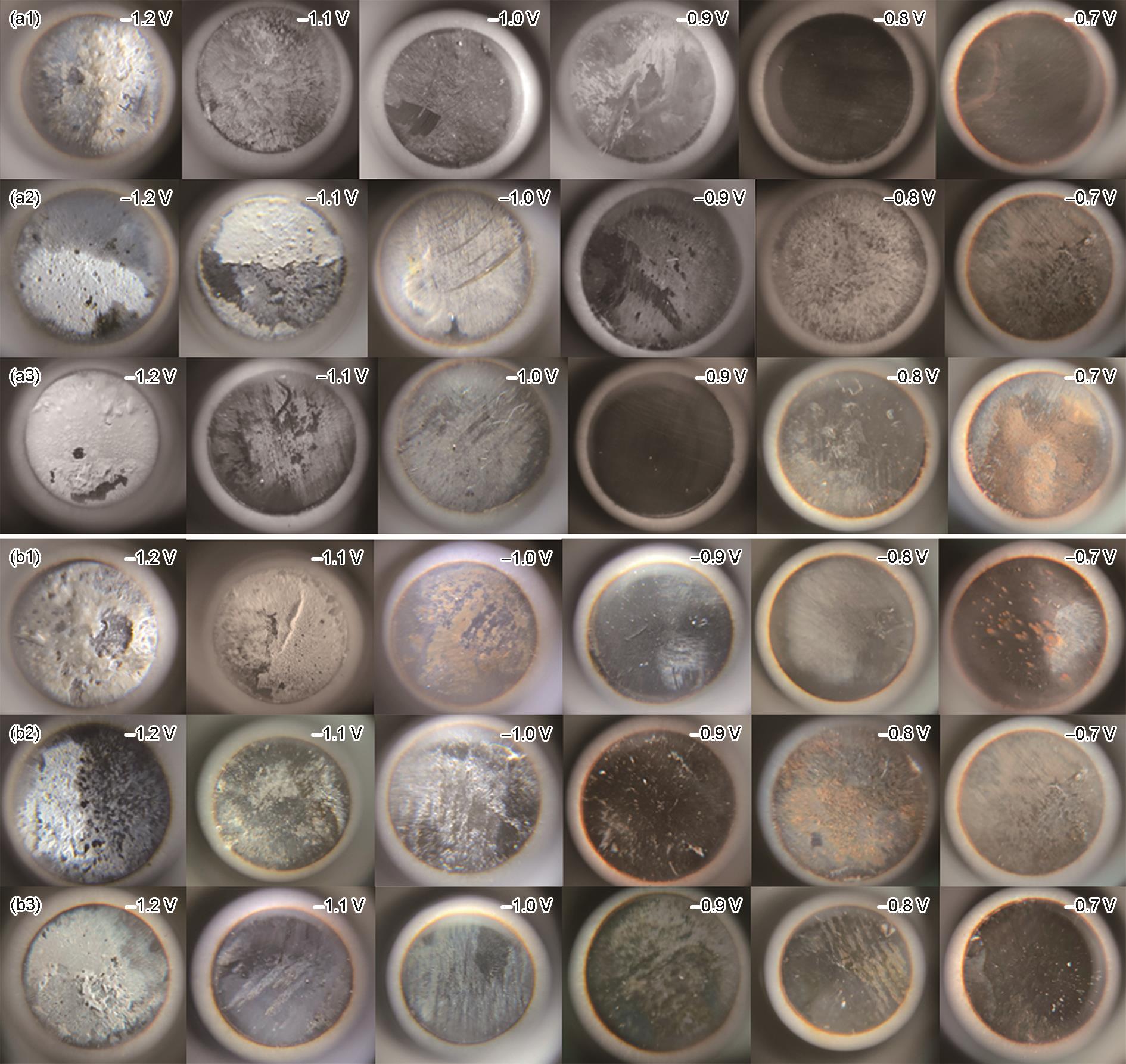

图10 弯头内侧C1、C2、C3位置处试样及弯头外侧B1、B2、B3位置处试样表面形貌

Fig.10 Surface morphologies of the specimens at positions C1 (a1), C2 (a2), and C3 (a3) on the inner side of the elbow and at positions B1 (b1), B2 (b2), and B3 (b3) on the outside of the elbow (Magnification: 100 times)
