增材制造合金在核能领域应用中的腐蚀研究进展

戴念维, 窦欣懿, 刘华剑, 冷滨

Research Progress on Corrosion of Additively Manufactured Alloys Applied in Nuclear Energy Field

DAI Nianwei, DOU Xinyi, LIU Huajian, LENG Bin

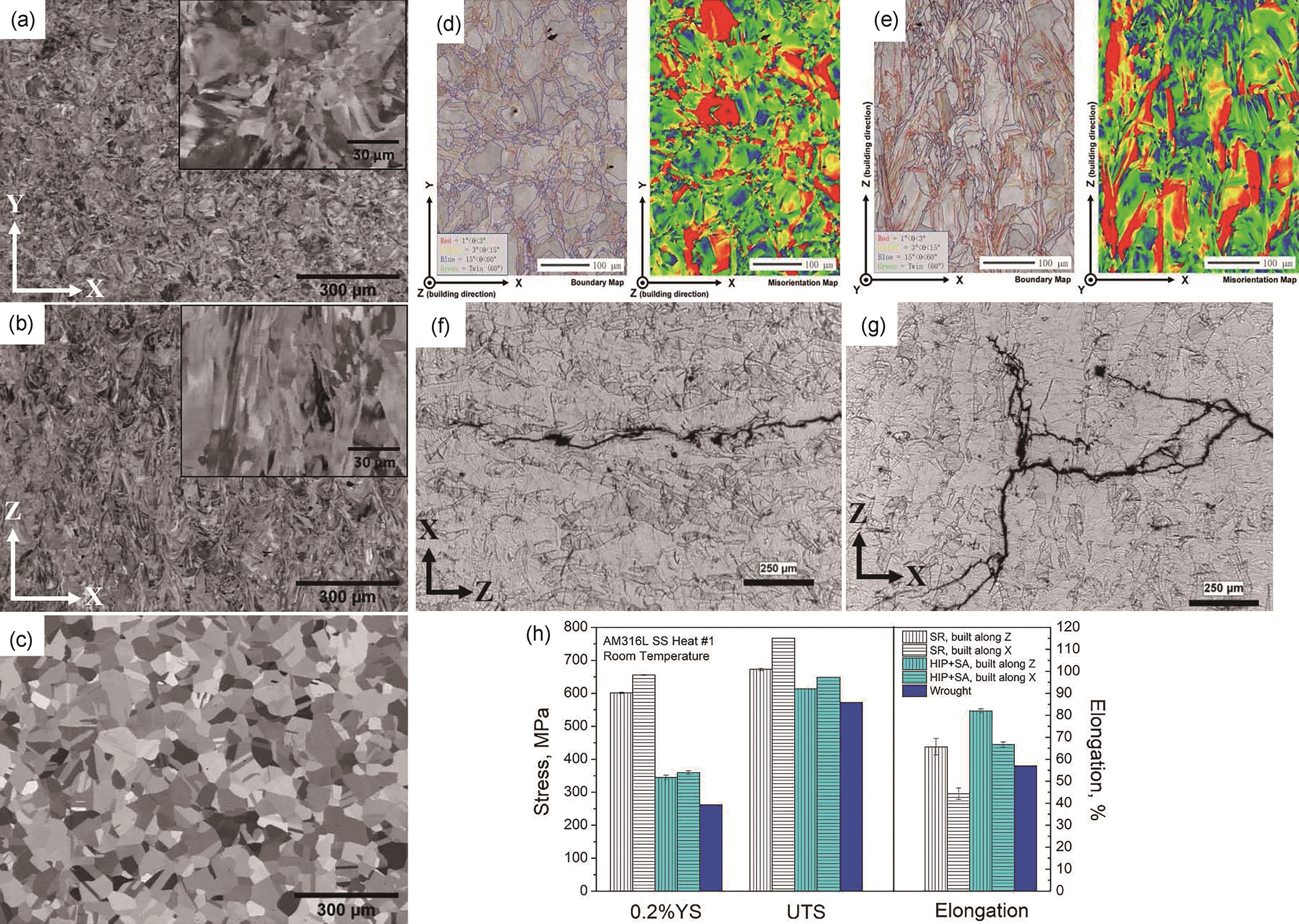

图2 LPBF-316L不锈钢中的组织结构各向异性，拉伸开裂行为特征差异和HIP处理后的组织结构及拉伸行为[26]

Fig.2 Microstructural anisotropy (a-e) and differences in tensile cracking behavior before and after HIP treatment (f-h) in LPBF-316L stainless steel[26]
