热处理对激光选区熔化GH4099镍基高温合金900 ℃下(75%Na2SO4 + 25%NaCl)热腐蚀行为的影响
Effect of Heat Treatment on Hot Corrosion Behavior of Selective Laser Melted GH4099 Nickel-based Superalloy Beneath (75%Na2SO4 + 25%NaCl) Deposits in Air at 900 oC
热处理对激光选区熔化GH4099镍基高温合金900 ℃下(75%Na2SO4 + 25%NaCl)热腐蚀行为的影响 |
| 白英雄, 王艳丽, 李相伟, 吴泽峰, 张书彦 |
|
Effect of Heat Treatment on Hot Corrosion Behavior of Selective Laser Melted GH4099 Nickel-based Superalloy Beneath (75%Na2SO4 + 25%NaCl) Deposits in Air at 900 oC |
| BAI Yingxiong, WANG Yanli, LI Xiangwei, WU Zefeng, ZHANG Shuyan |

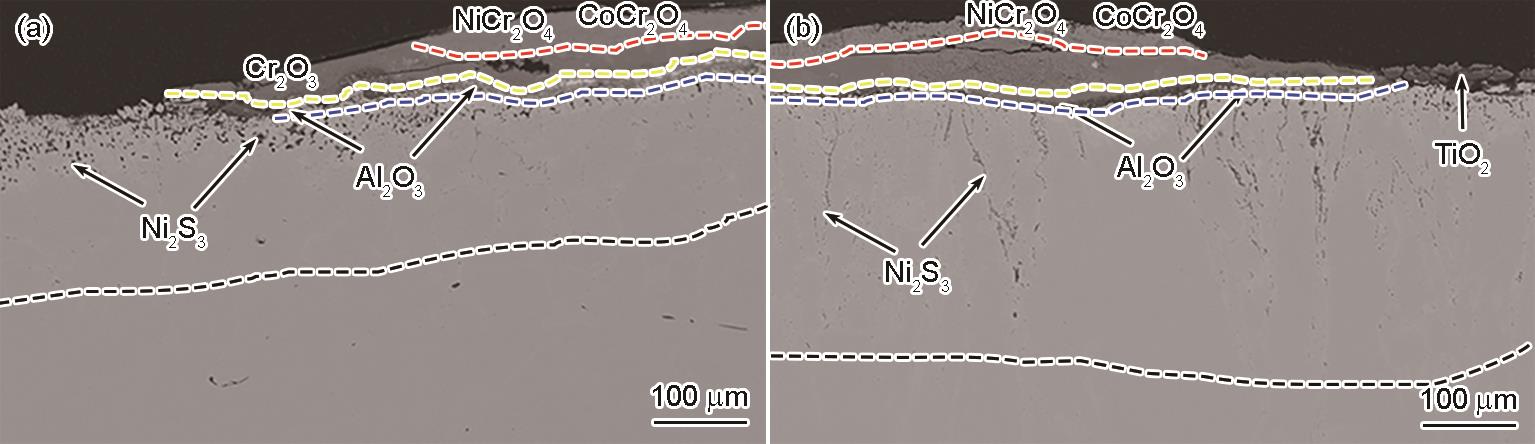

| 图8 SLM GH4099和HT GH4099试样热腐蚀120 h后的截面形貌 |
| Fig.8 Cross-sectional morphologies of SLM GH4099 (a) and HT GH4099 (b) after 120 h hot corrosion |
|
|
