Al含量对AFA钢耐铅铋腐蚀性能的影响

周洪涛, 王琳琳, 王旻, 王平, 马颖澈

Influence of Al-content on Corrosion Resistance of Alumina-forming Austinite Steel in Molten Pb-Bi Alloy Eutectic

ZHOU Hongtao, WANG Linlin, WANG Min, WANG Ping, MA Yingche

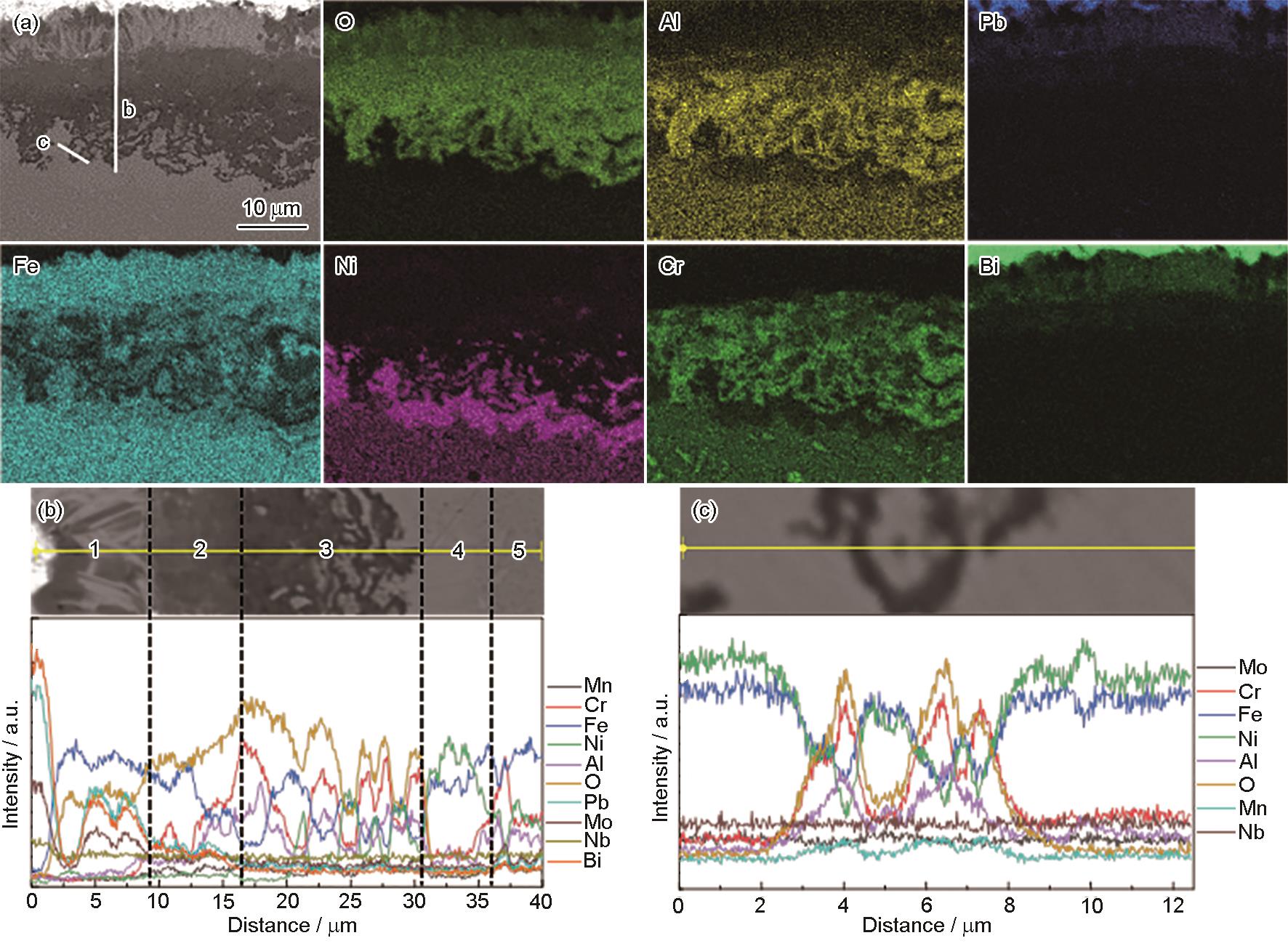

图12 Q2合金在600 ℃静态饱和氧LBE环境中腐蚀10000 h后氧化区的截面EDS图像

Fig.12 EDS image of oxidation zone cross-section of Q2 alloy after 10000 h corrosion in static saturated oxygen LBE environment at 600 oC: (a) elemental mapping, (b, c) line scan corresponding to Fig.12a
