动载作用下高压三通管汇的冲蚀特性研究

郭姿含, 樊建春, 杨云朋, 张军, 代四维

Erosion Characteristics of High-pressure Tee Manifold Under Dynamic Load

GUO Zihan, FAN Jianchun, YANG Yunpeng, ZHANG Jun, DAI Siwei

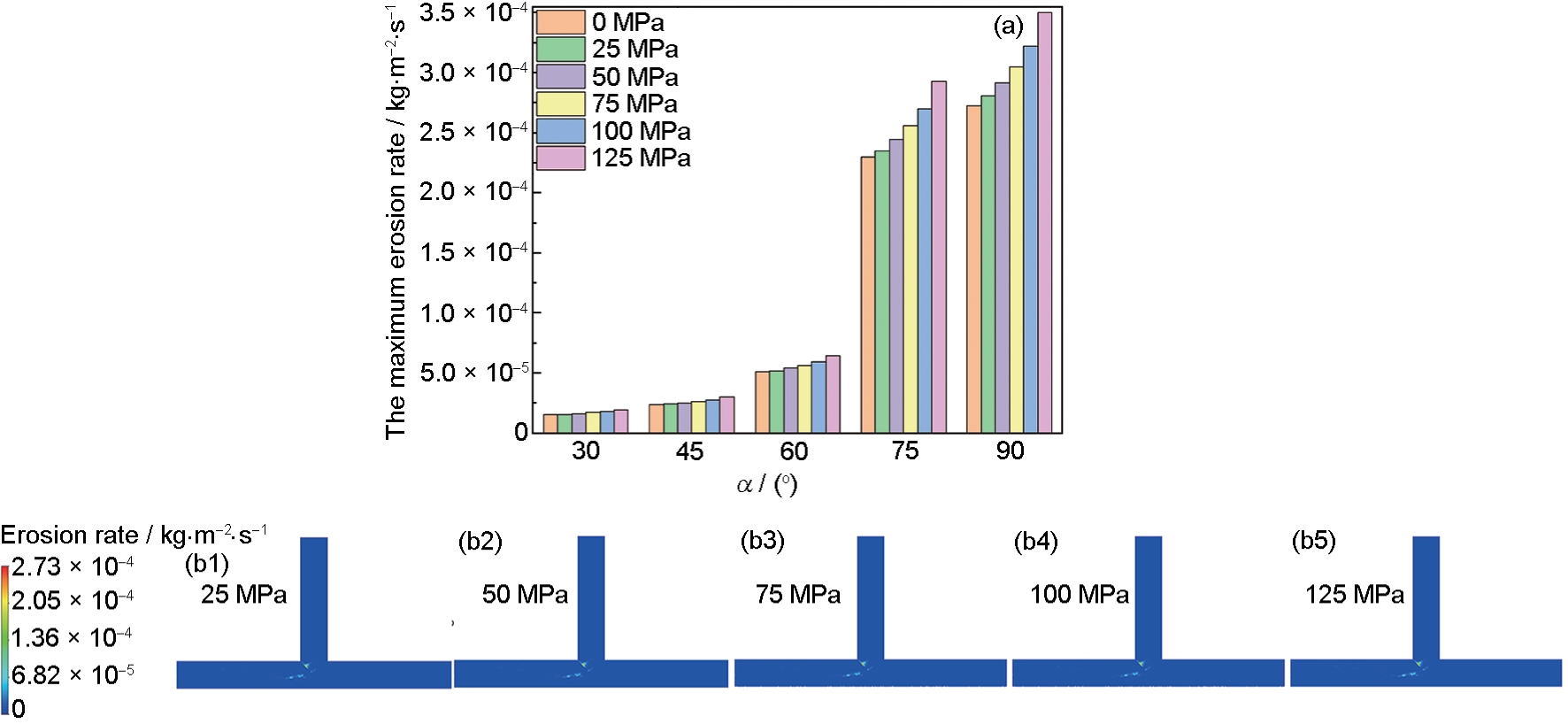

图13 不同三通结构的最大冲蚀率随内压的变化和T型三通不同内压下的冲蚀率

Fig.13 Variation of the maximum erosion rate with internal pressure for tee pipes with different configurations (a) and erosion rates of T-type tee under the internal pressures (p) of 25 MPa (b1), 50 MPa (b2), 75 MPa (b3), 100 MPa (b4) and 125 MPa (b5)
