动载作用下高压三通管汇的冲蚀特性研究

郭姿含, 樊建春, 杨云朋, 张军, 代四维

Erosion Characteristics of High-pressure Tee Manifold Under Dynamic Load

GUO Zihan, FAN Jianchun, YANG Yunpeng, ZHANG Jun, DAI Siwei

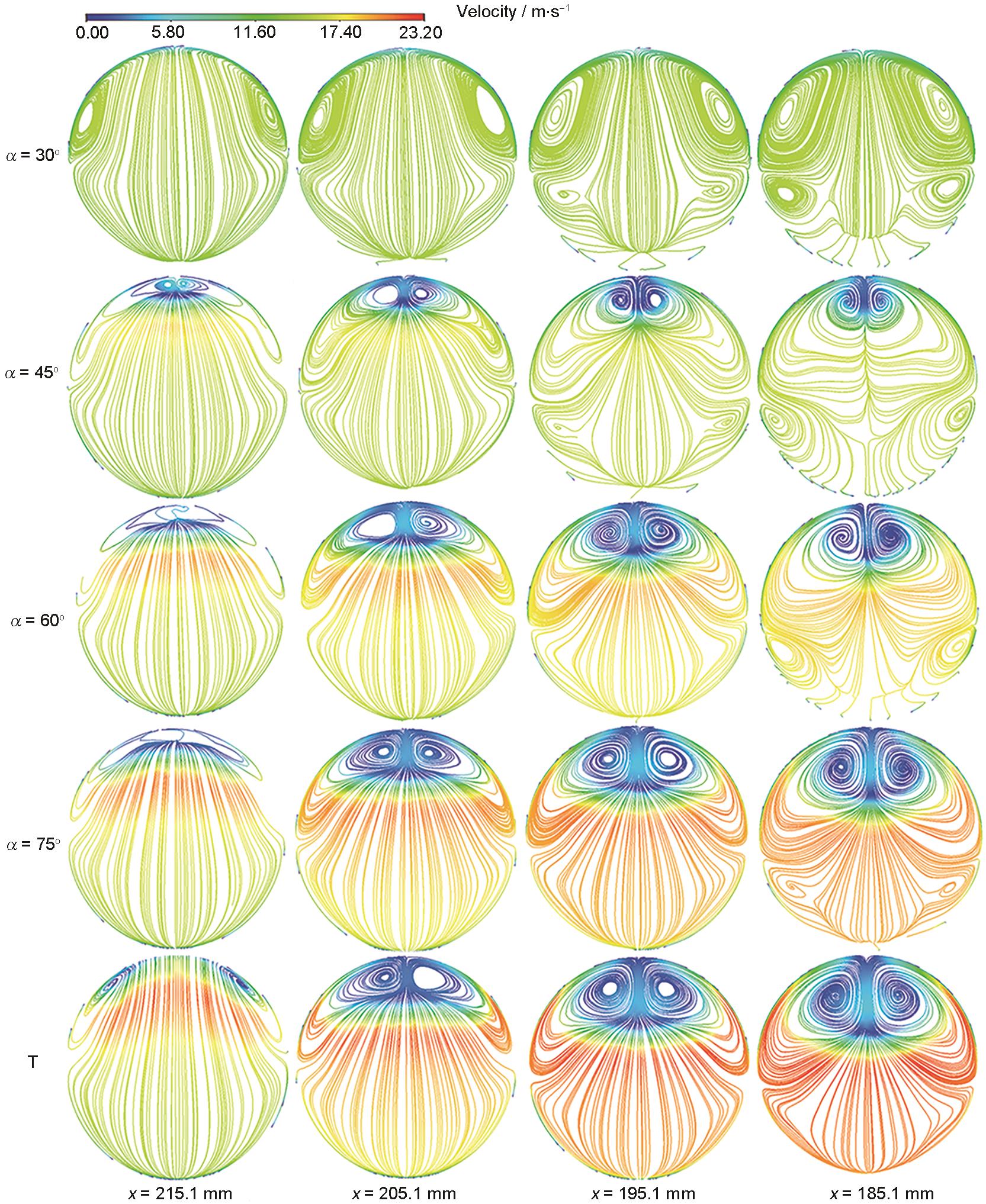

图9 不同空间角度三通不同截面的速度迹线

Fig.9 Velocity traces on different cross-sections of tee pipe (x) with different spatial angles (α)
