动载作用下高压三通管汇的冲蚀特性研究

郭姿含, 樊建春, 杨云朋, 张军, 代四维

Erosion Characteristics of High-pressure Tee Manifold Under Dynamic Load

GUO Zihan, FAN Jianchun, YANG Yunpeng, ZHANG Jun, DAI Siwei

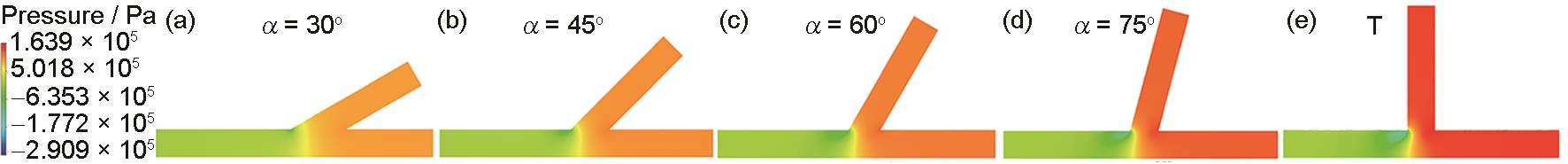

图7 不同角度三通管道的压力分布

Fig.7 Pressure distributions of tee pipes with the angles (α) of 30° (a), 45° (b), 60° (c), 75° (d) and 90° (e)
