含腐蚀缺陷氢气管道局部氢浓度有限元模拟分析
Finite Element Analysis of Local Hydrogen Concentration in Hydrogen Pipeline With Corrosion Defects
含腐蚀缺陷氢气管道局部氢浓度有限元模拟分析 |
| 崔德春, 熊亮, 于邦廷, 吴浩志, 董绍华, 陈林 |
|
Finite Element Analysis of Local Hydrogen Concentration in Hydrogen Pipeline With Corrosion Defects |
| CUI Dechun, XIONG Liang, YU Bangting, WU Haozhi, DONG Shaohua, CHEN Lin |

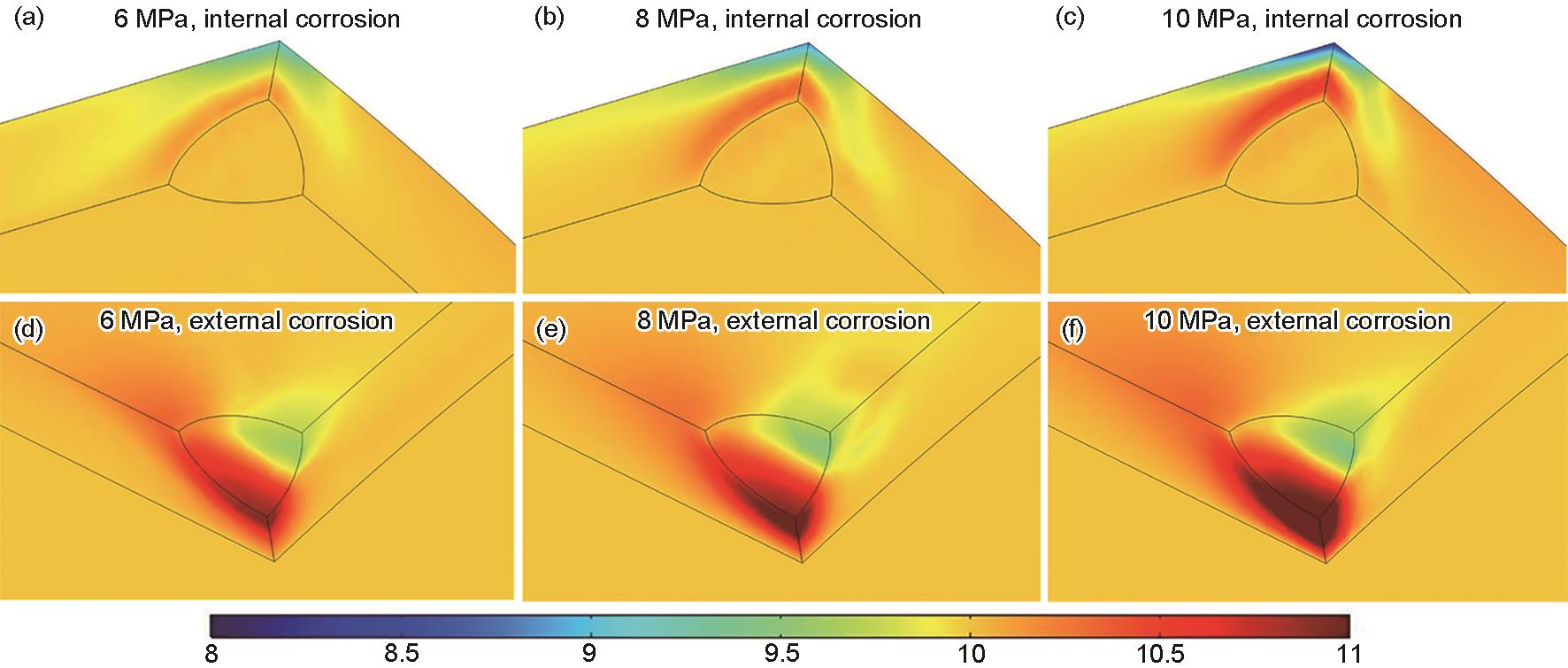

| 图9 5 × 106 s时6~10 MPa内压下内部和外部腐蚀缺陷处的氢浓度分布(mol/m3) |
| Fig.9 Distributions of hydrogen concentrations (mol/m3) at internal (a-c) and external (d-f) corrosion defects under an internal pressure of 6 MPa (a, d), 8 MPa (b, e) and 10 MPa (c, f) at 5 × 106 s |
|
|
