预充氢对Ni-Cr合金在高温高压水中腐蚀行为影响

白钲清, 农靖, 韦世宸, 徐健

Effect of Pre-charging Hydrogen on Corrosion Behavior of Ni-Cr Alloy in High Temperature and High Pressure Water

BAI Zhengqing, NONG Jing, WEI Shichen, XU Jian

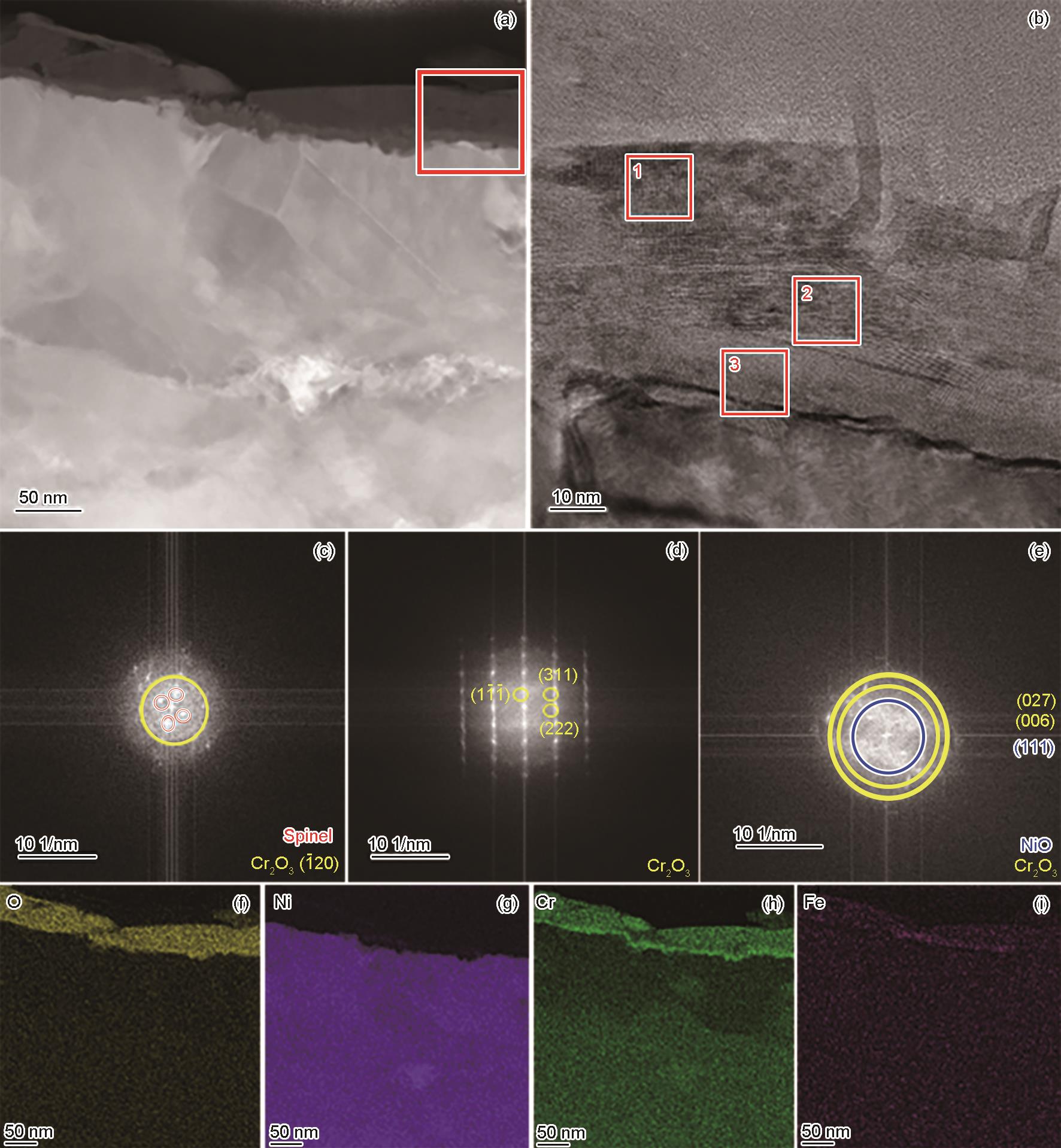

图7 30Cr-N腐蚀产物截面TEM分析

Fig.7 TEM analysis of 30Cr-N corrosion product cross-section: (a) HAADF, (b) Box HRTEM image of the box in Fig.7a, (c-e) FFT patterns of the areas 1, 2, 3 in Fig.7b, (f-i) O, Ni, Cr, Fe elements mapping
