奥氏体钢辐照促进应力腐蚀开裂行为机制的研究进展
Research Progress on Irradiation Assisted Stress Corrosion Cracking Behavior and Mechanism of Austenitic Steel
奥氏体钢辐照促进应力腐蚀开裂行为机制的研究进展 |
| 高俊宣, 曹晗, 匡文军, 郑全, 张鹏, 钟巍华 |
|
Research Progress on Irradiation Assisted Stress Corrosion Cracking Behavior and Mechanism of Austenitic Steel |
| GAO Junxuan, CAO Han, KUANG Wenjun, ZHENG Quan, ZHANG Peng, ZHONG Weihua |

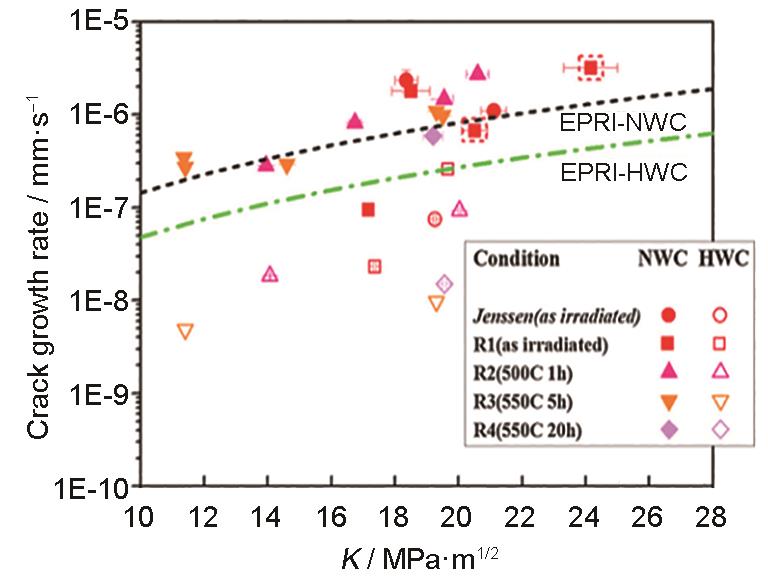

| 图8 辐照至5.9 dpa的304L不锈钢在不同退火条件和不同水环境下的裂纹扩展速率[ |
| Fig.8 CGR of 304L stainless steel irradiated to 5.9 dpa under different annealing conditions and different water environments[ |
|
|
