接管管口内径对卧式反应釜接管应力状态的影响

何彬彬, 侯宇, 吴子轩, 李子立, 李桃, 颜建伟

Influence of Inner Diameter of Nozzle on Stress State of Horizontal Reactor Nozzle

HE Binbin, HOU Yu, WU Zixuan, LI Zili, LI Tao, YAN Jianwei

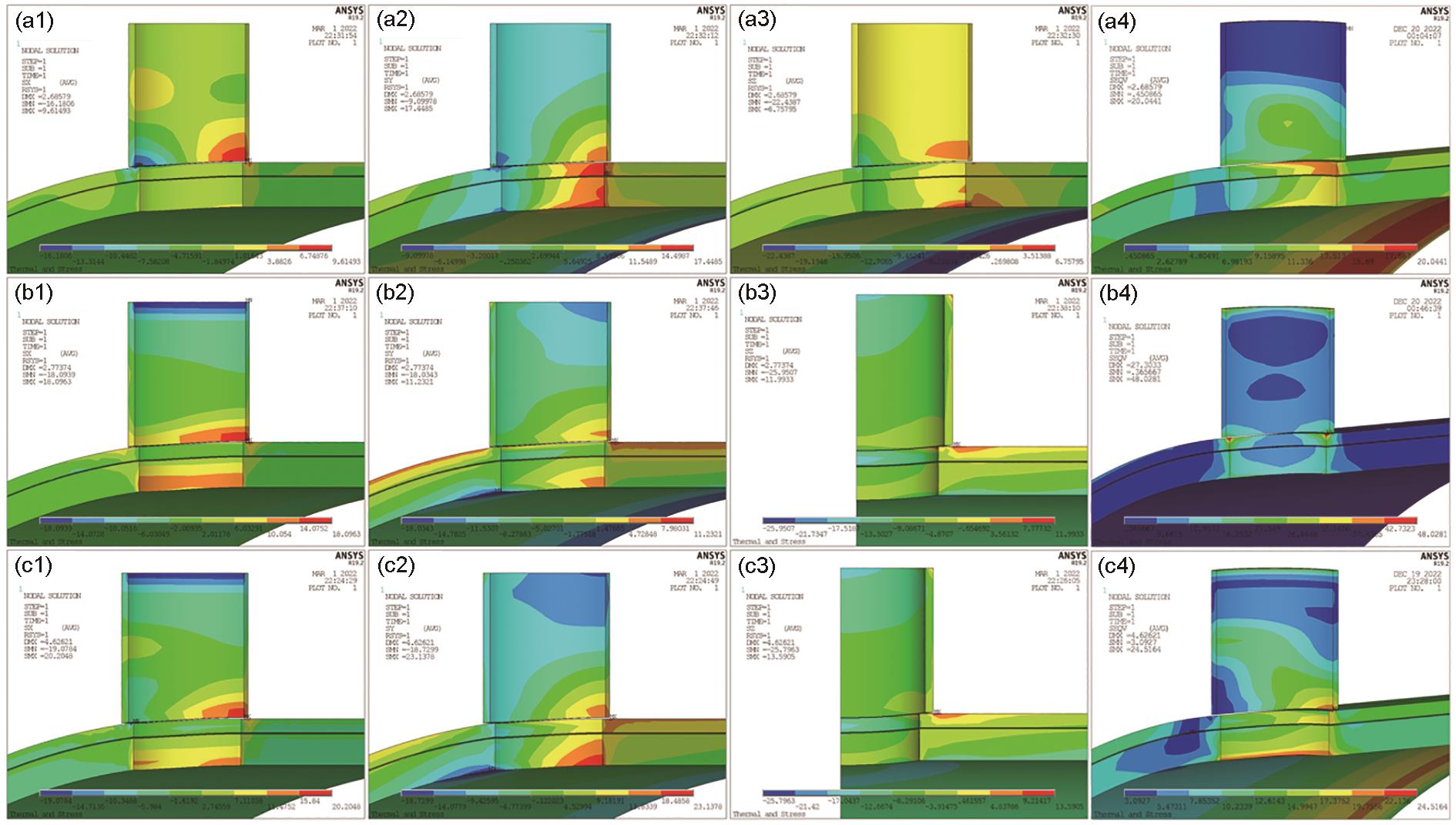

图3 a型管口特种耐酸耐温耐压砖在工况1，2和3下的应力分布云图

Fig.3 Stress distribution cloud maps of a-type nozzle special acid-, temperature- and pressure-resistant brick under working condition 1 (a1-a4), 2 (b1-b4) and 3 (c1-c4): (a1-c1) radial stress, (a2-c2) annular stress, (a3-c3) axial stress, (a4-c4) von Mises stress
