飞机起落架用超高强钢应力腐蚀开裂研究进展
Research Progress of Stress Corrosion Cracking of Ultra-high Strength Steels for Aircraft Landing Gear
飞机起落架用超高强钢应力腐蚀开裂研究进展 |
| 李双, 董立谨, 郑淮北, 吴铖川, 王洪利, 凌东, 王勤英 |
|
Research Progress of Stress Corrosion Cracking of Ultra-high Strength Steels for Aircraft Landing Gear |
| LI Shuang, DONG Lijin, ZHENG Huaibei, WU Chengchuan, WANG Hongli, LING Dong, WANG Qinying |

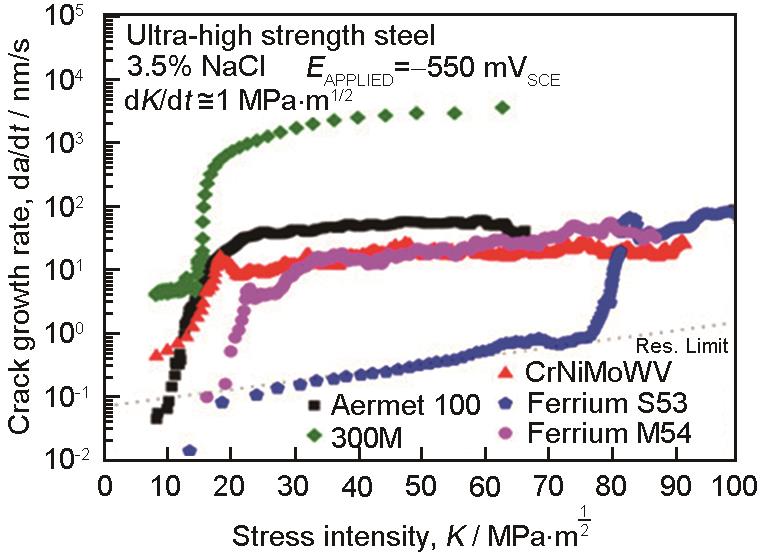

| 图1 外加电位为-550 mVSCE时几种超高强钢在3.5%NaCl溶液中的da/dt与K的关系图[ |
| Fig.1 Crack growth rate vsK curves for several ultra-high strength steels in 3.5%NaCl solution at the applied potential of -550 mVSCE[ |
|
|
