基于阵列电极技术研究藤壶附着对Q235钢腐蚀行为的影响

胡杰珍, 上官桔钰, 邓培昌, 冯绮蓝, 王贵, 王沛林

Effect of Barnacle Adhesion on Corrosion Behavior of Q235 Steel

HU Jiezhen, SHANGGUAN Juyu, DENG Peichang, FENG Qilan, WANG Gui, WANG Peilin

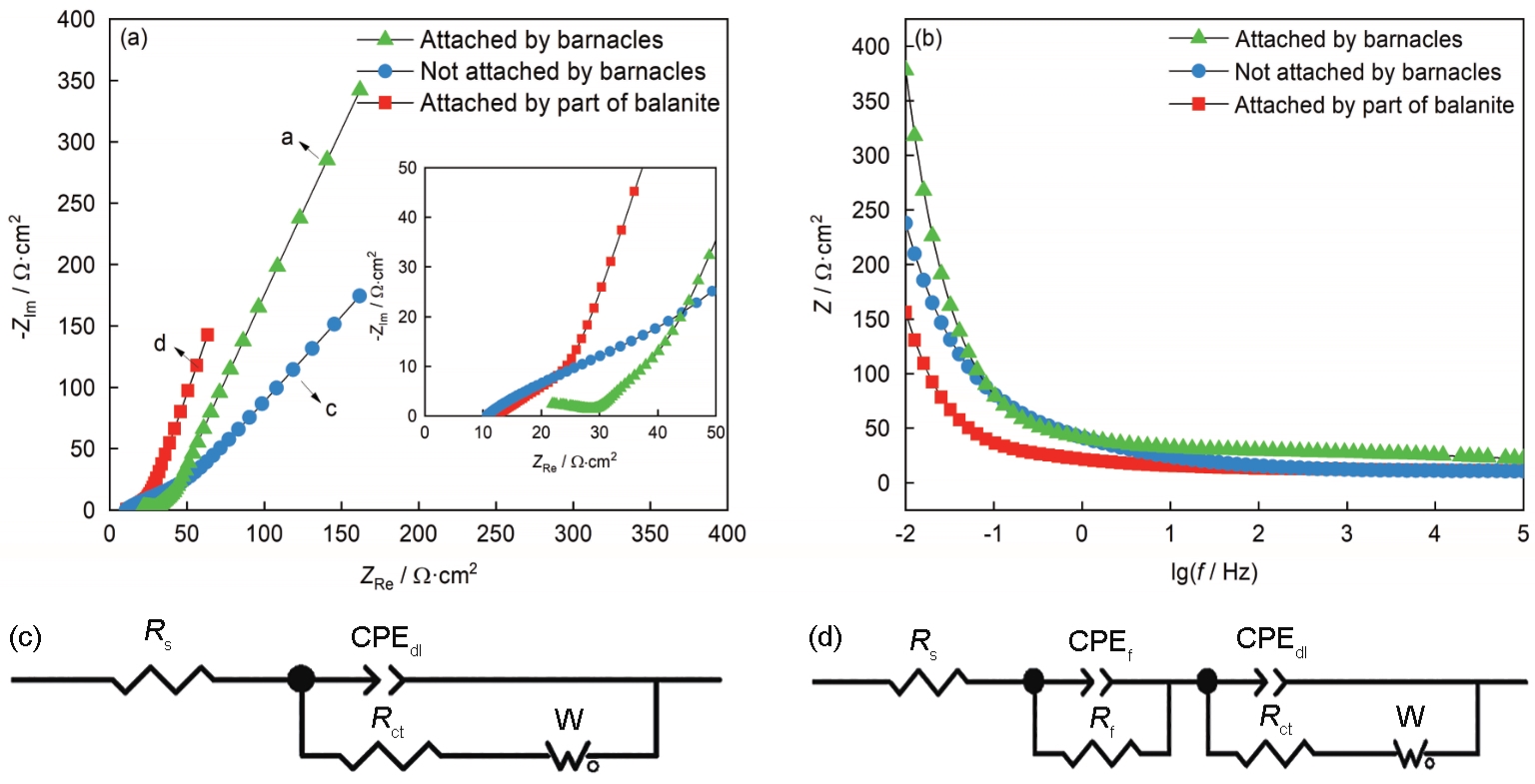

图3 电化学阻抗图以及阻抗等效电路模型

Fig.3 Nyquist (a) and Bode (b) plot represents the fitted curve of the three samples, equivalent circuit diagram of attached by part of balanite or not attached by barnacle (c), and attached by barnacles (d)
