基于数值计算的罐底板阴极保护电位分布研究进展与展望

寇杰, 任哲

Research Progress of Regional Cathodic Protection Potential Distribution of Tank Floor Based on Numerical Calculation

KOU Jie, REN Zhe

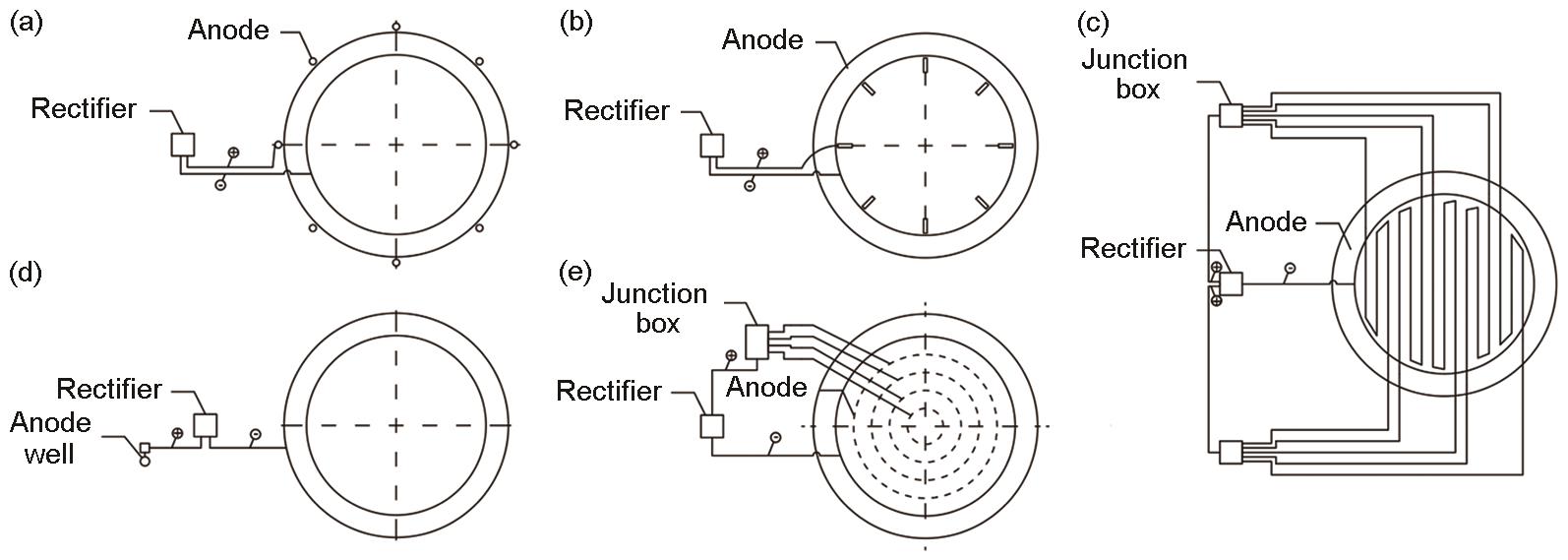

图5 阳极地床形式图

Fig.5 Diagram of the anodic bed form: (a) vertical anode, (b) horizontal anode, (c) strip anode, (d) deep well anode, (e) ring anode
