Q235钢表面的超疏水吸附层形成与缓蚀研究
Preparation and Corrosion Inhibition of Super Hydrophobic Adsorption Film of Lotus Leaf Extract on Mild Steel
通讯作者: 高放,E-mail:fanggao1971@gmail.com,研究方向为有机高分子材料及金属防腐
收稿日期: 2021-10-21 修回日期: 2021-11-05
基金资助: |
|
Corresponding authors: GAO Fang, E-mail:fanggao1971@gmail.com
Received: 2021-10-21 Revised: 2021-11-05
Fund supported: |
|
作者简介 About authors
罗为平,女,1998年生,硕士生
用新鲜荷叶作为研究对象,经过简便的乙醇回流萃取取得提取物。室温条件下,荷叶提取物能够在THF/HCl水溶液的混合溶液 (体积比为1/1,1.0 mol/L HCl溶液) 中产生聚集。傅立叶变换红外光谱以及X射线光电子能谱的结果证明了荷叶提取物在Q235钢样品表面发生化学作用,能够形成超疏水的吸附层。电化学结果表明荷叶提取物对碳钢在HCl溶液中具备良好的缓蚀性能,在0.4 g/L浓度下,最大缓蚀效率达到93.14%。
关键词:
In order to search for new green and low-cost organic corrosion inhibitors, the fresh lotus leave was selected as raw material, and then lotus leaf extract (LLE) was obtained by simple ethanol reflux extraction. The LLE could produce orderly aggregation material in a mixture of THF/HCl (tetrahydrofuran/HCl) solution (1.0 mol/L HCl solution) at room temperature. The results of Fourier transform infrared spectroscopy (FT-IR) and X-ray photoelectron spectroscopy (XPS) showed that the LLE underwent chemisorption on the surface of Q235 steel, and further the LLE could be adsorbed on the surface of mild steel, which formed super hydrophobic organic adsorption film. Electrochemical test results showed that lotus leaf extract had good corrosion inhibition performance for carbon steel in HCl solution. The maximal corrosion inhibition efficiency of LLE reached 93.14% for Q235 steel in HCl solution of 0.4 g/L.
Keywords:
本文引用格式
罗为平, 罗雪, 石悦婷, 王新潮, 张胜涛, 高放, 李红茹.
LUO Weiping, LUO Xue, SHI Yueting, WANG Xinchao, ZHANG Shengtao, GAO Fang, LI Hongru.
本文以典型疏水性荷叶为研究对象,特别是荷叶提取物极可能在有机溶剂/水混合溶剂中发生聚集,形成聚集材料,从而能够大大增加对金属表面的吸附能力,形成超疏水吸附层,进而实现高效的缓蚀作用。
1 实验方法
使用的荷叶均当天采摘自重庆大学D区的莲池。将荷叶采摘洗净,放置烘箱,烘烤干,再研磨至粉末状。采用回流提取法,取适量荷叶粉末装于提取反应器中,乙醇作为提取介质,加热回流提取。当获得液体由深绿色渐渐变成淡绿色时停止加热。趁热旋干后获得深绿色的黏稠状的提取物。把获得的提取物放置在的真空干燥箱中,两周后待用。
选用THF/HCl溶液 (体积比为1/1,1.0 mol/L HCl 溶液) 作为溶剂,在25 ℃条件下,取适量LLE溶解在上述溶剂中制备自聚集材料,LLE的浓度分别为0.1~0.5 g/L。用微量注射器取LLE自聚集材料溶液加在硅片上,在真空条件下干燥。在制备好硅单抛面片上用真空镀膜法喷金。加速电压设置为5 kV,采用SEM对LLE聚集材料进行形貌和尺寸表征。
所使用的Q235钢成分 (质量分数,%) 为:C 0.16、Si 0.18、Mn 0.29、P 0.014、S 0.013,余量Fe。将钢电极用SiC砂纸依照目数进行至光滑平整,把打磨好的Q235钢片再分别用无水乙醇和丙酮来超声、干燥后立即浸入含有稳定的LLE聚集材料的THF/HCl溶液中浸泡,产生稳定不便的吸附膜后再取出电极,使用无水乙醇洗濯,并在氮气流中干燥。
使用变换红外光谱 (Nicolet iS50 Fourier,FT-IR) 对LLE聚集材料的钢表面的形貌进行表征,波数范围为500~4000 cm-1。在室温下,使用单色Al Kα源进行X射线光电子能谱分析 (XPS,K-Alpha) 测定。使用Jeol-JSM-3.5CF扫描电镜 (SEM),采用加速电压为5.0KV的SEM对吸附了不同状态的LLE钢表面进行形貌分析。采用MFP-3D-BIO原子力显微镜 (AFM) 进行三维AFM图像分析。
电化学分析采用CHI660C电化学工作站进行,三电极体系,吸附了LLE的钢片为工作电极,KCl饱和甘汞电极为参比电极,对电极是面积为2.0 cm×2.0 cm的铂片。所有测试均在30 min下得到了稳定的电压值 (EOCPs),并进一步完成了Tafel曲线和EIS测试。其中,Tafel曲线电压范围为EOCPs±0.25 V,扫描速度为0.001 V/s。EIS测试时,其范围为105~10-2 Hz,交流电压的振幅设置为5 mV。
式中,Rct,0和Rct分别为未吸附和吸附了稳定的LLE聚集材料的电荷转移电阻,Icorr,0和Icorr分别为未吸附和吸附了稳定的LLE聚集材料的腐蚀电流密度。
2 结果与讨论
2.1 LLE在THF/HCl溶剂中形成聚集材料
图1
图1

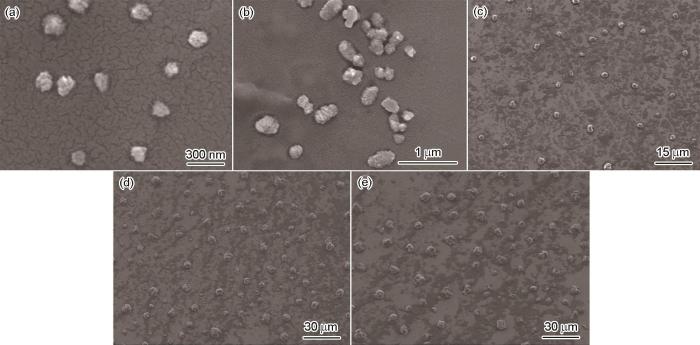

LLE在混合溶液中聚集一定时间后的SEM像
Fig.1
SEM images of LLE aggregates formed after aggregation in THF/HCl solution containing 0.4 g/L LLE for 30 min (a), 2 h (b), 6 h (c), 10 h (d) and 48 h (e)
图2
图2

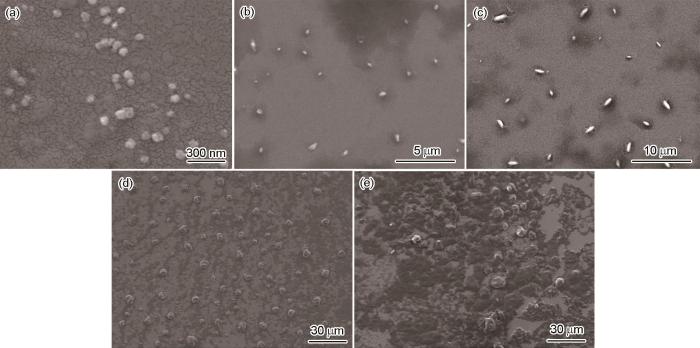

LLE在混合溶液中聚集10 h的SEM像
Fig.2
SEM images of LLE aggregates formed after 10 h aggregation in the THF/HCl mixed solutions containing 0.1 (a), 0.2 (b), 0.3 (c), 0.4 (d) and 0.5 g/L (e) LLE
2.2 LLE在Q235钢表面化学吸附
2.2.1 AR-IR和XPS键合态分析
图3为LLE和吸附了LLE (聚集时间为10 h,0.4 g/L) 钢样品表面FT-IR和ATR-IR光谱分析结果。在图3a中,位于3374 cm-1附近的强吸收带是由于O-H的伸缩振动,而位于2930 cm-1处的吸收带可能是C-H伸缩振动。处在1616.9 cm-1处的峰是由于C=O键的伸缩振动,而1459.2 cm-1位置的峰则是由于C-N键的伸缩振动。C-O伸缩振动峰大约位于1066.4 cm-1处。吸附了LLE的ATR-IR光谱图如图3b所示,虽然吸附在钢片样品上的LLE呈现出相似的FT-IR光谱,但可以看出吸附于钢表面的LLE的反射红外图中C=O键和C-O键的特征峰减弱,同时C-N键的伸缩振动峰也呈现衰减,表明在被测钢样品上形成的LLE吸附膜可能主要由于C=O、C-O和C-N基团与金属化学螯合作用。
图3
图3

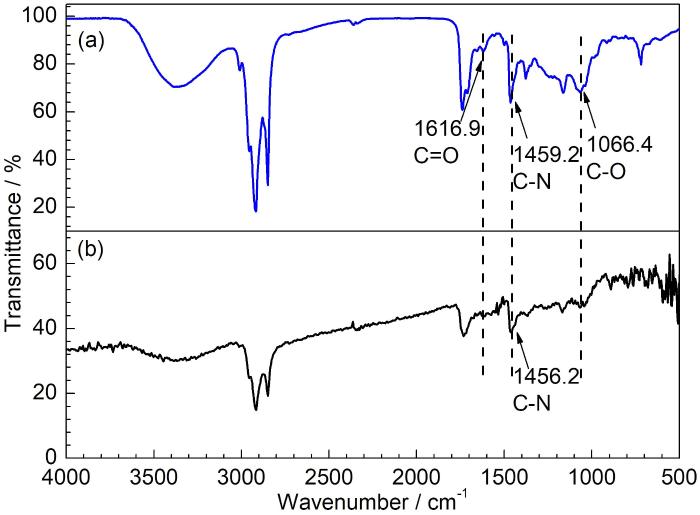

LLE的FT-IR谱及LLE聚集材料吸附在Q235钢表面的ATR-IR谱
Fig.3
FT-IR spectrum of original LLE powders (a) and ATR-IR of LLE aggregates adsorbed on Q235 steel (b)
图4和表1为在1.0 mol/L HCl水溶液浸泡后Q235钢表面的Fe 2p3/2 XPS图谱及其对应参数。如图4a所示,空白钢片表面Fe 2p的能级峰可拟合为位于710.38、711.66和712.81 eV的3个去卷积峰,分别对应于Fe2O3/Fe3O4、FeOOH和FeCl3的能级峰。但是吸附LLE的钢片,在酸溶液中浸泡后,钢表面的Fe 2p能级峰能够拟合为707.35、709.30和711.20 eV的3个去卷积峰,分别对应于Fe0、Fe2O3/Fe3O4和FeOOH的能级峰[27]。结果表明在盐酸水溶液中浸泡后,空白钢片上没有发现零价态铁,而吸附了LLE聚集材料的钢片表面有零价态铁的,且没有检测FeCl3。上述表明钢片表面上吸附LLE可以有效地抑制铁的氧化。
图4
图4

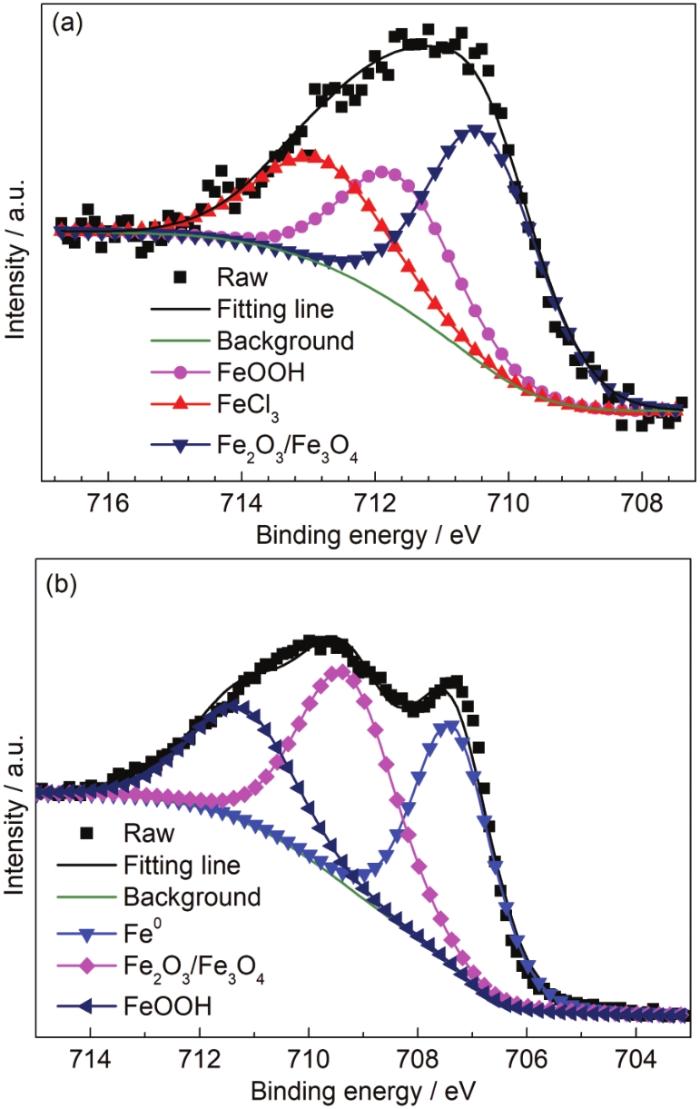

在1.0 mol/L HCl水溶液浸泡后Q235钢表面的Fe 2p3/2 XPS图谱
Fig.4
XPS fine spectra of Fe 2p3/2 on Q235 steel samples without (a) and with (b) LLE-aggregation treatment after immersion in HCl solution
表1 空白以及吸附了LLE聚集材料的Q235钢在1.0 mol/L盐酸溶液浸泡后表面Fe 2p XPS分析结果
Table 1
Sample | Chemistry state | Binging energy / eV | FWHMs / eV |
---|---|---|---|
Cu-Bare | Fe2O3/Fe3O4 | 710.38 | 2.02 |
FeOOH | 711.66 | 2.02 | |
FeCl3 | 712.81 | 2.43 | |
Cu-LLE aggregates | Fe0 | 707.35 | 1.75 |
Fe2O3/Fe3O4 | 709.30 | 2.10 | |
FeOOH | 711.20 | 2.25 |
图5
图5
Q235钢表面的C 1s XPS图谱
Fig.5
XPS fine spectra of C 1s on the surfaces of Q235 steel samples without (a) and with (b) LLE aggregat-ion treatment
表2 空白以及吸附了LLE聚集材料的Q235钢表面C 1s的XPS分析结果
Table 2
Sample | Chemistry state | Binging energy eV | FWHMs eV |
---|---|---|---|
Cu-Bare | C-C/C=C | 285.10 | 1.20 |
C-O | 286.56 | 1.20 | |
C=O | 288.82 | 1.20 | |
Cu-LLE aggregates | C-C/C=C | 284.90 | 1.05 |
C-O | 286.20 | 0.90 | |
C-N | 286.80 | 1.00 | |
C=O | 288.75 | 0.95 |
图6
图6
吸附LLE聚集材料的Q235钢表面的N 1s XPS精细谱
Fig.6
XPS fine spectra of N 1s on the surface of Q235 steel adsorbed with LLE aggregates
表3 吸附了LLE聚集材料的Q235钢片表面N 1s的XPS分析结果
Table 3
Sample | Chemistry state | Binging energy eV | FWHMs eV |
---|---|---|---|
Cu-LLE aggregates | C-N | 398.80 | 0.95 |
N-Fe | 399.24 | 1.10 |
2.2.2 SEM和AFM表面形貌分析
图7
图7

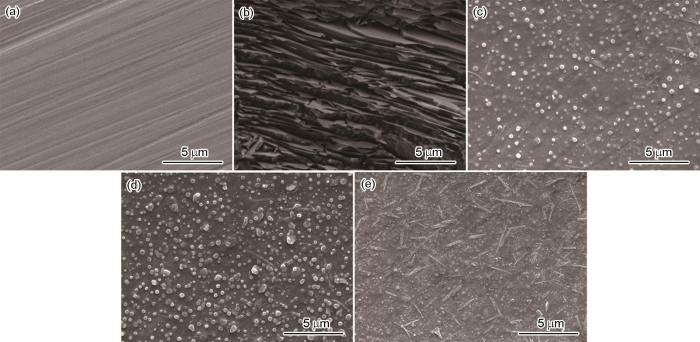

不同表面处理状态的Q235钢在1 mol/L HCl溶液中浸泡6 h后的表面SEM形貌
Fig.7
SEM surface micrographs of Q235 steel samples with different surface treatments after immersion for 6 h in 1 mol/L HCl solution: bare (a), polishing (b), and aggregation of 0.3 (c), 0.4 (d) and 0.5 g/L (e) LLE
图8
图8
空白和吸附了不同浓度LLE的Q235钢在1 mol/L盐酸溶液中浸泡后的三维AFM图像
Fig.8
AFM micrographs (a-c) and (d-f) the corresponding height profiles of polished Q235 steel samples without (a, d, b, e) and with (c, f) LLE aggregation before (a, d) and after (b, c, e, f) immersion in 1 mol/L HCl solution for 30 min
2.2.3 Q235钢表面接触角
图9
图9

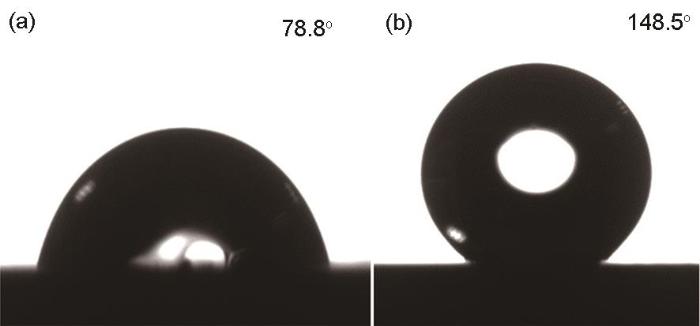

Q235钢表面的接触角
Fig.9
Contact angle diagrams of Q235 steel samples with-out (a) and with (b) LLE aggregates
2.3 电化学分析
图10为空白和吸附了LLE的Q235钢电极在1 mol/L盐酸溶液中的动电位极化曲线。可以观察到,随着LLE浓度的增大,吸附LLE的电极曲线下移,同时斜率发生变化,说明在添加了缓蚀剂的腐蚀介质中电极的阳极溶解以及阴极析氢反应得到控制。极化曲线都是近似平行的,表示LLE虽然抑制了反应活性,但并未改变析氢反应机制。
图10
图10

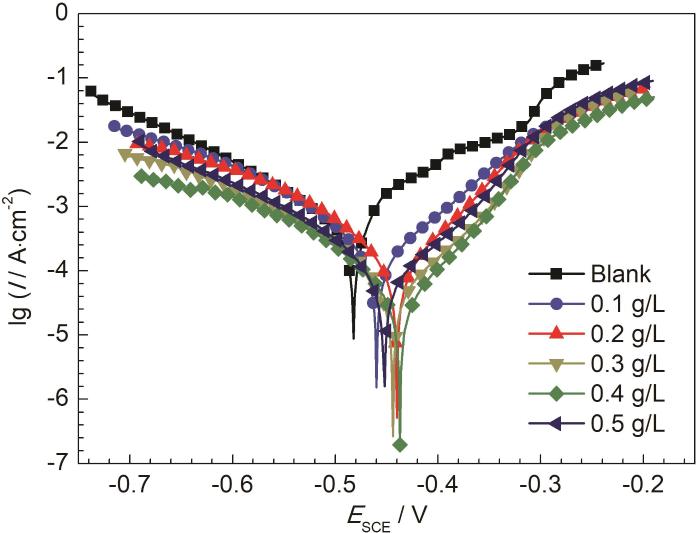

吸附了不同浓度LLE聚集材料的Q235钢电极在1 mol/L HCl溶液中的动电位极化曲线
Fig.10
Potentiodynamic polarization curves of Q235 steel electrodes adsorbed with different concentrations of LLE aggregates in 1 mol/L HCl solution
随着LLE浓度由0.1 g/L增加到0.4 g/L,阴极和阳极的电流密度均降低,缓蚀效率增大。尤其是阳极分支的减少更为明显。所以LLE对阳极溶解反应的控制更为显著。此外,与空白对比,LLE聚集材料吸附钢电极的腐蚀电位值 (Ecorr) 差值小于85 mV,这表明LLE是一种“阴极-阳极”的混合型缓蚀剂[32]。
从表4电化学参数可以看出,在LLE的浓度为0.4 g/L时,腐蚀电流密度减小到极小值,缓蚀效率达到极大值为93.14%。说明随着LLE的浓度由0.1 g/L增加到0.4 g/L,钢电极上保护层变得坚固致密,因此0.4 g/L的LLE可以更有效地保护金属。然而,随着LLE浓度增加到0.5 g/L,缓蚀效率值呈下降趋势。这可能是因为LLE发生团聚,空间位阻变大,使其不能有效地吸附于钢表面。
表4 吸附了不同浓度LLE聚集材料的Q235钢电极在1 mol/L HCl溶液中的动电位极化曲线参数
Table 4
Copper electrode | C / g·L-1 | Ecorr / V/SCE | Icorr / μA·cm-2 | βc / mV·dec-1 | βa / mV·dec-1 | ηj / % |
---|---|---|---|---|---|---|
Blank | --- | -0.482 | 718.9 | -111.062 | 112.931 | --- |
LLE-aggregates | 0.1 | -0.460 | 185.5 | -110.571 | 68.552 | 74.20 |
0.2 | -0.440 | 129.9 | -112.057 | 57.251 | 81.93 | |
0.3 | -0.444 | 75.48 | -106.872 | 56.038 | 89.50 | |
0.4 | -0.437 | 49.32 | -112.410 | 47.152 | 93.14 | |
0.5 | -0.452 | 69.86 | -112.841 | 56.386 | 90.28 |
在室温条件下,对吸附了不同浓度的LLE的Q235钢片在1 mol/L HCl溶液中进行了电化学阻抗测试,Nyquist图和Bode图分别列于图11中。Nyquist曲线的容抗弧通常被解释为是由电荷转移电阻和双电层的电容造成的,这说明在HCl溶液中,LLE吸附层增加电荷转移电阻。同时由于工作电极表面粗糙度不同,不均一而引起的频率弥散也是Nyquist曲线偏离标准半圆的原因。LLE吸附使得Nyquist曲线的阻抗弧直径逐渐变大,表明随着LLE在电极表面吸附的增加,电荷转移的难度不断增加,从而使得腐蚀减速。一般认为带电粒子在电极表面吸附产生的“弛豫现象”和缓蚀剂分子的吸附-脱吸现象是导致低频区感抗弧出现的原因[33,34]。吸附LLE后的Nyquist曲线半圆的直径逐渐变大,表明碳钢表面的LLE吸附膜具有抗腐蚀性能。在阻抗谱图低频确实有感抗特征,但感应元素 (L和RL) 的数值非常小,对缓蚀效率几乎没有影响,故本文中用单容抗等效电路进行拟合。
图11
图11
吸附了不同浓度LLE聚集材料的Q235钢电极在1 mol/L HCl溶液中的Nyquist和Bode图
Fig.11
Nyquist (a) and Bode (b, c) plots of Q235 steel electrodes adsorbed with different concentrations of LLE aggregates
图11a为吸附了不同浓度LLE的Q235钢电极在1 mol/L HCl溶液中的Nyquist图,半圆的直径随着LLE浓度的增大而增大,缓蚀效率也逐渐增大。但是当浓度为0.5 g/L时直径变小,其缓蚀效率也变小。结果表明,浓度为0.4 g/L时的LLE在金属表面形成的保护膜更坚固致密一些,可以更有效的保护金属钢。图11b和c给出了吸附了不同浓度LLE的钢电极的Bode图。由Bode图得到,LLE浓度的增加其阻抗值也增大,在LLE浓度为0.4 g/L时阻抗值最大。同样地,在频率范围内的最大相位角随着LLE浓度的增加而增加 (0.1~0.4 g/L)。然而,当浓度增大到0.5 g/L时,阻抗和相角值均减小。
图12
图12

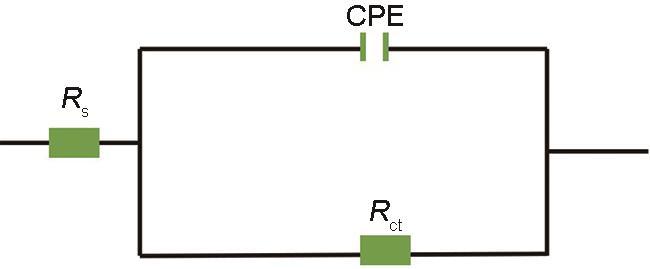

不同表面状态的钢电极的电化学阻抗谱拟合等效电路图
Fig.12
Equivalent circuit diagram for fitting EIS of various Q235 steel electrodes
表5 吸附了不同浓度LLE聚集材料的Q235钢电极在1 mol/L HCl溶液中的电化学阻抗参数
Table 5
Copper electrode | C / g·L-1 | Rs / Ω·cm2 | Rct / Ω·cm2 | Cdl / μF·cm-2 | n | ηj / % | Χ 2 / 103 |
---|---|---|---|---|---|---|---|
Blank | --- | 0.6056 | 42.73 | 110.275 | 0.9697 | --- | 5.56 |
LLE-aggregates | 0.1 | 1.456 | 147.4 | 61.110 | 0.8635 | 71.01 | 2.91 |
0.2 | 1.095 | 216.3 | 49.130 | 0.8641 | 80.25 | 1.47 | |
0.3 | 1.139 | 410.2 | 42.859 | 0.8471 | 89.58 | 9.05 | |
0.4 | 1.309 | 548.3 | 34.606 | 0.8139 | 92.21 | 3.66 | |
0.5 | 1.093 | 345.4 | 46.345 | 0.8769 | 87.63 | 1.19 |
根据
其中,n是偏差弥散指数,j是虚根,Y是比例因子,ω是角频率。
表5为吸附了不同浓度LLE的Q235钢电极在1 mol/L HCl溶液中的电化学阻抗参数。表中列出了电荷转移电阻 (Rct)、溶液电阻 (Rs)、感应元素 (L和RL) 和双层电容 (Cdl) 等参数。根据方程 (4) 可知介电常数减少或双电层厚度增加都将导致Cdl数值的减少。由于LLE在低碳钢表层的吸附,减少了暴露的电极面积,同时,由于LLE体积远大于水分子,而介电常数小于水分子,导致Cdl增大。因此从表5中发现LLE吸附浓度增加,Cdl的数值下降。然而,Rct值随着LLE浓度的增加而增加,在浓度为0.4 g/L时达到峰值,同时获得最大缓蚀效率 (548.3 Ω·cm2,92.21%)。但当LLE浓度逐渐增加到0.5 g/L时,聚集材料变成无序状态,对钢表面吸附变差,阻抗值也减小。
2.4 腐蚀/缓蚀机制分析
盐酸溶液里,钢的腐蚀过程可以用以下方程式解释[38]。
Fe的阳极溶解:
阴极析氢反应:
在受抑制的HCl溶液中,[Fe (0) Inh]配合物通过以下反应在金属表面平坦区域形成[39]:
带正电荷的金属表面的低洼区域吸附Cl-,由于LLE可以在酸性溶液中以质子化形式 (LLEH+) 与相应的缓蚀剂中性分子 (LLE) 平衡存在。缓蚀分子与Fe (0) 迅速作用,于未腐蚀区域长成保护层。特别是质子化的缓蚀剂分子LLEH+与Fe(II) 反应形成一层厚且具有保护作用的[FeCl-LLEH+]配合物。
上述实验证实了LLE在钢表面存在化学吸附,通过含C-杂键与铁进行化学螯合发生吸附,形成坚韧的有机保护膜。另一方面,由于氢键以及π-π的彼此作用等物理吸附使保护层更加稳固。因此,LLE的吸附层阻止了化学物质在铁表面和本体溶液界面上的扩散和电荷迁移,有效阻止阳极反应发生,并使析氢的阴极反应亦得到有效抑制。
3 结论
(1) 对荷花叶有效化学成分进行了提取,研究了荷花提取物 (LLE) 对Q235钢在盐酸介质中的缓蚀效应。表明LLE在THF/HCl (v/v,50/50) 混合水溶液中能够形成聚集材料。
(2) 在聚集时间10 h,LLE形成的聚集材料的形貌和尺寸达到稳定状态。所制备的LLE聚集材料可能通过含氮或氧杂原子与Fe进行化学络合,在钢片表面形成坚韧的吸附膜。
(3) 电化学测试表明LLE可以同时抑制阴极和阳极反应,且对阳极反应的抑制更为显著,在1 mol/L HCl溶液中表现出优异的缓蚀性能。
