无取向电工钢用磷酸盐系绝缘环保涂层的研制及性能研究

胡雄鑫, 张弦, 刘静, 吴开明, 林安

Development and Performance of Phosphate-based Protective Insulation Coating for Non-oriented Electrical Steel

HU Xiongxin, ZHANG Xian, LIU Jing, WU Kaiming, LIN An

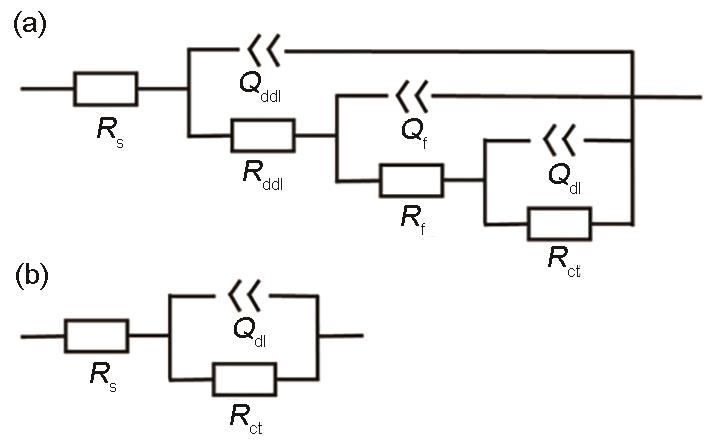

图7 拟合电化学阻抗谱的等效电路图

Fig.7 Equivalent circuit for fitting EIS: (a) sample A for 1, 2 and 4 h, (b) sample B, sample C for 1, 2, 4 and 6 h, sample D for 1, 2, 4, 6 and 12 h
