X65抗酸管线钢中非金属夹杂物和氢致开裂裂纹的分析及预测
Analysis and Prediction of Nonmetallic Inclusions and Their Effect on Hydrogen Induced Cracking Behavior of X65 Acid-resistant Pipeline Steel
X65抗酸管线钢中非金属夹杂物和氢致开裂裂纹的分析及预测 |
| 朱延山, 张继明, 武凤娟, 曲锦波 |
|
Analysis and Prediction of Nonmetallic Inclusions and Their Effect on Hydrogen Induced Cracking Behavior of X65 Acid-resistant Pipeline Steel |
| ZHU Yanshan, ZHANG Jiming, WU Fengjuan, QU Jinbo |

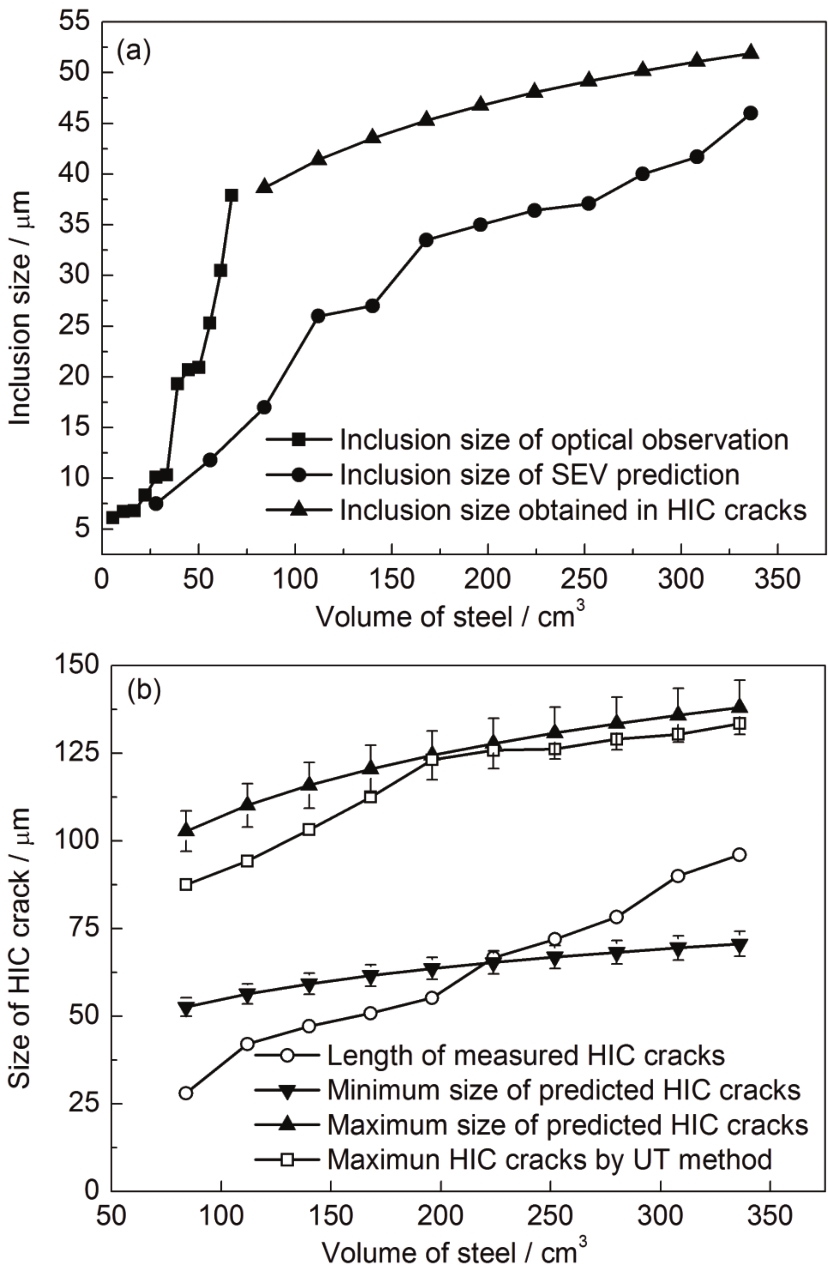

| 图3 不同体积X65管线钢中最大夹杂物尺寸以及HIC裂纹尺寸的预测与实际测量值对比 |
| Fig.3 Comparison between predicted and detected values for the sizes of maximum inclusions (a) and maximum HIC cracks (b) in X65 pipeline steel samples with different volumes |
|
|
