普碳钢表面锌防护层在青岛中港海水中耐蚀与防污损性能对比研究

马士德, 刘欣, 王在东, 任亚东, 邰余, 韩文, 段继周

Characterization of Seawater Corrosion Interface of Zinc Coated Steel Plate in Zhong-gang Harbor

MA Shide, LIU Xin, WANG Zaidong, REN Yadong, TAI Yu, HAN Wen, DUAN Jizhou

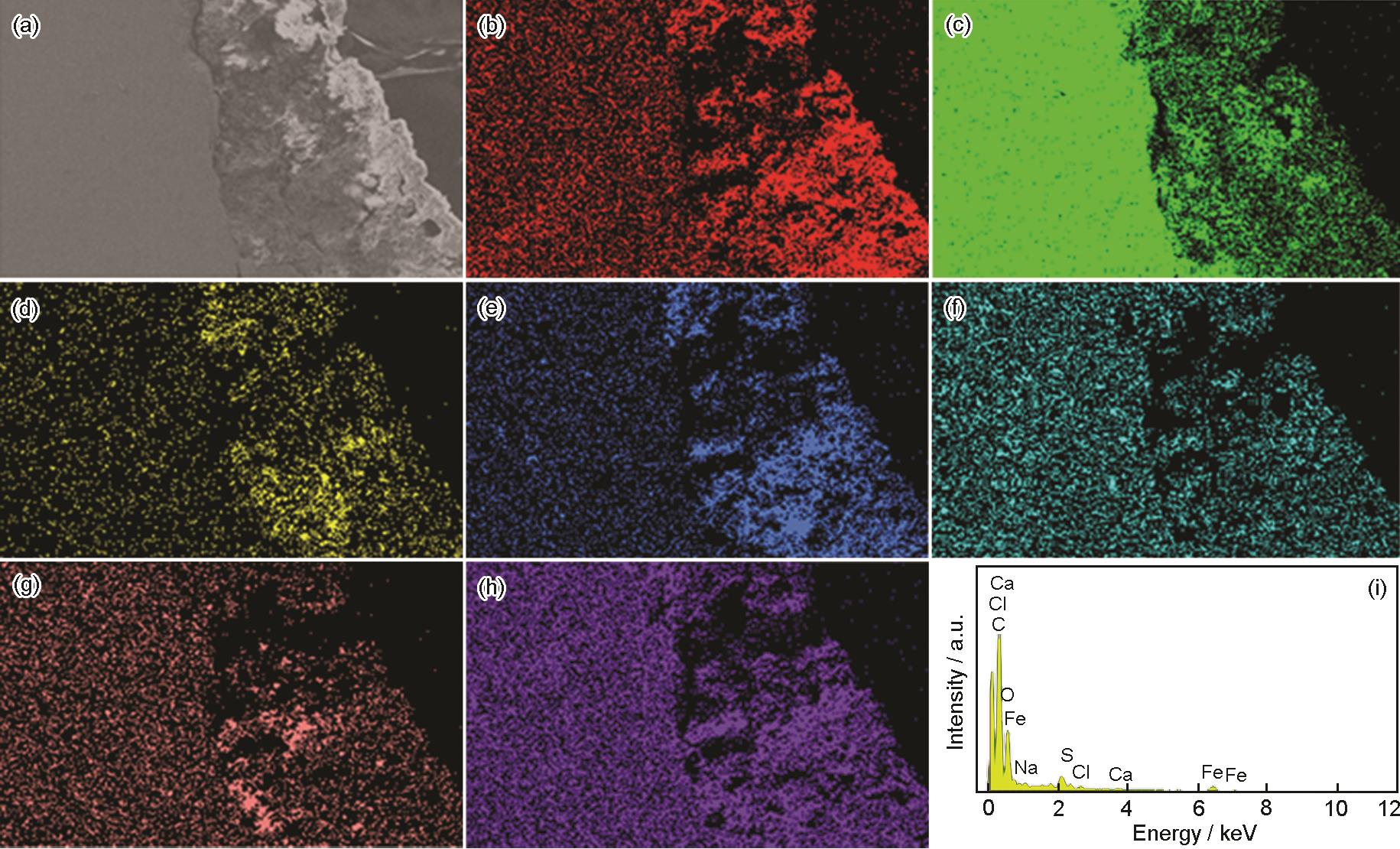

图8 富锌板断面腐蚀形貌，EDS分析及表面腐蚀产物EDS分析

Fig.8 SEM cross-sectional image (a) and EDS elemental mappings of C (b), Fe (c), Zn (d), Na (e), Cl (f), Al (g), O (h) of the corrosion product layer formed on zinc rich plate after exposure test and EDS analysis result of the corrosion products (i)
